Philips DVDR3545V/37 - Exploded Views

1-20-1 E9H90CEX

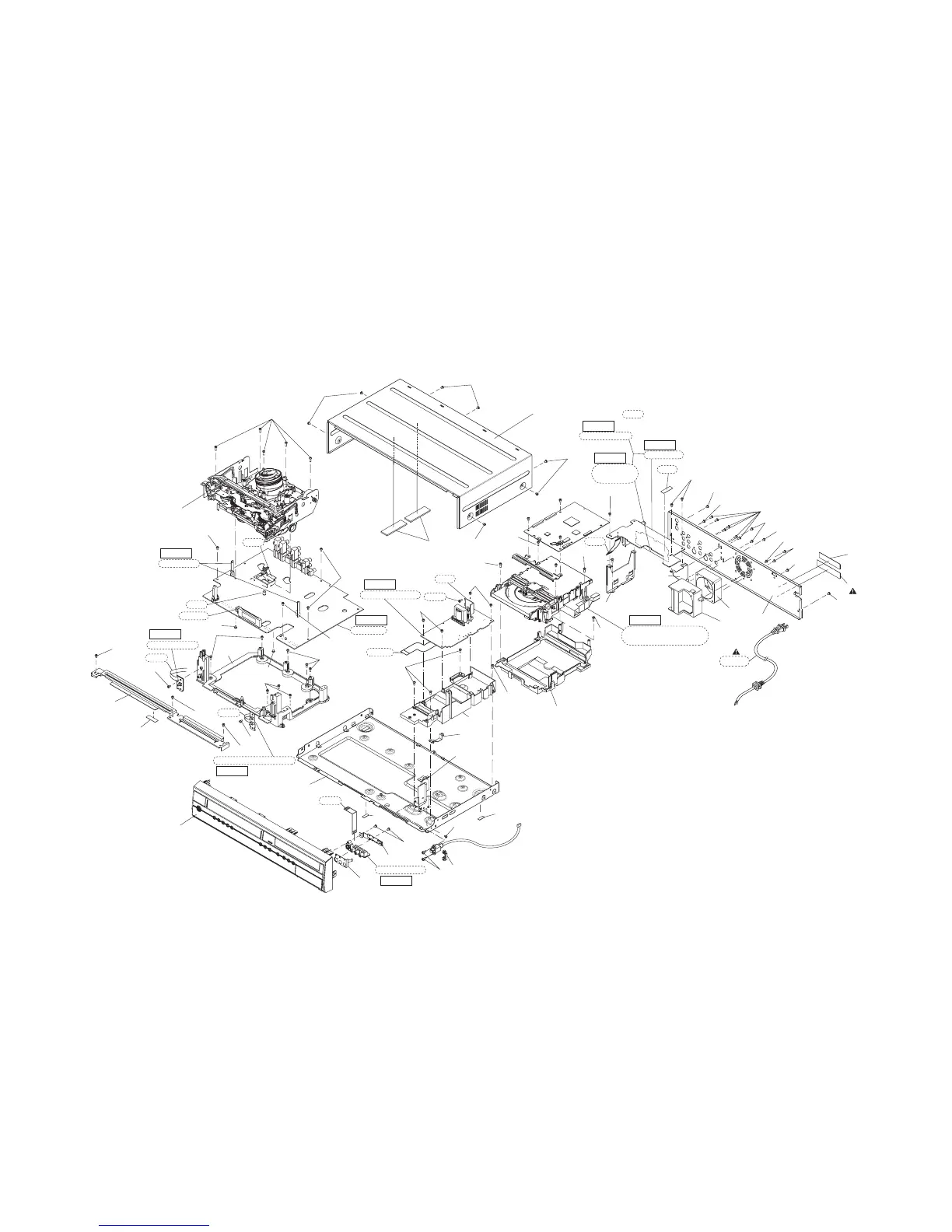

EXPLODED VIEWS
Cabinet
ASSY 2
ASSY 1a
ASSY 3a
ASSY 1d
ASSY 1b
ASSY 1c
ASSY 3b
ASSY 4
ASSY 4a
ASSY 4b
W101
W102
W003
W501
W1001
See Electrical Parts List
for parts with this mark.
A14
A10
A4
2B84
FM1001
2B80
2B18
2B79
2L111
2L111
2L111
2L043
2L044
A34
2L014
2L064
2L061
Front Jack CBA
2B59
2B13
2B39
A34
A3
2L013
2L054
DVD Open/Close SW CBA
2L030
2L033
2B17
2B14
1B1
2L017
2L017
2L017
2B1
2L021
2L022
2B16
2L033
2L071
2L011
2B2
2B31
Power SW CBA
2L045
2L052
2L045
A1X
2B76
2B10
2B4
2B3
2L043
2L044
2L019
2L111
2L011
2L033
2L068
2L082
2L081
2L062
2L069
2L081
2L075
2L075
2L077
2L068
2L011
2L011
A2
2B86
Tuner Assembly
2L081
Sensor CBA
AC1001
DVD Mechanism &
DVD Main CBA Assembly
Main CBA
Power Supply CBA
RS1501
Tuner CBA
DTV Module
CBA Unit
