CABINET DISASSEMBLY INSTRUCTIONS

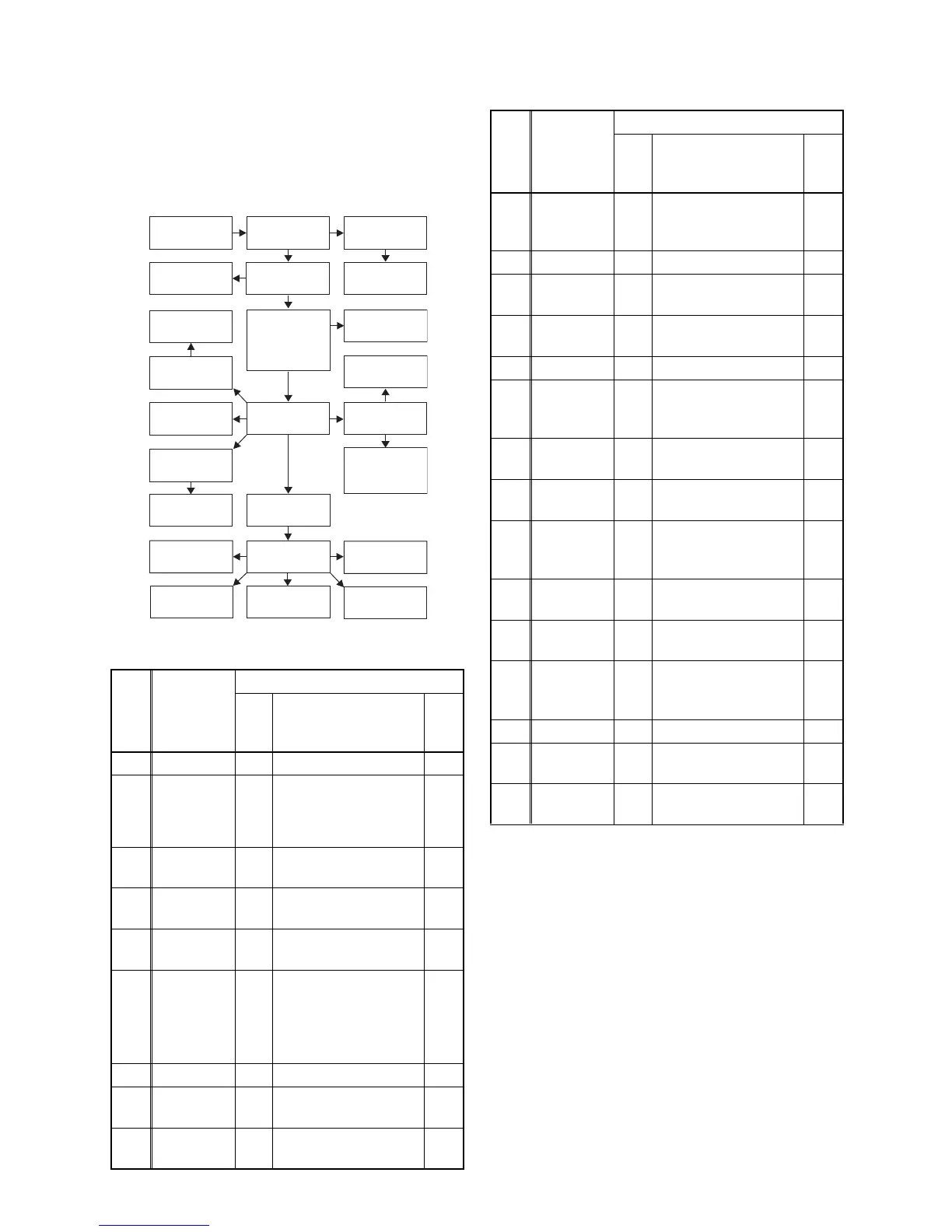

1. Disassembly Flowchart
This flowchart indicates the disassembly steps to gain
access to item(s) to be serviced. When reassembling,
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally.
2. Disassembly Method
Note:
(1): Identification (location) No. of parts in the figures
(2): Name of the part
(3): Figure Number for reference
(4): Identification of parts to be removed, unhooked,
unlocked, released, unplugged, unclamped, or
desoldered.
P=Spring, L=Locking Tab, S=Screw,
CN=Connector
*=Unhook, Unlock, Release, Unplug, or Desolder
e.g. 6(S-1) = six Screws (S-1),
5(L-1) = five Locking Tabs (L-1)
(5):Refer to “Reference Notes.”
ID/
LOC.
No.
PART
REMOVAL
Fig.
No.
REMOVE/*UNHOOK/
UNLOCK/RELEASE/
UNPLUG/DESOLDER
Note
[1] Top Cover D1 7(S-1) ---
[2]
Front
Assembly
D2
*5(L-1), *3(L-2),
*CN2609
1
1-1
1-2
1-3
[3]
Front
Bracket
D2 2(S-2), (S-3) ---
[4]
Jack
Bracket
D3 2(S-4) ---
[5]
Front Jack
CBA
D3 Jack Earth Plate ---
[6]
DVD
Mechanism
& DVD
Main CBA
Assembly
D4
4(S-5a), (S-5b),
*CN101, *CN701,
*CN502, *CN901
---
[7] Dust Cover D4 ---------- ---
[8]
Rear Panel
Unit
D5
6(S-6), 3(S-7), (S-8),
*CN1102
---
[9] Tuner CBA D5
3(S-9), CN2610,
CN2611
---
[1] Top Cover
[7]
Dust Cover
[14] Rear
Panel
[2] Front
Assembly
[3] Front
Bracket
[4] Jack
Bracket
[5] Front
Jack CBA
[6] DVD
Mechanism
& DVD Main
CBA Assembly
[8] Rear
Panel Unit
[15] Power
Supply CBA
[12] DC
Fan Motor
[9] Tuner CBA
[16] PCB
Holder
[13] D/T
Bracket R
[10] DTV
Module
CBA Unit
[19] Deck
Assembly
[23] Deck
Pedestal
[21] DVD Open
/Close SW CBA
[18] VCR
Chassis Unit
[17] D/T
Bracket L
[20] Power
SW CBA
[22] Main
CBA
[24] Front
Bracket R
[11] Fan
Holder
[10]
DTV
Module
CBA Unit
D5 ---------- ---
[11] Fan Holder D6 3(S-10) ---
[12]
DC Fan
Motor
D6 ---------- ---
[13]
D/T Bracket
R
D6 2(S-11) ---
[14] Rear Panel D6 ---------- ---
[15]
Power
Supply
CBA
D7 4(S-12) ---
[16]
PCB
Holder
D7 4(S-13) ---
[17]
D/T Bracket
L
D8 (S-14) ---
[18]
VCR
Chassis
Unit
D8
5(S-15), 3(S-16a),
(S-16b), (S-17),
(S-18)
---
[19]
Deck
Assembly
D9
(S-19), (S-20),
Desolder
2
3
[20]
Power SW
CBA
D9 Desolder ---
[21]
DVD Open/
Close SW
CBA
D9 Desolder ---
[22] Main CBA D9 ---------- ---
[23]
Deck
Pedestal
D10 8(S-21) ---
[24]
Front
Bracket R
D10
(S-22), 2(S-23),
DV Earth Plate
---
↓
(1)
↓
(2)
↓
(3)
↓
(4)
↓
(5)
ID/
LOC.
No.
PART
REMOVAL
Fig.
No.
REMOVE/*UNHOOK/
UNLOCK/RELEASE/
UNPLUG/DESOLDER
Note
