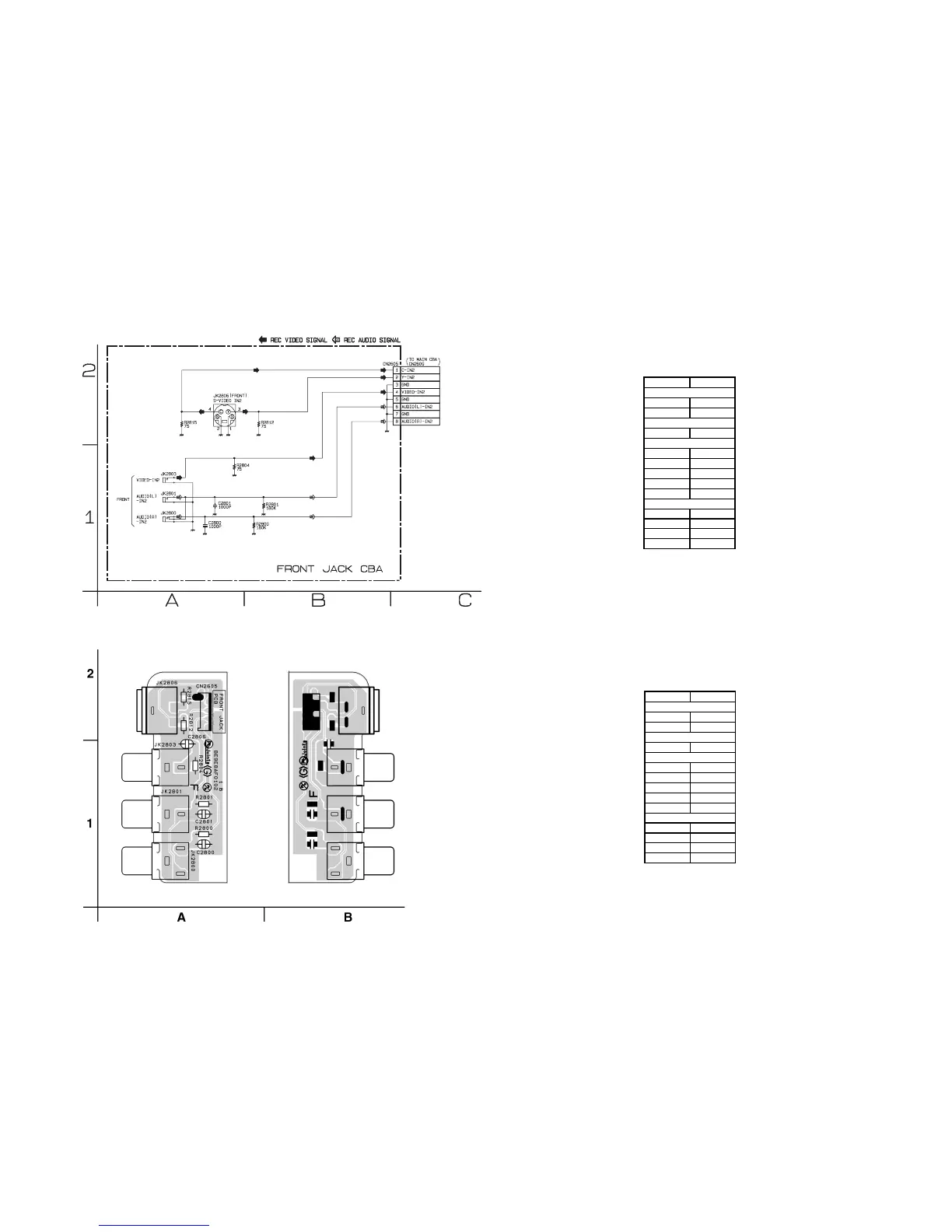

Philips DVDR3545V/37 - Front Jack Schematic Diagram

BE9E8AF01021B
Front Jack CBA Top View
1-13-22
Front Jack CBA
Parts Location Guide
Ref No. Position
C2800 A-1
C2801 A-1
CN2605 A-2
R2800 A-1
R2801 A-1
R2804 A-1
R2812 A-2
R2815 A-2
JK2800 A-1
JK2801 A-1
JK2803 A-1
JK2806 A-2
CAPACITORS
CONNECTOR
RESISTORS
MISCELLANEOUS
Front Jack Schematic Diagram
Parts Location Guide
Ref No. Position
C2800 A-1
C2801 A-1
CN2605 C-2
R2800 B-1
R2801 B-1
R2804 A-1
R2812 B-2
R2815 A-2
JK2800 A-1
JK2801 A-1
JK2803 A-1
JK2806 A-2
CAPACITO RS
CONNECTOR
RESISTORS
MISCELLANEOUS
E9H90SCFJ
Front Jack Schematic Diagram
Front Jack CBA Bottom View
