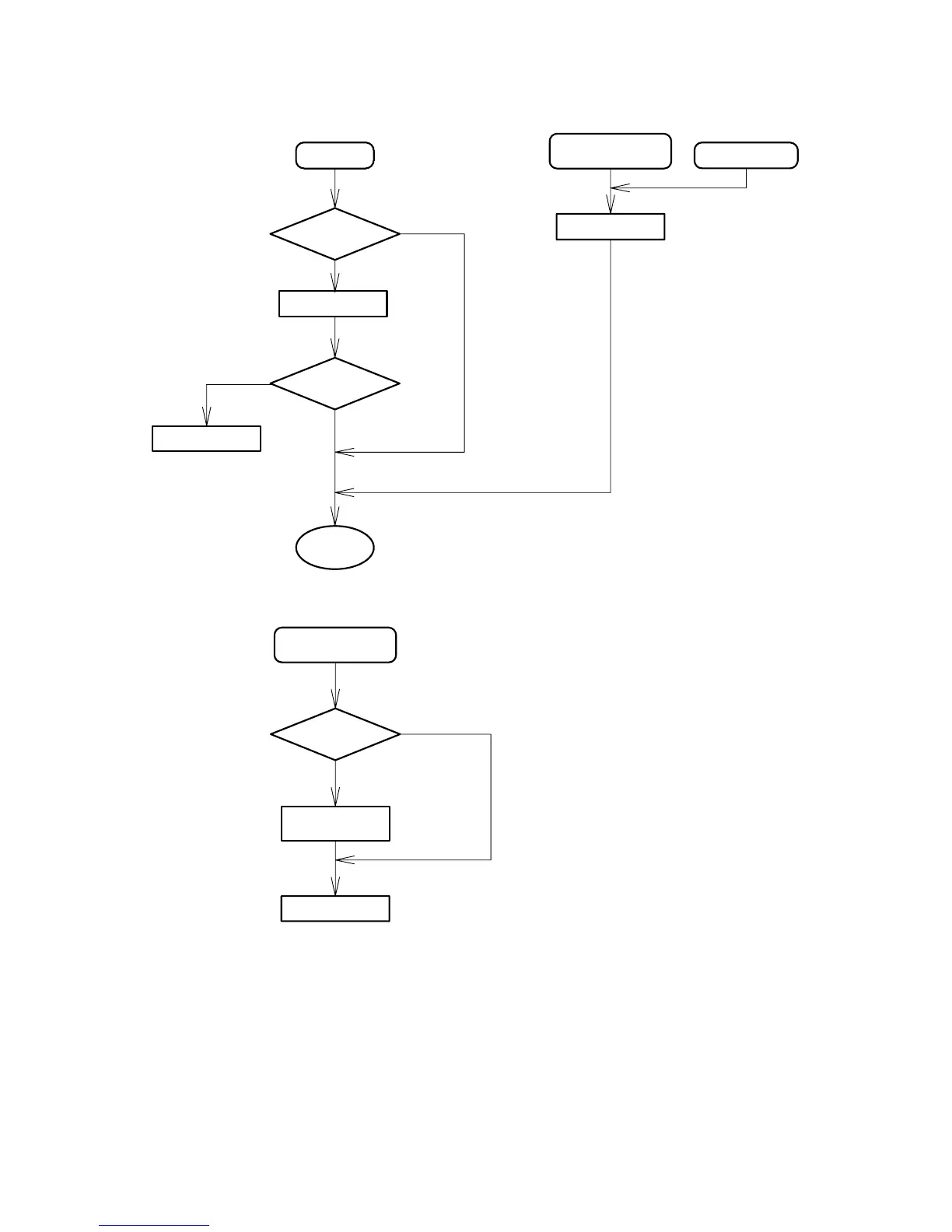

SYSTEM CONTROL TIMING CHARTS
INNER-SW
open?
INNER-SW
open?
To disc
distinction
Power on
Ye s
Ye s
No
No
Tray insertion
Tray insertion
[ Tray Open ]
button is pressed.
[ Tray Open ]
button is pressed.
Tray ejection
Tray ejection
SLED
moves
Push Close
INNER-SW
open?
Ye s
No
