Philips DVDR3545V/37 - Page 64

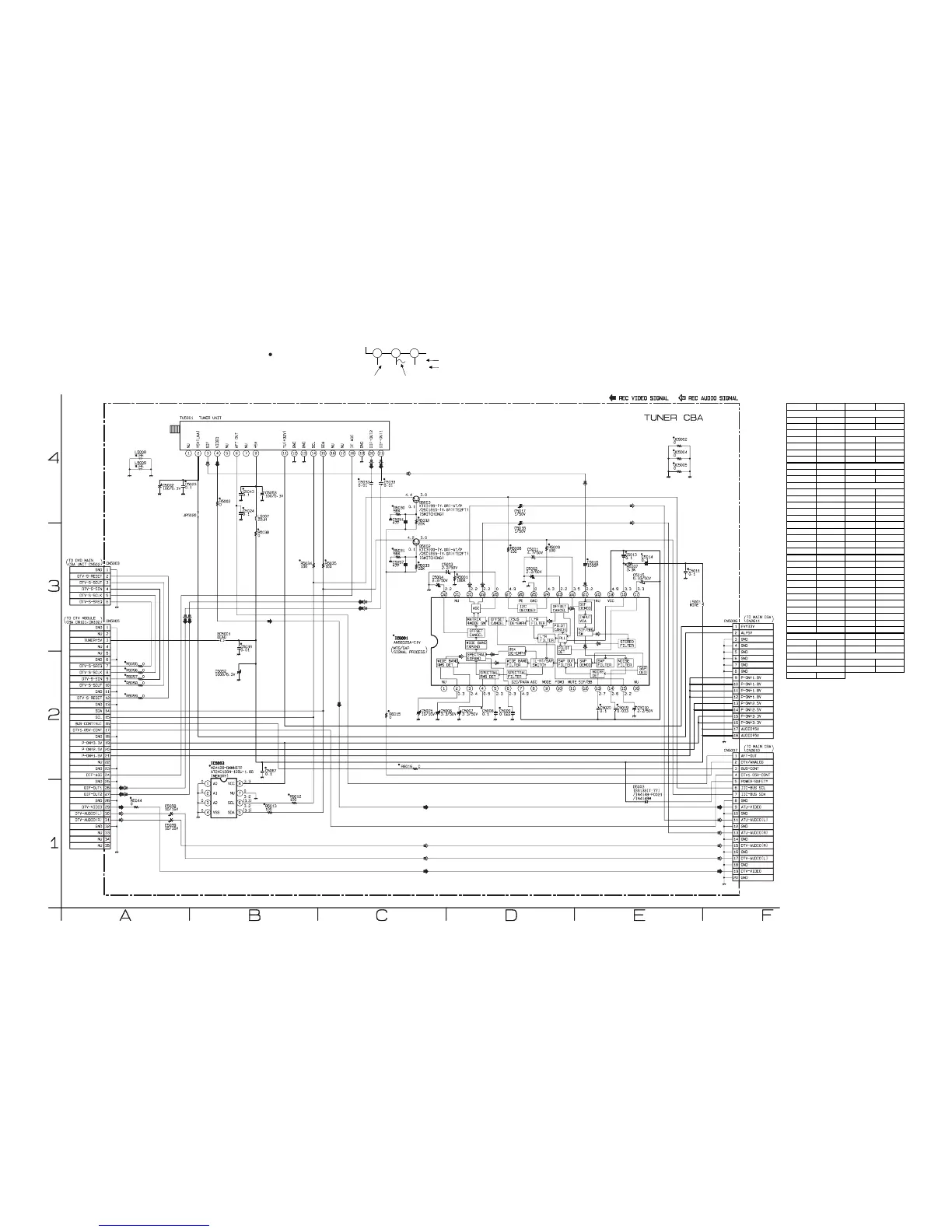

Tuner Schematic Diagram
E9H90SCT
1-13-23
“ “ = SMD
2
3
1
5.0
(2.5)
5.0
The same voltage for
both PLAY & REC modes
Indicates that the voltage
is not consistent here.
PLAY mode
REC mode
(Unit: Volt)
Tuner Schematic Diagram Parts Location Guide
Ref No. Pos ition Ref No. Pos itio n
C5001 D- 3 IC5001 C-3
C5002 D- 3 IC5003 B-1
C5003 D- 3
C5004 C-3 L5001 E-3
C5005 C-2 L5007 B-4
C5006 C-2 L5008 A-4
C5007 C-2 L5009 A-4
C5008 C- 2
C5009 C-2 Q5002 C-3
C5010 E-2 Q5003 C-4
C5011 E-3
C5013 E-3 J C5002 E-4
C5014 E-3 J C5004 E-4
C5015 E-3 J C5005 E-4
C5016 E-3 R5001 D-3
C5017 D-4 R5002 B-4
C5018 D-4 R5007 E-3
C5019 E-2 R5008 D-3
C5020 E-2 R5009 D-3
C5022 A-4 R5012 B-1
C5023 A-4 R5013 B-1
C5024 B-4 R5030 C-4
C5032 C-4 R5031 C-3
C5033 C-4 R5032 C-4
C5039 B-3 R5033 C-3
C5043 B-4 R5034 B-3
C5051 C-4 R5035 C-3
C5052 B-2 R5038 B-3
C5053 B-4 R5044 A-1
C5057 C-3 R5055 A-2
C5058 A-1 R5056 A-2
C5059 A-1 R5057 A-2
C5067 B-2 R5058 A-2
R5059 A-2
CN5003 A-3 R6015 C-2
CN5005 A-3 R6016 C-2
CN5006 F-3
CN5007 F-2 BC5001 B-3
TU5001 A-4
D5003 E-1
CAPACITORS
RESISTORS
MISCELLANEOUS
CONNECTORS
DIODE
ICS
COILS
TRANSISTORS
