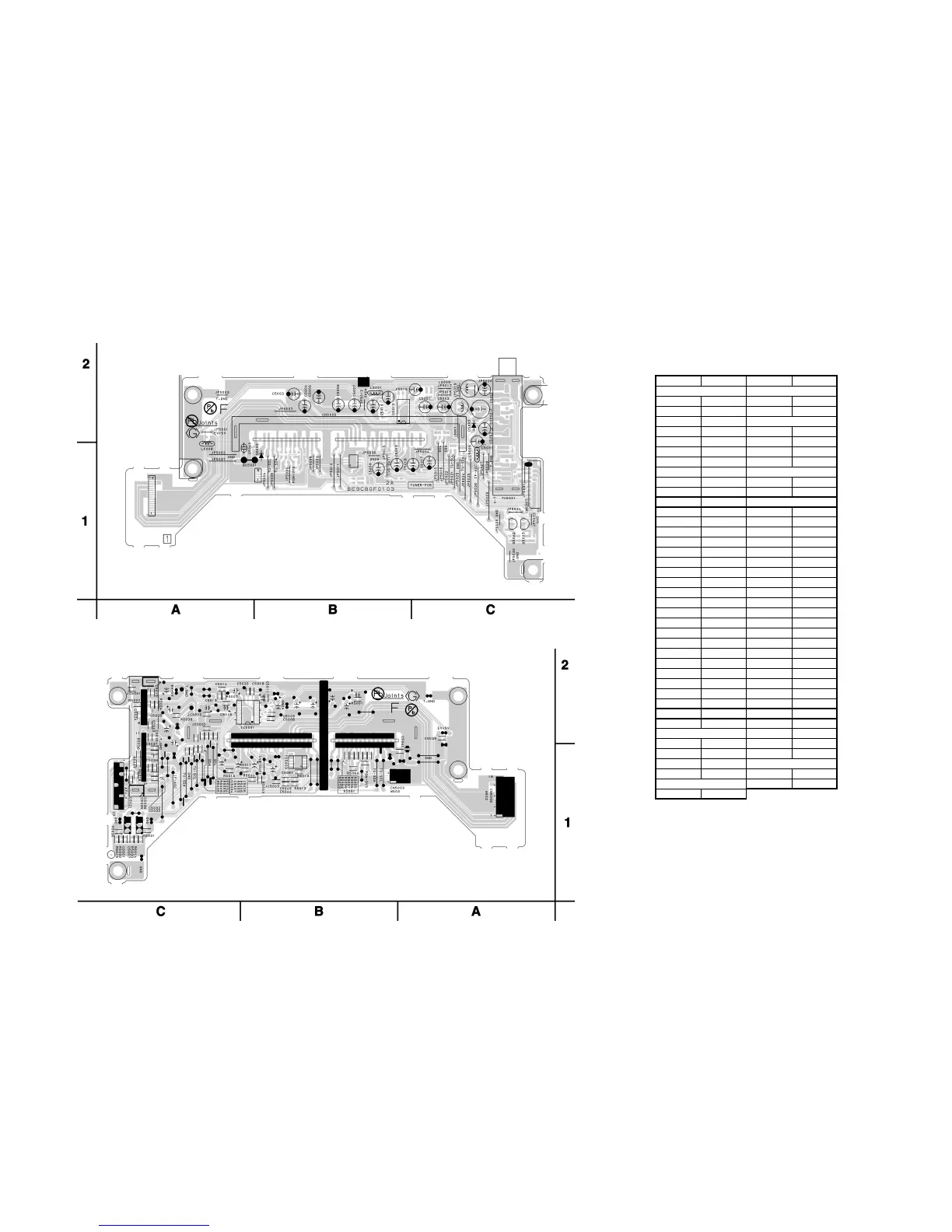

Tuner CBA Top View
1-13-24
Tuner CBA Bottom View
Tuner CBA Parts Location Guide
Ref No. Position Ref No. Position
C5001 C-2 IC5001 B-2
C5002 C-2 IC5003 B-1
C5003 B-2
C5004 B-2 L5001 B-2
C5005 B-2 L5007 C-2
C5006 B-2 L5008 A-1
C5007 B-2 L5009 C-1
C5008 B-2
C5009 B-2 Q5002 C-1
C5010 B-2 Q5003 C-1
C5011 B-2
C5013 C-2 JC5002 C-2
C5014 C-2 JC5004 C-1
C5015 B-2 JC5005 C-2
C5016 C-2 R5001 B-2
C5017 C-1 R5002 C-2
C5018 B-1 R5007 C-2
C5019 B-2 R5008 B-1
C5020 C-2 R5009 C-1
C5022 C-2 R5012 B-1
C5023 C-2 R5013 B-1
C5024 C-2 R5030 C-1
C5032 C-1 R5031 C-1
C5033 C-1 R5032 C-1
C5039 A-2 R5033 C-1
C5043 C-2 R5034 C-1
C5051 C-1 R5035 C-1
C5052 C-2 R5038 C-2
C5053 C-2 R5044 B-1
C5057 C-1 R5055 B-1
C5058 B-1 R5056 B-1
C5059 B-1 R5057 B-1
C5067 B-1 R5058 B-1
R5059 B-1
CN5003 B-1 R6015 C-1
CN5005 B-2 R6016 C-1
CN5006 A-1
CN5007 C-1 BC5001 A-1
TU5001 C-1
D5003 C-2
RESISTORS
MISCELLANEOUS
CONNECTORS
DIODE
ICS
COILS
TRANSISTORS
CAPACITORS
