Philips DVDR3575H - Connection to an Audio System

20 EN20 EN
IN
OUT
OUT
VIDEO
OUT
Y
P R /C R
P B /C B
R
L
R
L
VIDEO
IN
S-VIDEO
S-VIDEOANTENNA
COAXIAL OPTICAL
AV IN
AV OUT
COMPONENT
VIDEO OUTPUT
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
IN
HDMI OUT
R
L
AV OUT
AUDIO IN
LR
IN
OUT
OUT
VIDEO
OUT
Y
P R /C R
P B /C B
R
L
R
L
VIDEO
IN
S-VIDEO
S-VIDEOANTENNA
COAXIAL OPTICAL
AV I N
AV OUT
COMPONENT
VIDEO OUTPUT
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
IN
HDMI OUT
COAXIAL
DIGITAL AUDIO INPUT
OPTICAL
DIGITAL AUDIO INPUT
COAXIAL OPTICAL
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
or

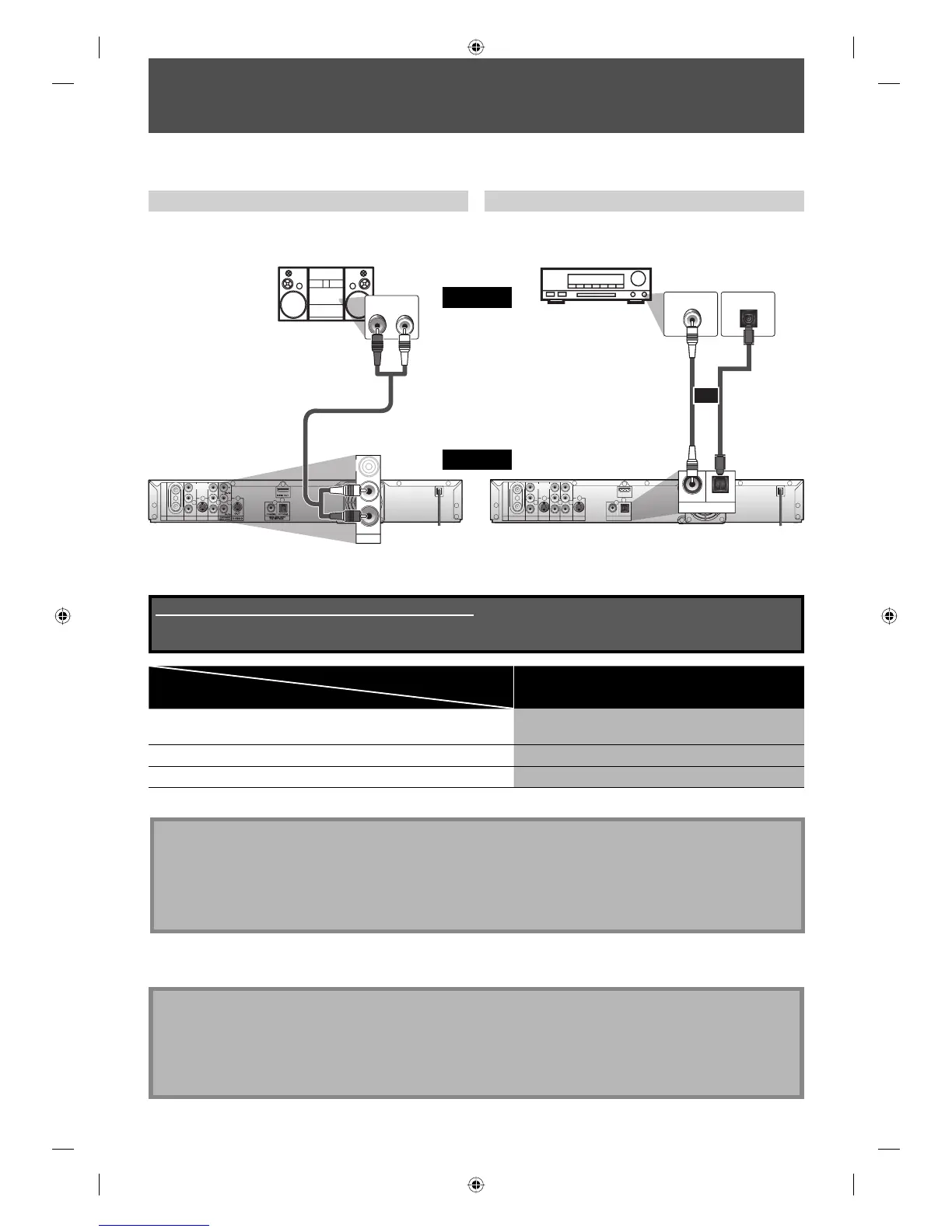

CONNECTION TO AN AUDIO SYSTEM
• When you change the connections, all devices should be turned off.
• Refer to the manual accompanying external devices for more information.
stereo system
audio
analog audio
input jacks
RCA audio cable
AV OUT
2 Channel Analog Audio Connection Digital Audio Connection
Dolby Digital decoder, MD deck or DAT deck
digital audio coaxial / optical
input jacks
digital audio coaxial / optical
cable
DIGITAL AUDIO OUTPUT
this unit
Note
• The audio source on a disc in a Dolby Digital multi channel surround format cannot be recorded as digital sound
by an MD or DAT deck.
• By connecting this unit to a Dolby Digital decoder, you can enjoy high-quality Dolby Digital multi channel
surround sound as heard in the movie theaters.
• Playing back a DVD using incorrect settings may generate noise distortion and may also damage the speakers.
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
Please purchase the rest of the necessary cables at your local store.
Setting
Setup >General Setting >Playback >Disc Audio >
Dolby Digital
Connection
If output is Dolby Digital encoded audio, connect to a Dolby
Digital decoder.
Stream
Connecting to an MD deck or DAT deck. PCM
If not connected to any external devices. PCM
* To complete these settings, refer to page 105.
Optical cable (commercially available)
• Optical cable (commercially available) may be damaged when bent at sharp angles. Ensure cables are coiled in
loops with a diameter of 6 inches (15cm) or more when storing them.
• Use a cable which is 9.8 feet (3m) or shorter.
• Insert cable plugs firmly into the connectors when making connections.
• If a plug has dust or is dirty, clean it with a soft cloth before inserting it into a connector.
