Philips DVP620VR/00 - DECK EXPLODED VIEWS

2-6-1 U29P4HDEX
DECK EXPLODED VIEWS

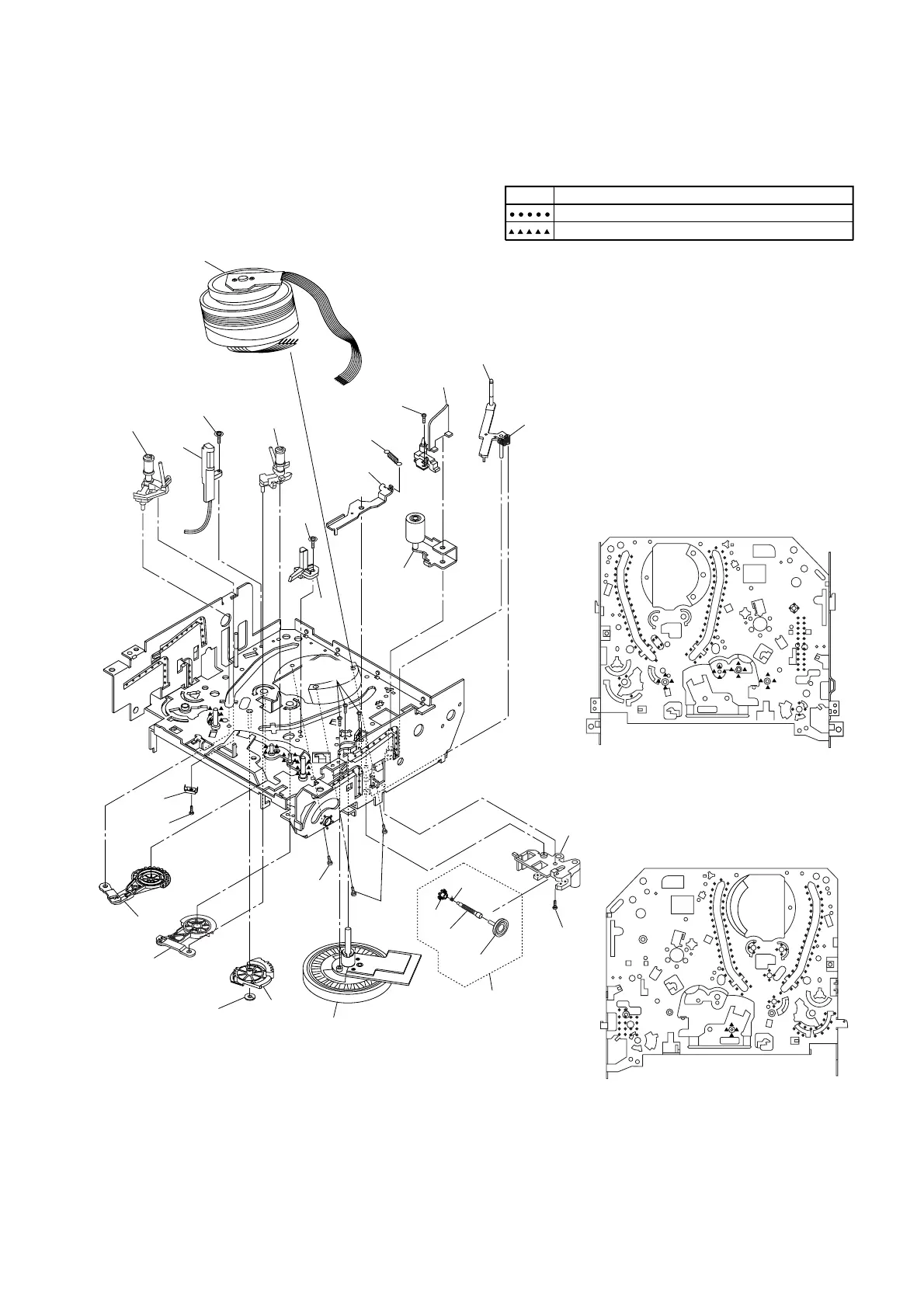

Deck Mechanism View 1
Mark Description
Floil G-684G or Multemp MH-D
(Blue grease)
SLIDUS OIL #150
B12
B492
B11
B571
B37
Some Ref. Numbers are not in sequence.
B126
B8
B121
B426
B560
L1450
L1450
L1466
B501
L1322
B5
Chassis Assembly
Top View (Lubricating Point)
Chassis Assembly
Bottom View (Lubricating Point)
B410
B74
L1051
B35
B411
B494
B567
L1053
L1191
B73
B9
L1467
B553
B2
B10
