Philips EasyKey 5000 Series - Installation Steps

6
The following installation steps apply to Left -handle opening. If your door is left-
handle opening, please turn the inside escutcheon upside down.

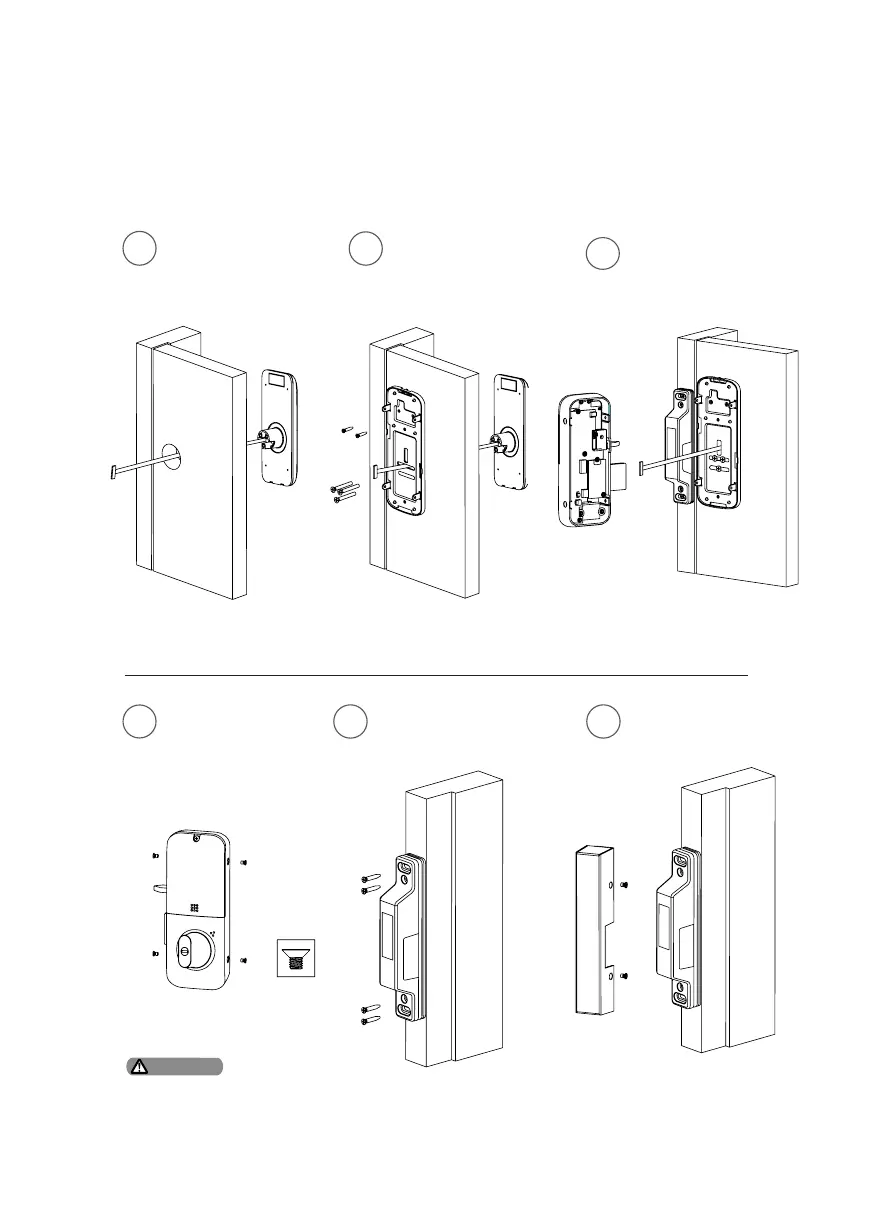

Installation steps
Fix the mounting
plate with screws.
Pass the connecting
cable of the outside
escutcheon through the
door hole.
1
2
Insert the cable
into the inside
escutcheon.
Please make sure to hide the extra cable in the door hole.
3
Attention
Fix the inside
escutcheon with
screws.
4
Fix the striker with
screws.
Fix the striker cover
with screws.
5
6
