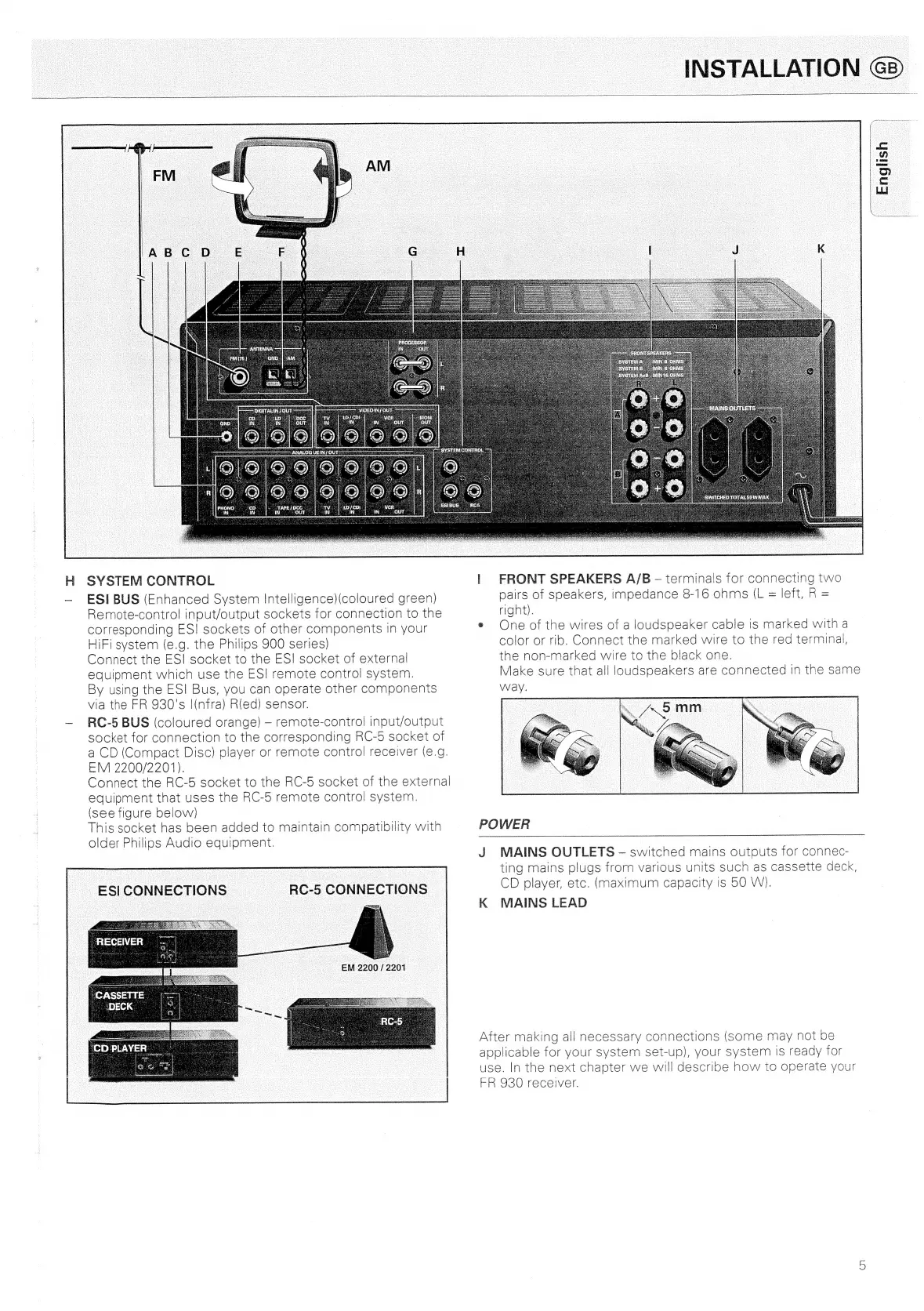

INSTALLATION
@:
H SYSTEM CONTROL
ESICONNECTIONS —_RC-5 CONNECTIONS
ESI BUS (Enhanced System Intelligence)(coloured green)
Remote-control input/output sockets for connection to the
corresponding ESI sockets of other components in your
HiFi system (e.g. the Philips 900 series)
Connect the ES! socket to the ES! socket of external
equipment which use the ESI remote control system.
By using the ESI Bus, you can operate other components
via the FR 930's I(nfra) R(ed) sensor.
RC-5 BUS (coloured orange) — remote-control input/output
socket for connection to the corresponding RC-5 socket of
a CD (Compact Disc) player or remote control receiver (e.g.
EM 2200/2201).
Connect the RC-5 socket to the RC-5 socket of the external
equipment that uses the RC-5 remote control system.
(see figure below)
This socket has been added to maintain compatibility with
older Phillos Audio equipment.
Reed
EM 2200/2201
FRONT SPEAKERS A/B — terminals for connecting two
pairs of speakers, impedance 8-16 ohms (L = left, R =
right).
One of the wires of a loudspeaker cable is marked with a
color or rib. Connect the marked wire to the red terminal,
the non-marked wire to the black one.
Make sure that all loudspeakers are connected in the same
way.
POWER
J
MAINS OUTLETS — switched mains outputs for connec-
ting mains plugs from various units such as cassette deck,
CD player, etc. (maximum capacity is 50 VV).
MAINS LEAD
After making all necessary connections (some may not be
applicable for your system set-up), your system is ready for
use. In the next chapter we will describe how to operate your
FR 930 receiver.
