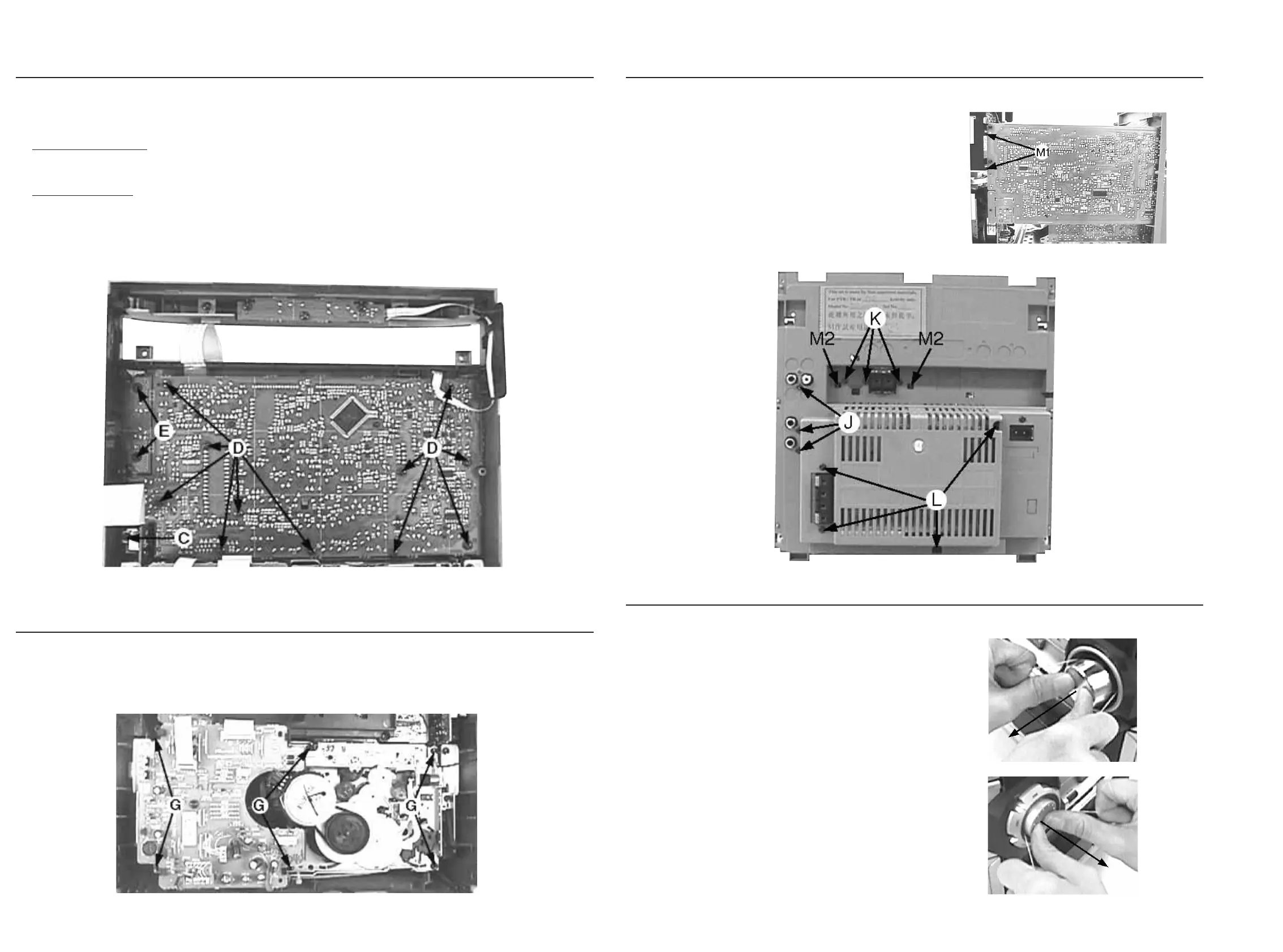

Dismantling of the ETF Tape Module
1) Remove 6 screws G as indicated to loosen the ETF Tape
Module (pos 1104).
Dismantling of Rear PortionDismantling of the Front Board
1) Remove 1 screw C as indicated to loosen the Headphone
Board (pos 1101-C).
2) For set without Karaoke :
Remove 11 screws D and 2 screws E as indicated to
loosen the Front Board (pos 1101-A).
For set with Karaoke :
Remove 11 screws D as indicated to loosen the Front
Board (pos 1101-A) and 2 screws E as indicated to
loosen the Karaoke Board (pos 1101-D).
1) The Knob Volume (pos 139) can be remove by inserting
a strong string into the slot and pull it out in the direction
as indicated. See picture 1.
2) The Knob Rotary (pos 138) can be remove by inserting
a strong string into the slot and pull it out in the direction
as indicated. See picture 2.
Picture 1
Picture 2
Repair Hints
1) Remove 3 screws J and uncatch M1 as indicated to
loosen the AF Board (pos 1102).
2) Remove 3 screws K and uncatch M2 as indicated to
loosen the Tuner Board (pos 1103).
3) Remove 4 screws L as indicated to loosen the Panel
Rear (pos 256).
Remove AF Board
To Next Page
