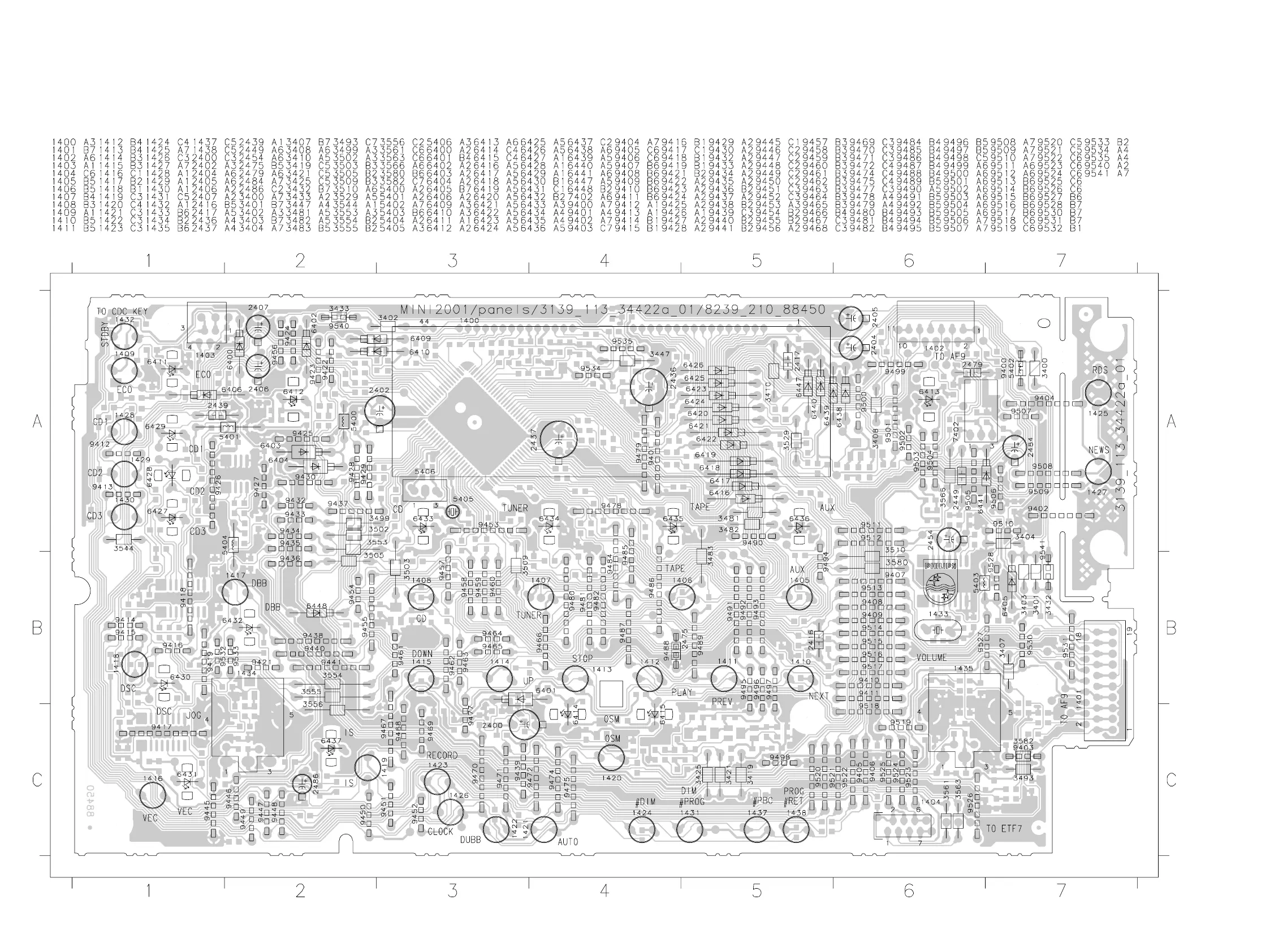

Philips FW-C390 - FRONT PART COMPONENT LAYOUT; Front Panel Component Placement

6-4
6-4
This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list.
3139 113 3442 pt 2a dd wk147
FRONT PART - COMPONENT LAYOUT
