2.1.3 Video Signal Pin Assignments
TABLE 1
ANALOG CONNECTOR PINOUT
PIN MNEMONIC SIGNAL
1 RV Red Vi de o
2 GV Gree n Video/Sync on Green
3 BV B lu e Video
4 N C None
5 GN D G round (DDC Re tur n) or Cabl e detect
6RGRedGND
7GGGreenGND
8BGBlueGND
9+5V+5V
10 SG Sync GND or Cable det ec t
11 NC None
12 SDA DDC Data
13 HS Horizontal Sync
14 VS Vertical Sync
15 SCL DDC Clock

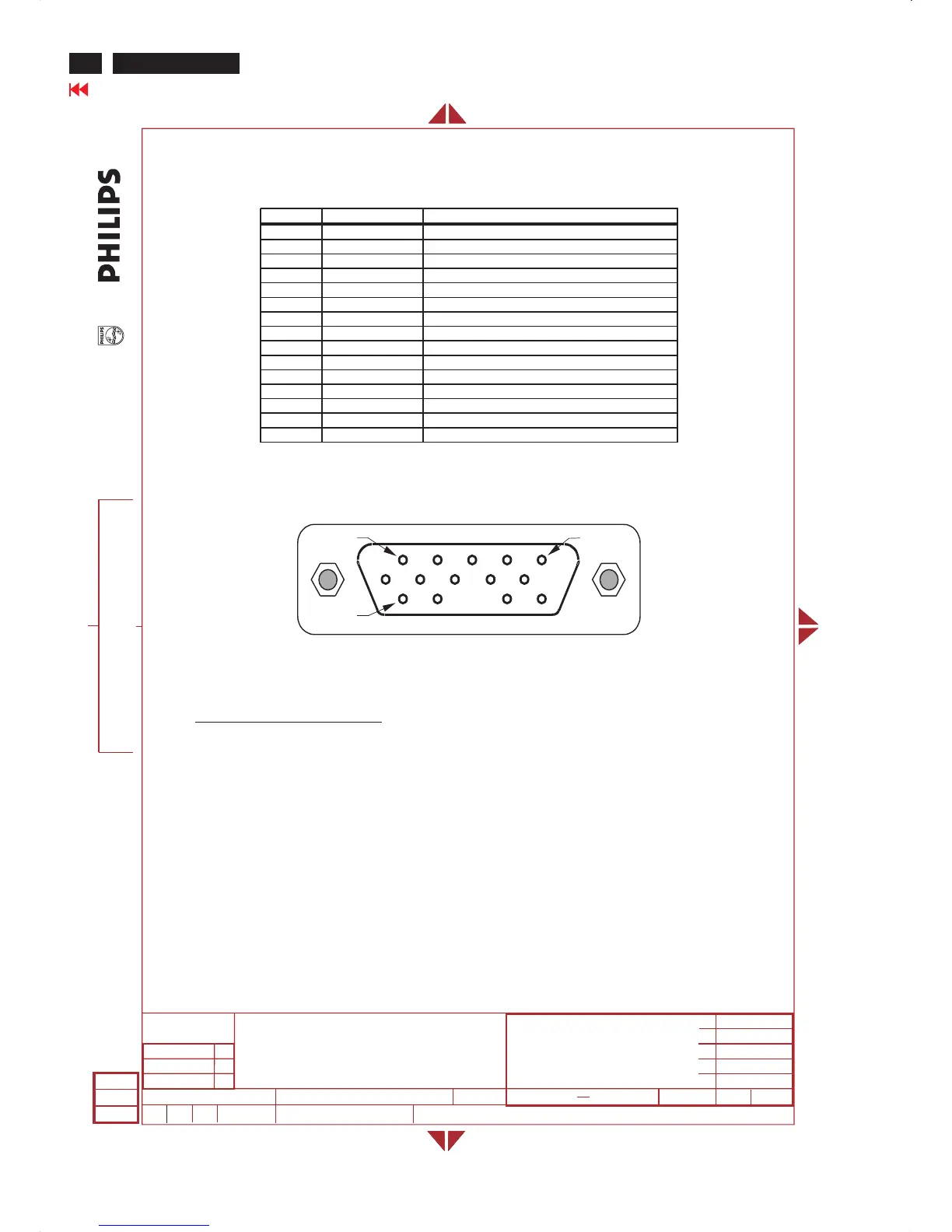

FIGURE 1
VGA CONNECTOR LAYOUT
PIN 1
PIN 5
PIN 11
2.2 Power Supply Requirements
2.2.1 power supply specifications
The power supply for the monitor shall be internal and shall have an standard receptacle for mains
power input, and shall provide sufficient DC power for both the monitor and the backlight assembly,
and shall meet all requirements specified in the following.
