HP L1502
58
General Product Specification
Go to cover page
CLASS NO.
All rights strictly reserved . Reproduction or issue
to third parties in any form w hatever is not permitted
without written authority, from the proprietors.
.
NAME
2838 100 05424
TY
CHECK
SUPERS.
DATE
Property of
PHILIPS ELECTRONICS INDUSTRIES (TA IWA N) LTD.-C.E.
10
A4
2003-08-11
HP Wu
15”TFT XGA LCD CMTR
TYPE : AJ6S40/02
BRAND : HP (L1502)
2003-08-11
8639 000 14754
11
590
18
5.3 Panel Luminance
Set to Custom Color, user R.G.B gain at 100%
Measured at center point as pattern1
Brightness control Contrast control Light output
100 100 >= 200 nits
5.4 Check brightness uniformity
Set brightness and contrast =100%
Ser color temperature = custom color
Apply the pattern 1.
It should comply with the following formula:
Minimum luminance of 9 points
>= 0.75
Maximum luminance of 9 points
5.5 Back Light Dimming Range
Set the contrast at 100 %,
Set color temperature = custom color
Measure brightness at 0% and 100%
The light output of center (pattern 1)should be comply with
Luminance at brightness 100% - Luminance at brightness 0%
*100% > = 25 %
Luminance at brightness 100%
5.6 Check Cross talk
Set contrast at 50 % and brightness at 100 %.
Apply Pattern 2 and measure A.
Apply Pattern 3 and measure A’.
ABS ( A - A’ )
¾¾¾¾¾¾¾¾¾ *100% <=1.5%
A

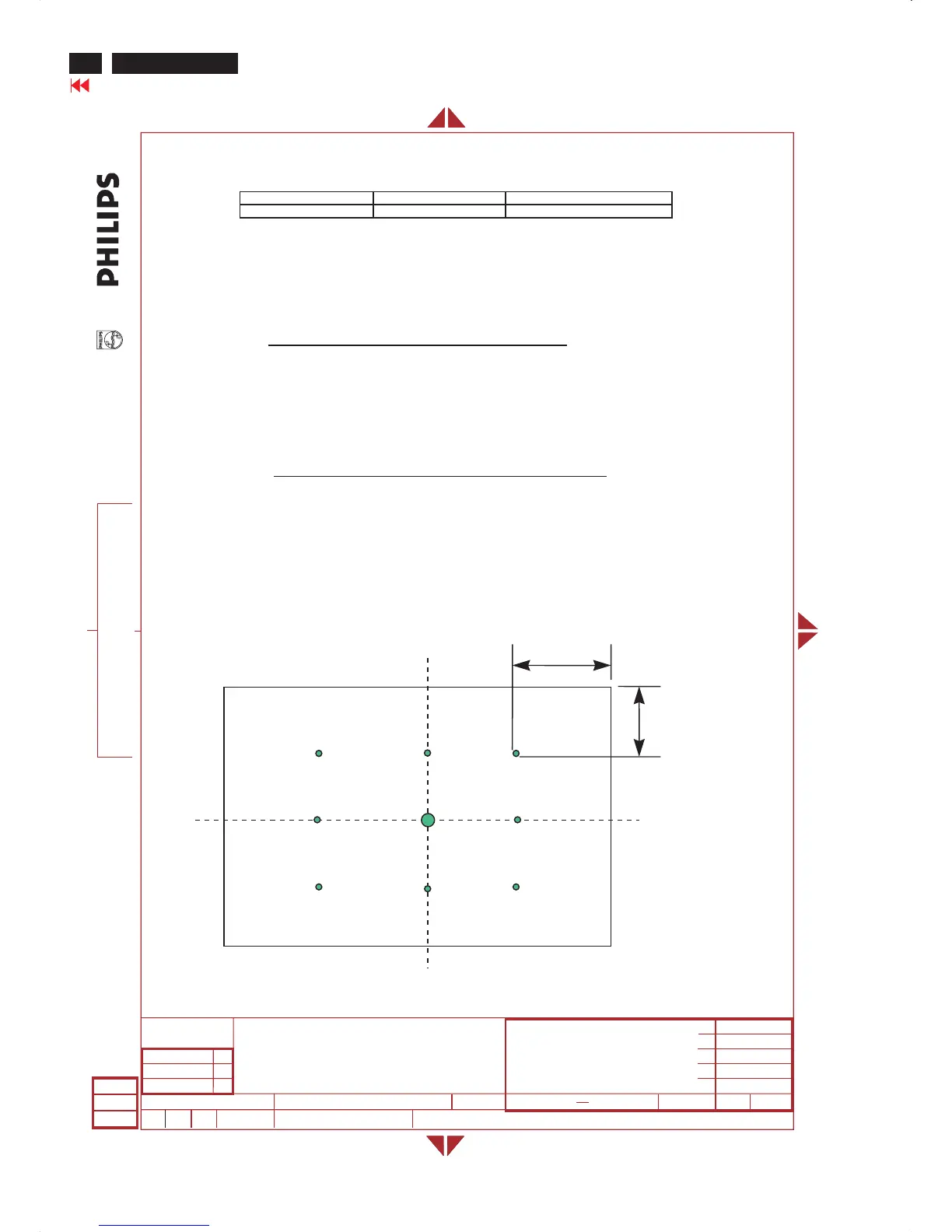

Pattern 1: Brightness and Uniformity (9 points)
1
23
7
9
1/10
1/10
456
8
