EN 25
3139 785 32540
Dismantling Instructions & Service Positions
4.

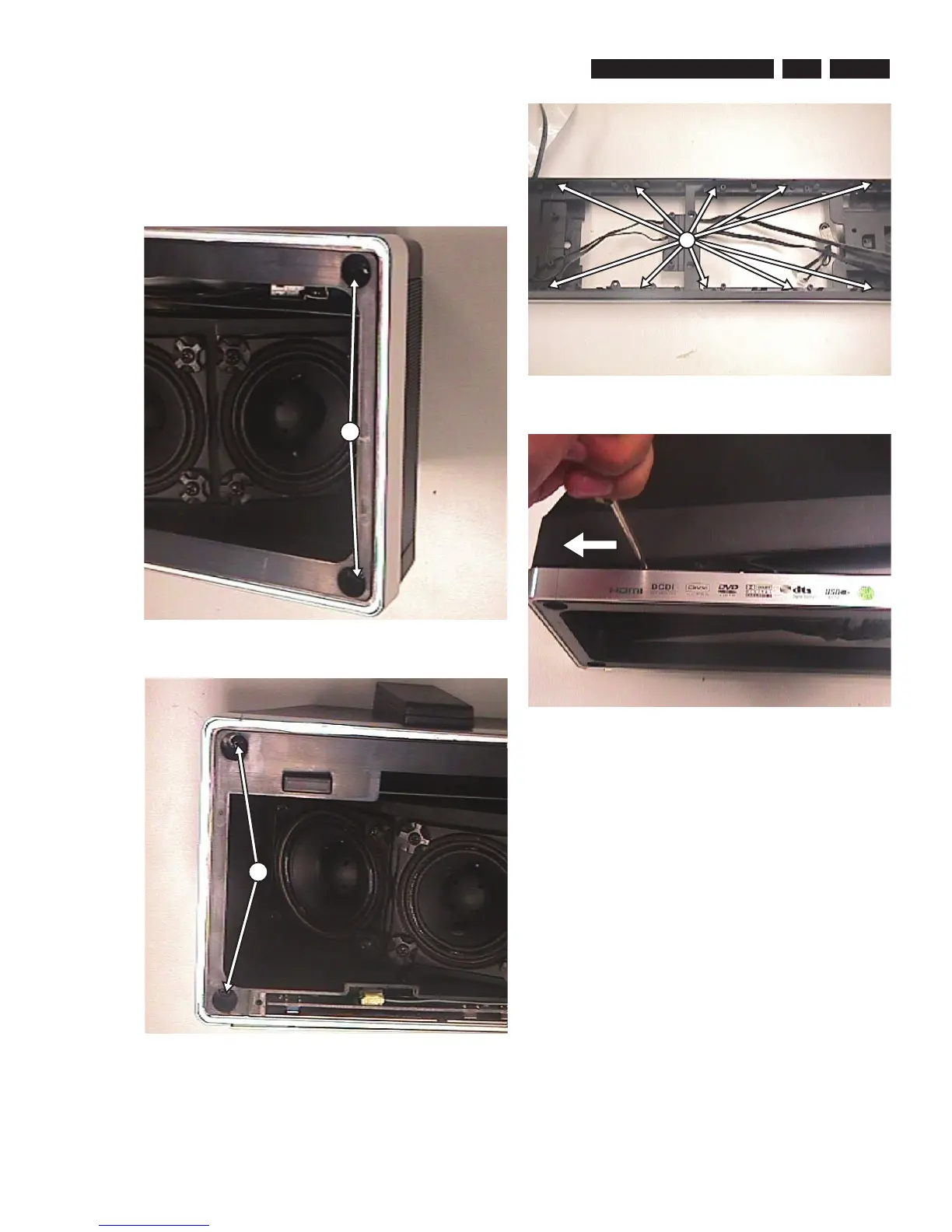

5) Remove 4 screws at the front (Make sure that all 4
Grommets are removed together with the Grilles; 2
screws on the right and 2 screws on the left as shown
in fi gure 20.) and 10 more screws on the Rear Cabinet
(fi gure 21). Detach the Cabinet Front Assembly from the
Rear Cabinet. (Insert a screwdriver between the Cabinet
Front Assembly and The Rear Cabinet and force them
apart as shown in fi gure 22).
Figure 4-20-a
Figure 4-20-b
Figure 4-21
Figure 4-22
U-1
U-2
V
To Next Page
