Dismantling Instructions & Service Positions
4.
4.2.2. Dismantling of the left Speaker Module
1) In order to dismantle the Left Speaker Module (Left
Speaker Rear Cabinet + Left Speaker Front Panel +
Left Speaker Units), remove 8 screws fi rst, take out the
Surround and Center Speakers and remove 4 more
screws inside the Speaker Cabinet.
2) Before detaching the Left Metal Partition, it is necessary
to remove the IPOD cover and remove the IPOD and
USB boards to see the screws that attached the left Metal
Partition to the Rear Cabinet (Follow the procedures in
article 4.1.4).

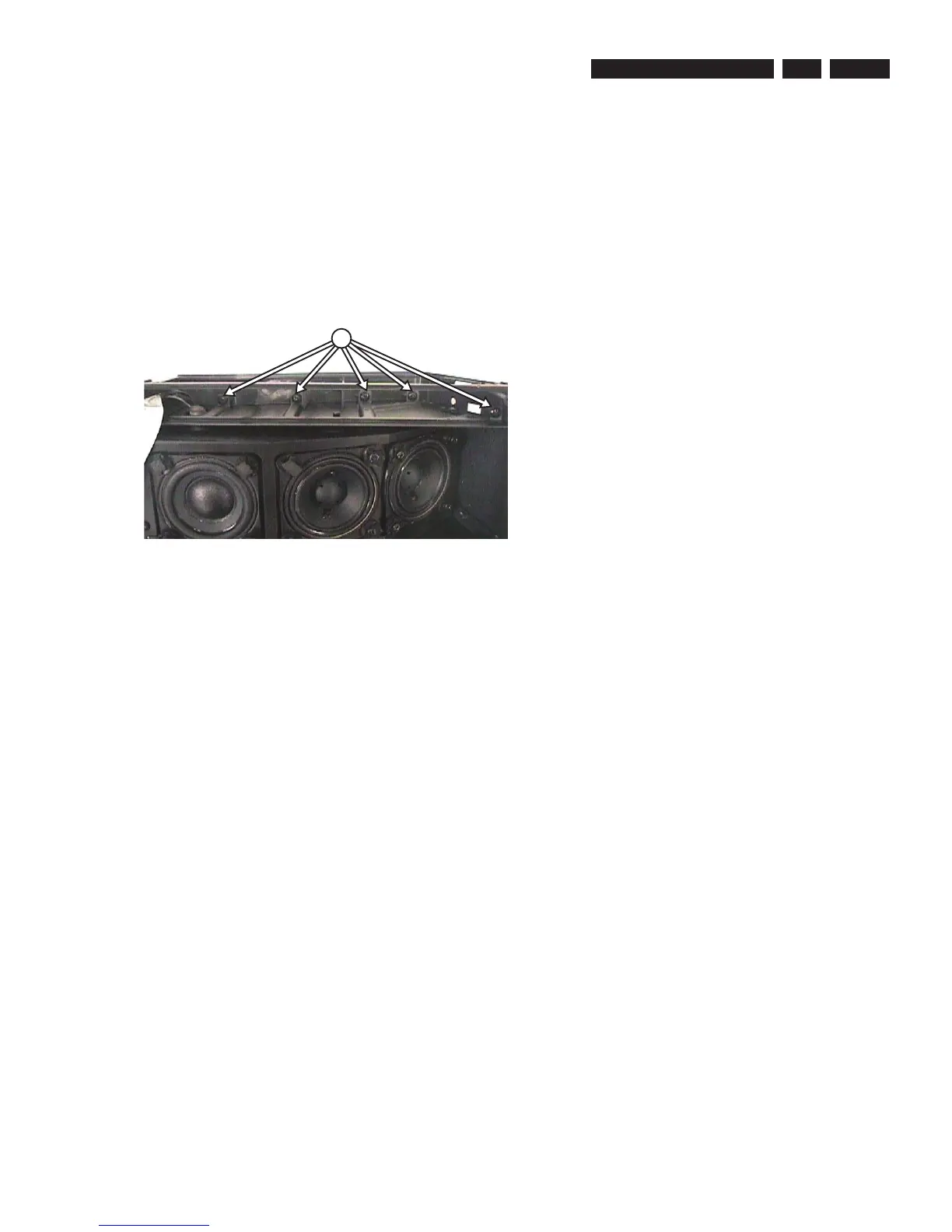

3) Then remove 5 screws and detach the left Metal Partition
as shown in fi gure 26.
4) Dismantle the Left Speaker Module from the Rear Cabinet
Figure 4-26
