Technical Specifications, Connections, and Chassis Overview
EN 3L01.2E AB 1.
1.2.2 Rear Connections
Figure 1-2 .eps
External 1: RGB/YUV in + CVBS in/out
Figure 1-3
1 - Audio R (0.5 Vrms / 1 kΩ) k
2 - Audio R (0.5 Vrms / 10 kΩ) j
3 - Audio L (0.5 Vrms / 1 kΩ) k
4- GND H
5- GND H
6 - Audio L (0.5 Vrms / 10 kΩ) j
7 - Blue / U (0.7 Vpp / 75 Ω) j
8 - CVBS-status 0 - 2.0 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3
9 - GND H
10 -
11 - Green / Y (0.7 Vpp / 75 Ω) j
12 -
13 - GND H
14 - GND H
15 - Red / V (0.7 Vpp / 75 Ω) j
16 - RGB-status 0 - 0.4 V: INT 1 - 3 V: EXT / 75
Ω j
17 - GND H
18 - GND H
19 - CVBS (1 Vpp / 75 Ω) k
20 - CVBS (1 Vpp / 75 Ω) j
21 - GND H
TV Aerial In
Aerial input : 75 Ω, coax (IEC-type)
FM Radio In
Aerial input : via ‘coax-to-3 pins’
adapter
: ‘cable’ or ‘wire’
antenna

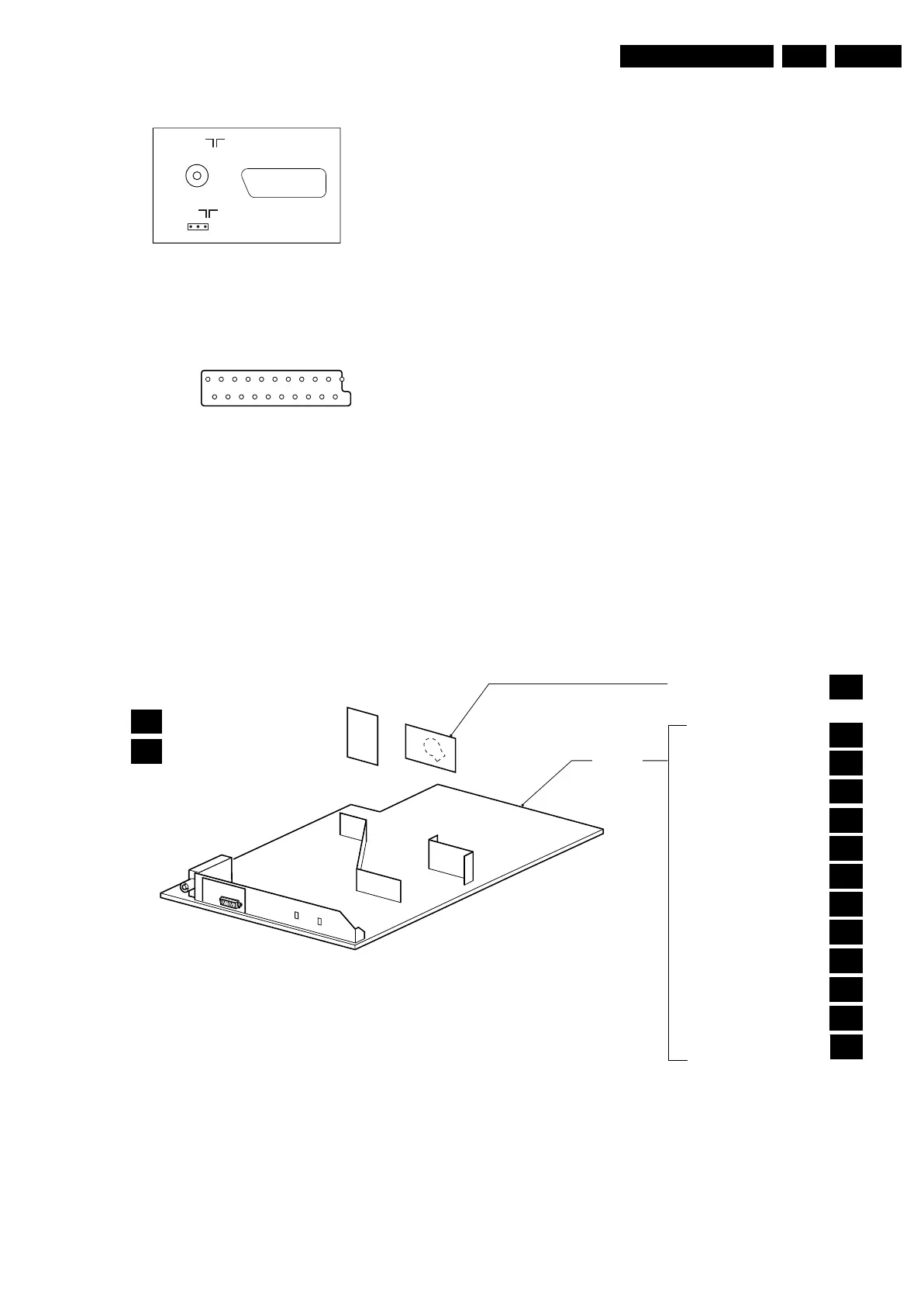

1.3 Chassis Overview
Figure 1-4
75 Ohm
FM
CL 16532008_042.eps
230501
EXTERNAL 1
121
202
CL96532137_056.eps
171199
SIDE AV PANEL + HEADPHONE
E1
SIDE AV PANEL
E
B
CRT PANEL
MAIN
CHASSIS
PANEL
CL 16532008_043.eps
240801
A1
A2
A3
A4
A5
A12
A9
A10
A8
A13
POWER SUPPLY
LINE DEFLECTION
FRAME DEFLECTION
A6
SYNCHRONISATION
TUNER IF
VIDEO + SOUND IF
HEADPHONE + FR. CONTROL
A7
CONTROL (µP)
NICAM + 2CS +
BTSC DECODER
A/V SWITCHING
AUDIO AMPLIFIER
REAR I/O CINCH
