Philips L01.2E AB - Technical Specifications, Connections, and Chassis Overview

Technical Specifications, Connections, and Chassis Overview
EN 2 L01.2E AB1.
1. Technical Specifications, Connections, and Chassis Overview
Index of this chapter:
1.1 Technical Specifications
1.2 Connections
1.3 Chassis Overview
Note: Described specifications are valid for the whole product
range.
1.1 Technical Specifications
1.1.1 Reception
Tuning system : PLL
Colour systems : PAL B/G, D/K, I
: SECAM B/G, L/L’
Sound systems : FM/AM mono
: FM stereo (2CS)
:NICAM
: FM radio (10.7 MHz)
A/V connections : PAL BG
: SECAM L/L’
: NTSC 3.58 (playback
only)
: NTSC 4.43 (playback
only)
Channel selections : 100 channels
: UVSH
IF frequency : 38.9 MHz
Aerial input : 75 Ω, Coax
1.1.2 Miscellaneous
Audio output (RMS) : 1 W mono
: 2 W mono
: 4 W mono
: 2 x 3 W stereo
Mains voltage : 220 - 240 V (± 10 %)
Mains frequency : 50 / 60 Hz (± 5 %)
Ambient temperature : + 5 to + 45 °C
Maximum humidity : 90 %
Power consumption : 36 W (14”) to
: 52 W (21”)
Standby Power consumption : < 3 W
1.2 Connections

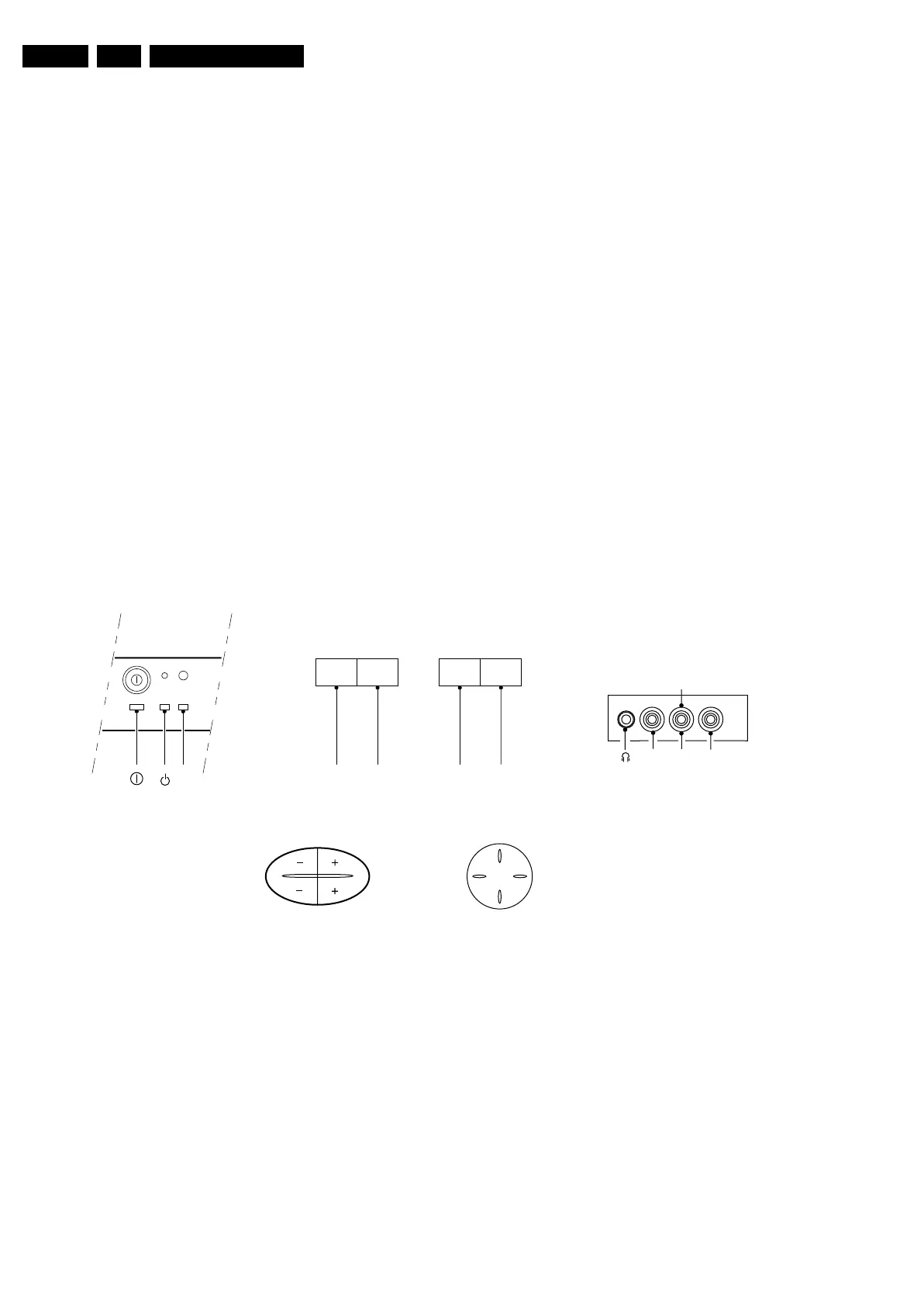

1.2.1 Front (or Side) Connections and Front (or Top) Control
Figure 1-1
Audio / Video In
1 - Headphone 3.5 mm (8 - 600 Ω / 4 mW) rt
2 - Video CVBS (1 Vpp / 75 Ω) jq
3 - Audio Mono (0.5 Vrms / 10 kΩ) jq
IR
RED
- VOLUME +
- PROGRAM +
V+V-
P-
P+
L
Audio
R
Video
Mono
V- C+C-V+
CL 16532016_020.eps
220501
C+C-V+V-
