7

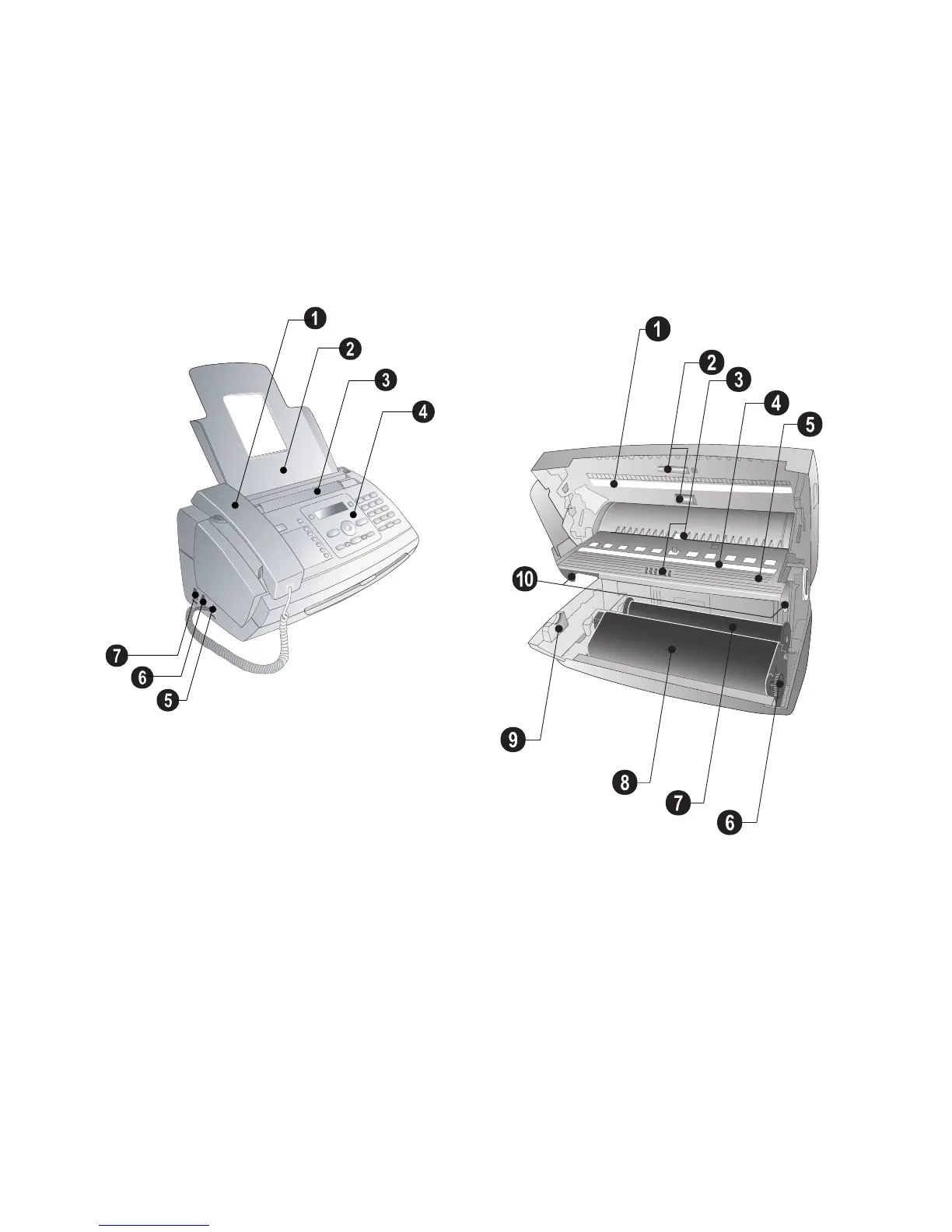

Machine Overview
Primo · Voice overview
‚ Handset
ƒ Paper tray
„ Document feeder (printed part up)
… Panel with display
† Telephone handset socket – connection socket for the
telephone handset
‡ B-Socket – connection socket for additional devic-
es
ˆ C-Socket – connection socket for telephone cord
PPF 63x, PPF 67x
Internal Description
‚ Scanner
ƒ Rollers of the automatic document feeder
„ Rests of the intake rollers
… Document guide / scanner film
† Cover for scanner and automatic document feeder
‡ Toothed wheel for tightening the ink film
ˆ Ink film roll in the rear ink film compartment
‰ Ink film roll in the front ink film compartment
Š Slot for the Plug’n’Print card
‹ Locks for the cover of the scanner and automatic doc-
ument feeder
Numbered Internal View
