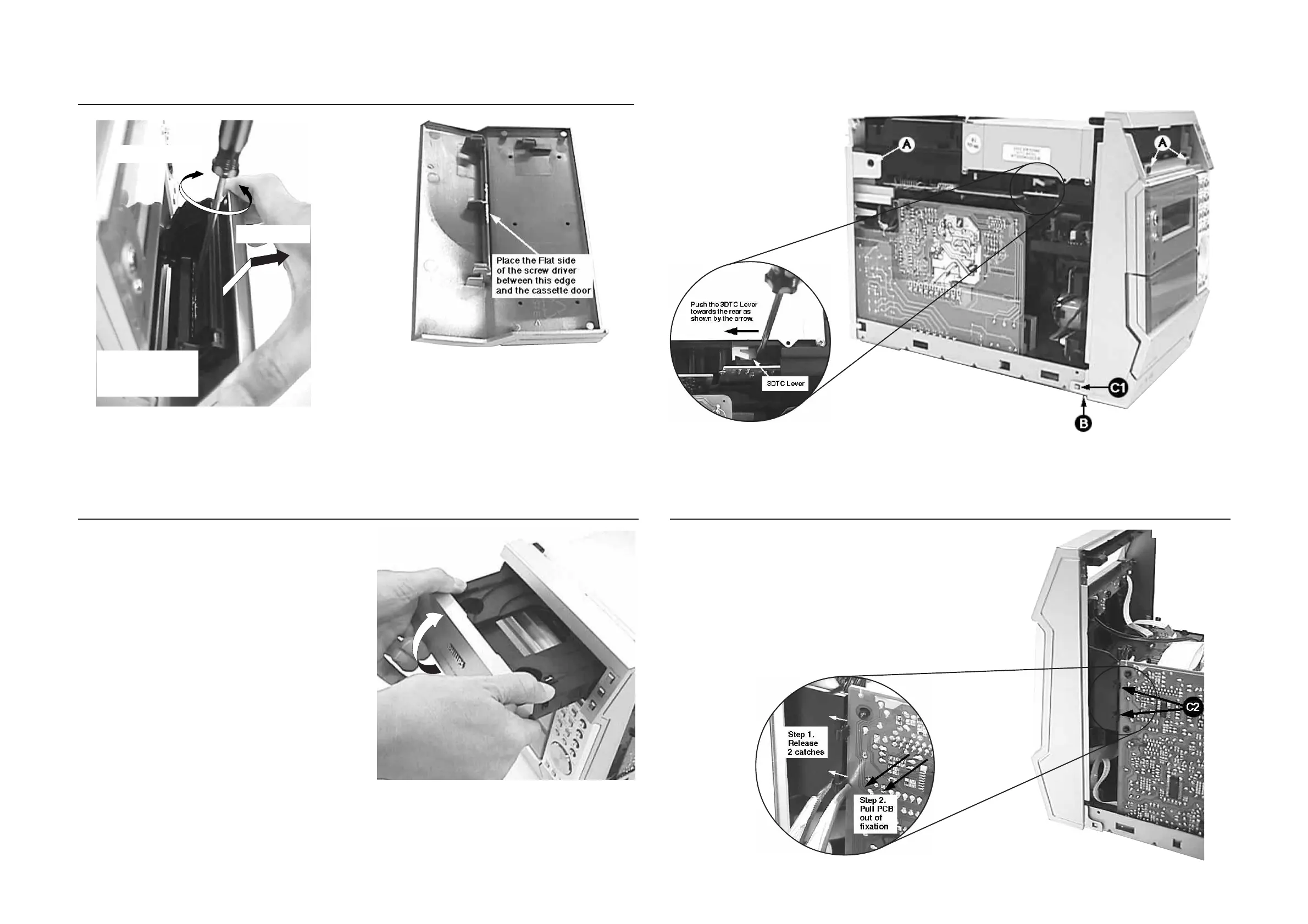

DISMANTLING INSTRUCTIONS
3-1 3-1
Figure 4
Dismantling of the 3DTC Module and Tuner Board
1) Loosen 4 screws and remove the Cover Top (pos 255) by
sliding it out towards the rear before lifting up.
- 2 screws on the rear
- 1 screw each on the left & right side
2) Loosen 2 screws each to remove the Panel Left and Right
(pos 253 & 254). The Panels are remove by sliding it
towards the rear and outwards.
- 1 screw on the side
- 1 screw on the rear
3) Open the 3DTC Tray by sliding the lever (pos 36) as shown
in figure 4 with the help of a flat head screw driver.
4) Remove the Cover Tray (pos 106) as shown in figure 3.
5) Loosen 4 screws A (see figure 4)to remove the 3DTC
Module.
- 2 screws on the front
- 1 screw each on the left & right side
6) Loosen 3 screws E (see figure 8) on the Panel Rear (pos
256) & uncatch 2 catches C3 to remove the Tuner Board.
Figure 3
1) Remove 2 screws B (see figure 4) from the bottom of the
Cabinet Front (pos 101).
2) Release the fixation of the Combi Board to Bracket Combi
(pos 252) by releasing 2 catches C2 and pulling the board
outwards as shown in figure 5.
3) Uncatch 2 catches C1 (see figure 4) on the left & right sides
of Cabinet Front (pos 101) and slides the Front Panel
assembly out towards the front.
Detaching the Front Panel assembly from the Bottom/Rear assembly
Figure 5
Dismantling of the Cassette Cover
Figure 1 Remove Cassette Cover
3. Lift up and out
1. Place screw driver
(flat side) between
the cover & cassette
door
2. Twist screw driver
Figure 2 Cassette Cover
