Philips MC77 - Service Hints

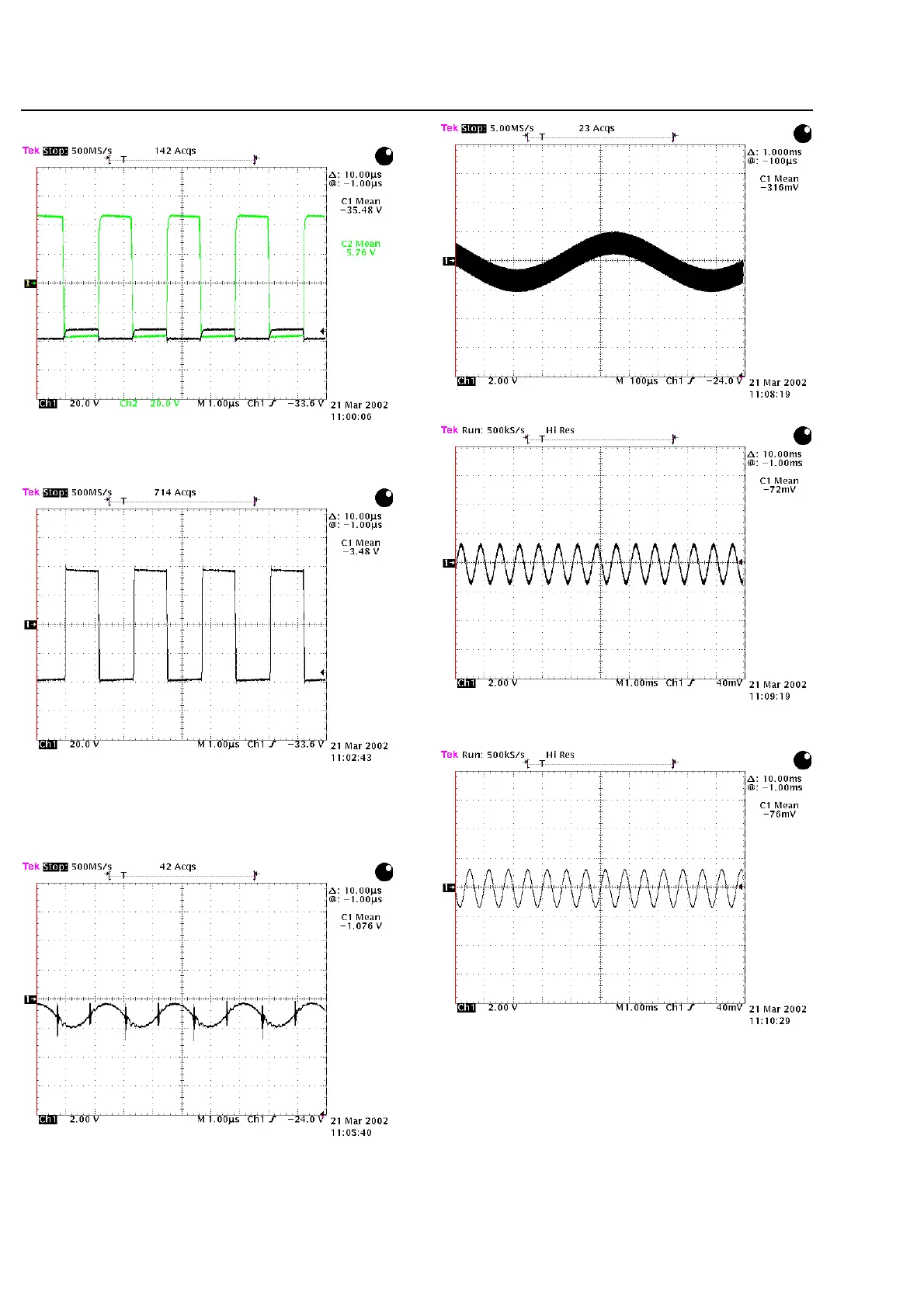

Measuringpoint H: gate-signal of the FETs
Measuringpoint I:
Digital output signal.
Measuringpoint
J:
The following three signals are measured after output filter
5101 with different timebases.
Measuringpoint
K:
After common mode coil 5102 - the audio signal is restored.
11-6
Service Hints
