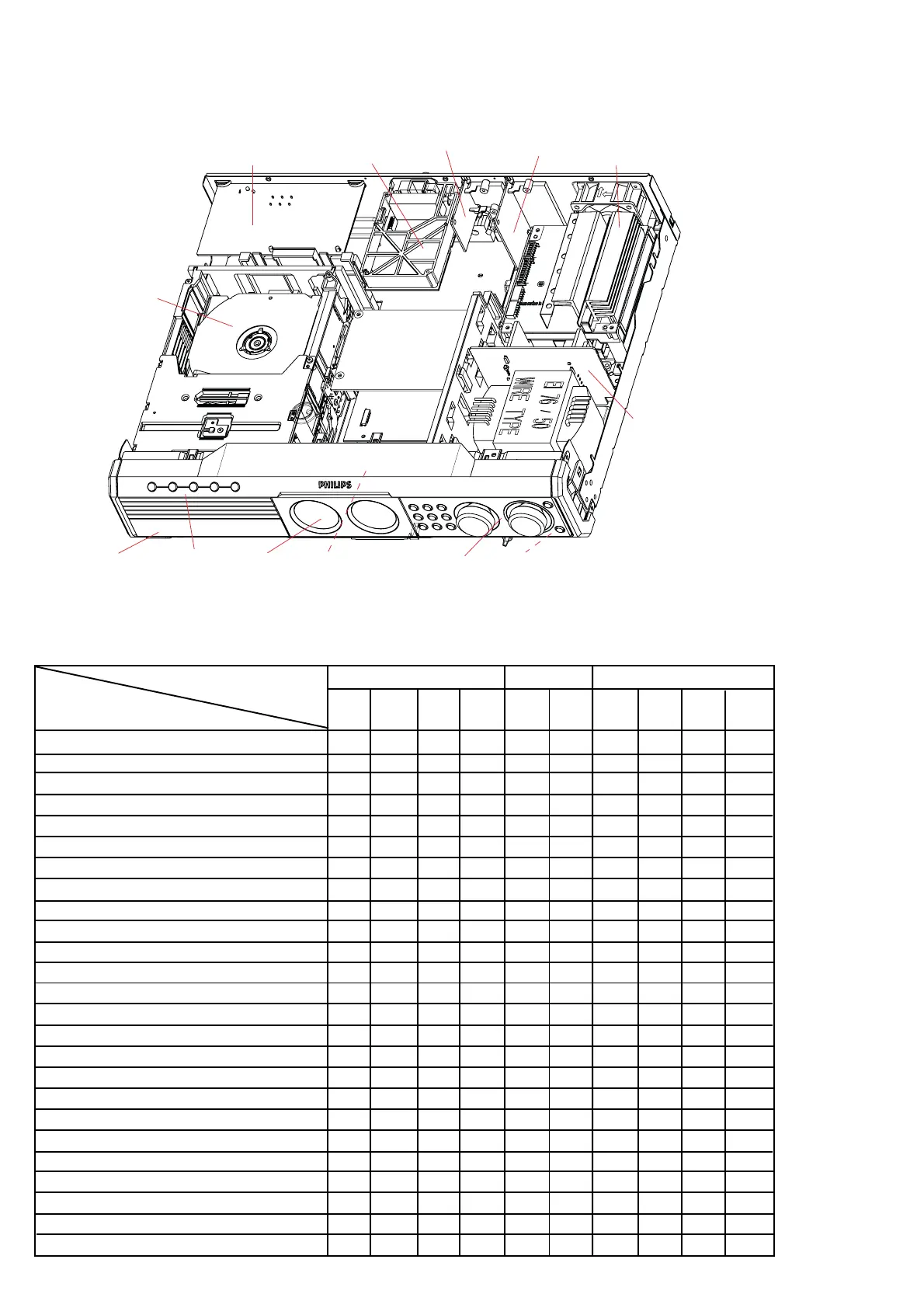

LOCATION OF PC BOARDS
AMPLIFER BOARD
100W = 2PCS
75W = 1PC
MAINS & ECO
STBY BOARD
5DTC-DVD
LOADER
MECHANISM
+
CONTROL
BOARD
ECO6 TUNER
BOARD
SUPPLY
BOARD
CD222 FE
BOARD
CD222 BE
BOARD
SPK I BOARD
FRONT
HP & MIC
PART
PCMCIA BOARD
(just in front of the
CD222 FE board)
FRONT
DTC KEY
PART
FRONT
STANDBY
PART
FRONT
DISPLAY
PART
FRONT
CONTROL
PART
AV BOARD
SPK II BOARD
/21S /33S /35S /37 /37 /21R /21S /22S /25S
Karaoke - x - - x x - -
RDS + News - - - - - - x x
Pro-Scan x x x x x x - -
PCMCIA (Media Slot) x x x xxxxx
Standby - Clock Display x x x xxxxx
ECO Standby - No Display x x x xxxxx
Voltage Selector x - - - x x - -
Digital In / Out x x x xxxxx
Aux Input x x x xxxxx
TV Input x x x xxxxx
Line Output x x x xxxxx
SCART output - - - - - - x x
Pr, Pb & Y Outputs x x x x x x - -
CVBS Output x x x xxxxx
S-Video Output x x x xxxxx
Headphone Socket x x x xxxxx
Mono BE board - CD222 P - - - - - - - -
Mono BE board - CD222 PM - - x x - - x x
Mono BE board - CD222 PMK x x - - x x - -
Tuner board - ECO6 System non-Cenelec x x x x x x - -
Tuner board - ECO6 System Cenelec - - - - - - x x
75W 6-Ch (Single SW) with 1x Amplifier pcb x x - - - - - -
75W 7-Ch (Twin SW) with 1x Amplifier pcb - - - x - - - -
100W 6-Ch (Single SW) with 2x Amplifier pcb - - x - - - - -
100W 7-Ch (Twin SW) with 2x Amplifier pcb - - - xxxxx
VERSION VARIATIONS:
Type /Versions: MX5500D MX5600D MX5700D
Features &
Board in used:
