5-14

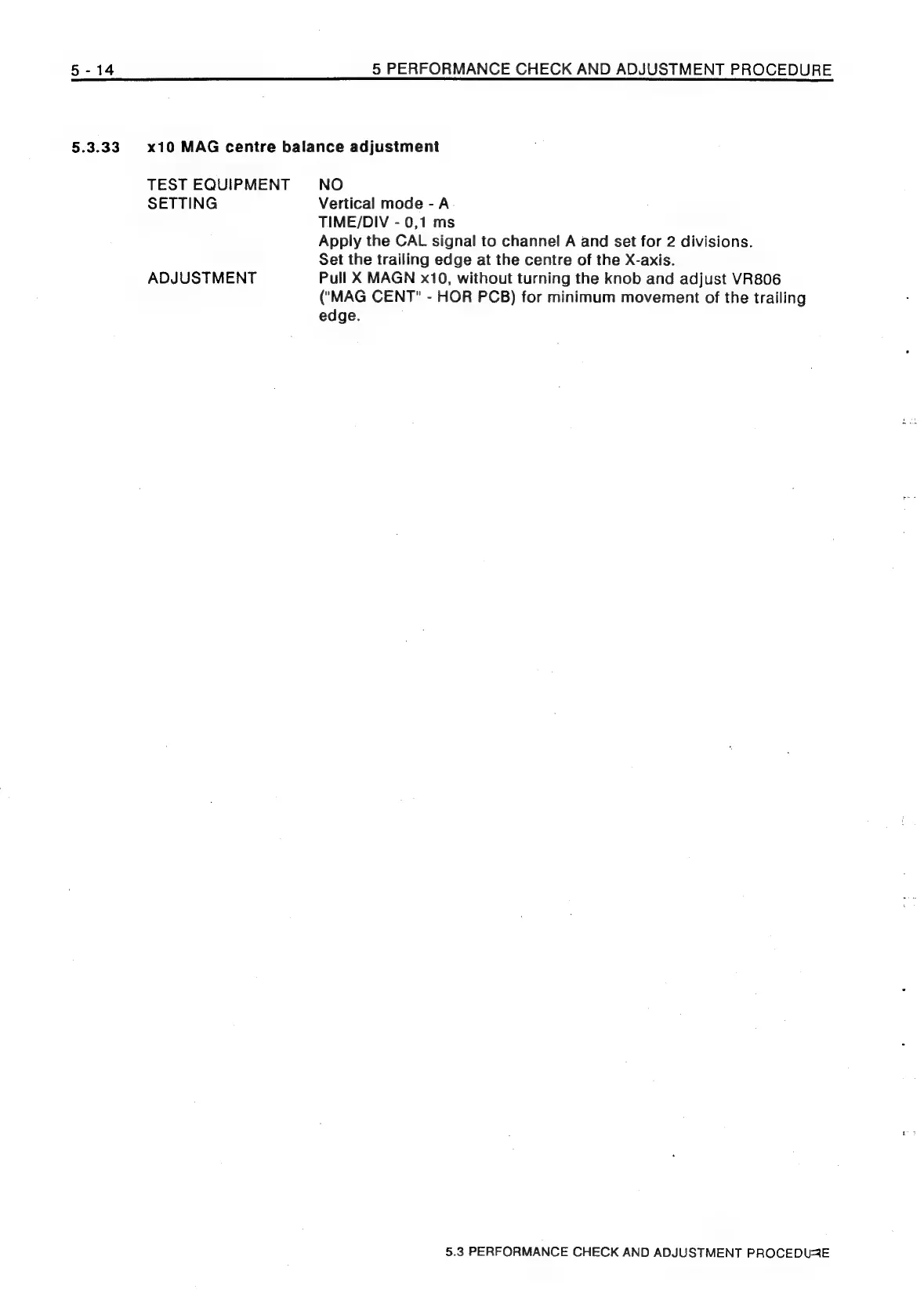

5.3.33
5 PERFORMANCE CHECK AND ADJUSTMENT PROCEDURE
x10 MAG centre balance adjustment
TEST EQUIPMENT NO
SETTING Vertical mode -A
TIME/DIV - 0,1 ms
Apply the CAL signal to channel A and set for 2 divisions.
Set the trailing edge at the centre of the X-axis.
ADJUSTMENT Pull X MAGN x10, without turning the knob and adjust VR806
("MAG CENT" - HOR PCB) for minimum movement of the trailing
edge.
5.3 PERFORMANCE CHECK AND ADJUSTMENT PROCEDURE
