DISMANTLING
THE
INSTRUMENT
6.3 ACCESS TO PARTS FOR CHECKING AND ADJUSTING
PROCEDURE
All
adjusting
elements,
except
the
trace
rotation,
are
accessible
after
removing
the
top-
and
bottom
covers.
The
trace
rotation
is accessible
from
the
front
NOTE: For adjustment always use an insulated adjustment tool.
MAT 3° 83
89051?

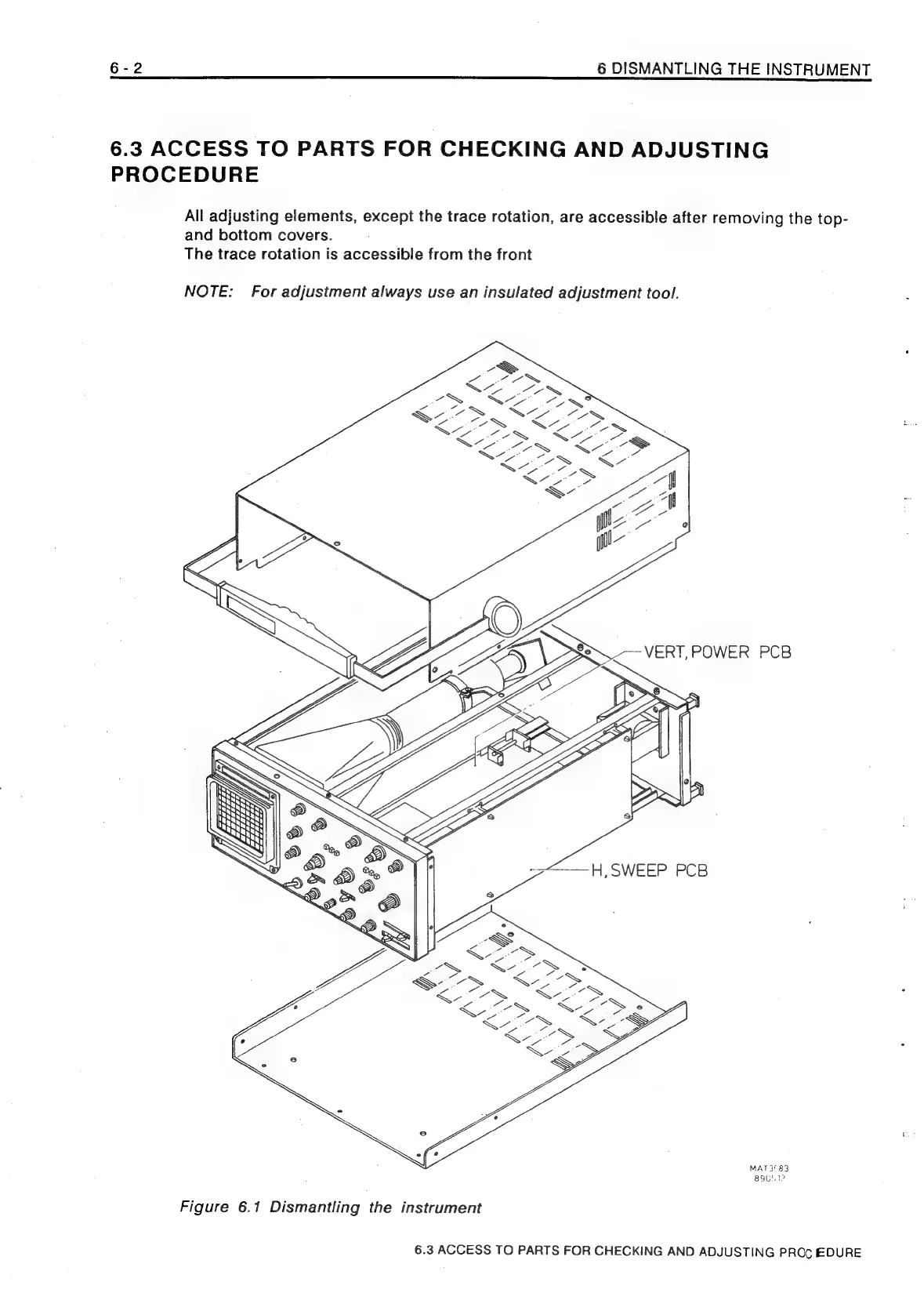

Figure 6.1 Dismantling the instrument
