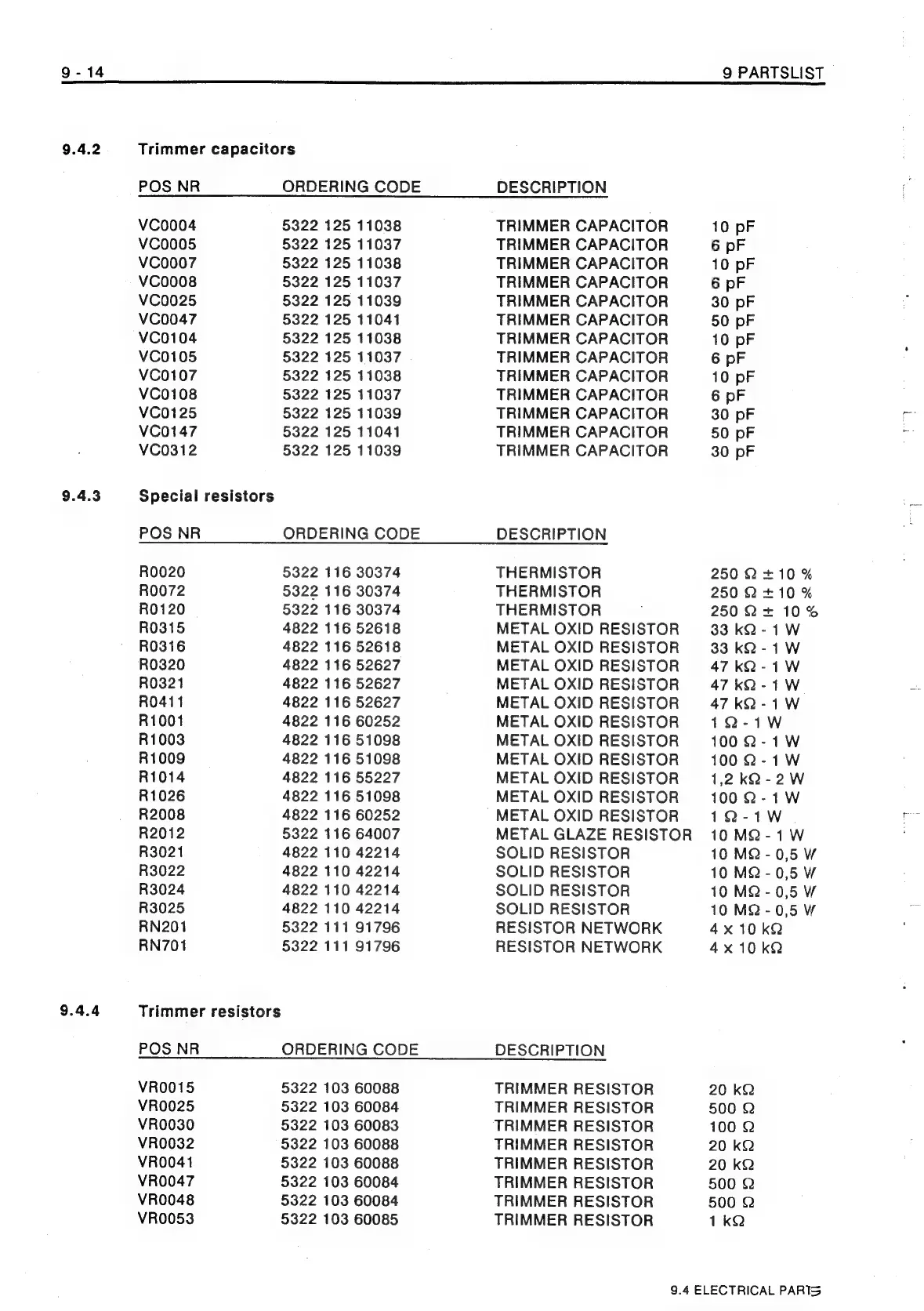

9-14 9 PARTSLIST
9.4.2 Trimmer capacitors
POS NR ORDERING CODE DESCRIPTION
VC0004 5322 125 11038 TRIMMER CAPACITOR 10 pF
VC0005 5322 125 11037 TRIMMER CAPACITOR 6 pF
VC0007 5322 125 11038 TRIMMER CAPACITOR 10 pF
VC0008 5322 125 11037 TRIMMER CAPACITOR 6 pF
VC0025 5322 125 11039 TRIMMER CAPACITOR 30 pF
VC0047 5322 125 11041 TRIMMER CAPACITOR 50 pF
VC0104 5322 125 11038 TRIMMER CAPACITOR 10 pF
VC0105 5322 125 11037 TRIMMER CAPACITOR 6 pF
VC0107 5322 125 11038 TRIMMER CAPACITOR 10 pF
VC0108 §322 125 11037 TRIMMER CAPACITOR 6 pF
VC0125 §322 125 11039 TRIMMER CAPACITOR 30 pF
VC0147 5322 125 11041 TRIMMER CAPACITOR 50 pF
VC0312 5322 125 11039 TRIMMER CAPACITOR 30 pF
9.4.3 Special resistors
POS NR ORDERING CODE DESCRIPTION
R0020 5322 116 30374 THERMISTOR 250 2 +10 %
R0072 5322 116 30374 THERMISTOR 250 2+10 %
RO0120 5322 116 30374 THERMISTOR 250 2+ 10%
RO315 4822 116 52618 METAL OXID RESISTOR 33 kQ-1W
RO316 4822 116 52618 METAL OXID RESISTOR 33 kQ-1W
RO0320 4822 116 52627 METAL OXID RESISTOR 47 kQ-1W
RO321 4822 116 52627 METAL OXID RESISTOR 47 kQ-1W
RO0411 4822 116 52627 METAL OXID RESISTOR 47 kQ-1W
R1001 4822 116 60252 METAL OXID RESISTOR 1Q-1W
R1003 4822 116 51098 METAL OXID RESISTOR 100 Q-1W
R1009 4822 116 51098 METAL OXID RESISTOR 100 Q-1W
R1014 4822 116 55227 METAL OXID RESISTOR 1,2 kQ-2W
R1026 4822 116 51098 METAL OXID RESISTOR 100 Q-1W
R2008 4822 116 60252 METAL OXID RESISTOR 102-1W
R2012 5322 116 64007 METAL GLAZE RESISTOR 10 MQ-1W
R3021 4822 110 42214 SOLID RESISTOR 10 MQ-0,5 W
R3022 4822 110 42214 SOLID RESISTOR 10 MQ-0,5 W
R3024 4822 110 42214 SOLID RESISTOR 10 MQ-0,5 W
R3025 4822 110 42214 SOLID RESISTOR 10 MQ2- 0,5 W
RN201 5322 111 91796 RESISTOR NETWORK 4x 10 kQ2
RN701
5322
111
91796
RESISTOR
NETWORK
4x10
kQ
9.4.4 Trimmer resistors
POS NR ORDERING CODE DESCRIPTION
VROO15 5322 103 60088 TRIMMER RESISTOR 20 kQ
VR0025 5322 103 60084 TRIMMER RESISTOR 500 Q
VR0030 5322 103 60083 TRIMMER RESISTOR 100 22
VRO0032 5322 103 60088 TRIMMER RESISTOR 20 kQ
VRO0041 5322 103 60088 TRIMMER RESISTOR 20 kQ
VR0047 5322 103 60084 TRIMMER RESISTOR 500 2
VRO048 5322 103 60084 TRIMMER RESISTOR 500 Q
VRO053 5322 103 60085 TRIMMER RESISTOR 1kQ
9.4 ELECTRICAL PARTS
