Mechanical Instructions
EN 15Q548.1E LA 4.
2009-Apr-03

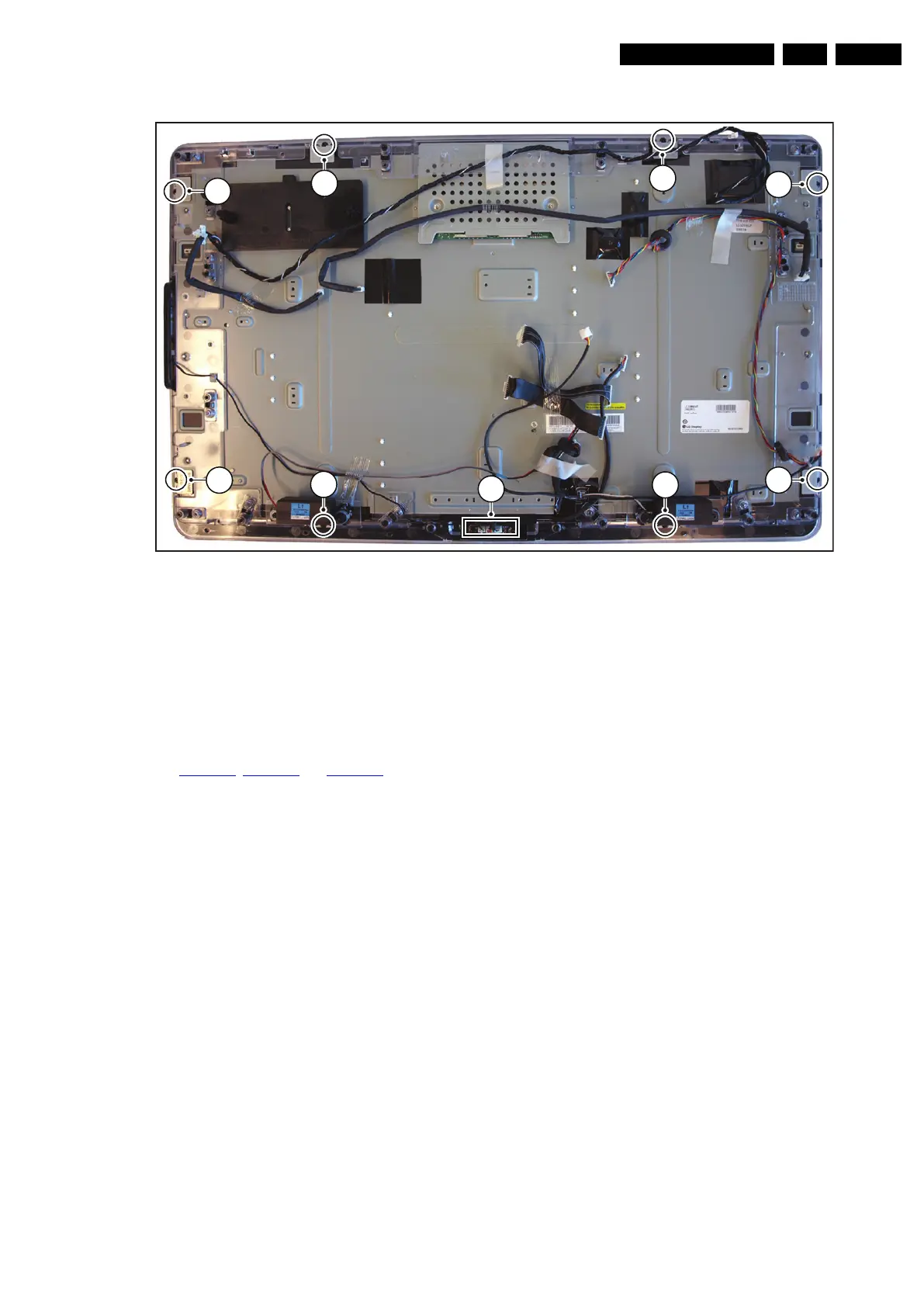

Figure 4-15 LCD Panel - panel removal
4.4 Set Re-assembly
To re-assemble the whole set, execute all processes in reverse
order.
Notes:
• While re-assembling, make sure that all cables are placed
and connected in their original position.
See Figure 4-1
, Figure 4-2 and Figure 4-3
• Pay special attention not to damage the EMC foams in the
set. Ensure that EMC foams are mounted correctly.
18560_113_090401.eps
090402
8
8
8
8
8
7
8
8
8
