Technical Specifications and Connections
EN 4 Q548.1E LA2.
2009-Apr-03
6 - USB2.0

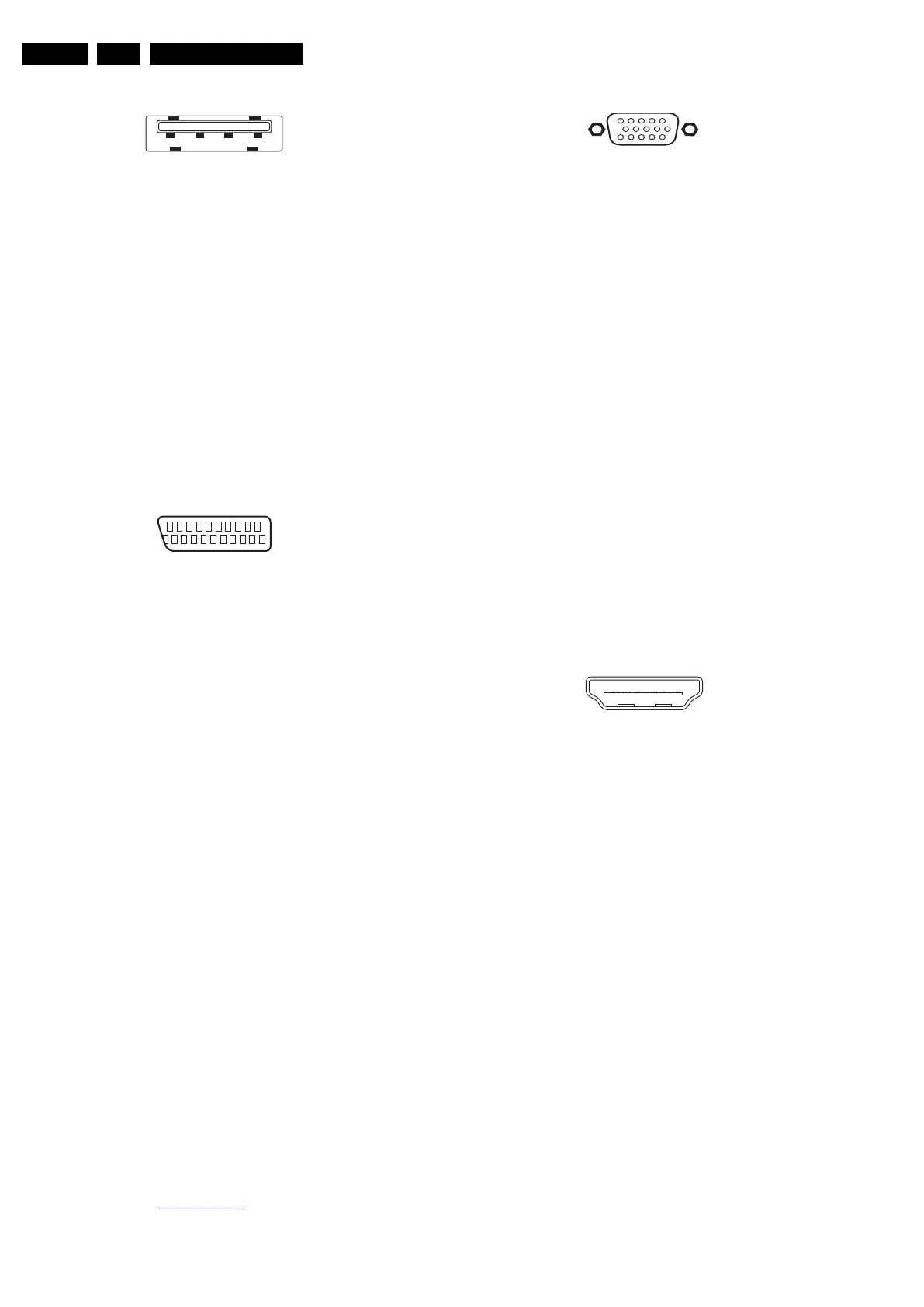

Figure 2-2 USB (type A)
1-+5V k
2 - Data (-) jk
3 - Data (+) jk
4 - Ground Gnd H
7 - HDMI: Digital Video, Digital Audio - In
(see connector 15)
8 - Service Connector (UART)
1 - Ground Gnd H
2 - UART_TX Transmit k
3 - UART_RX Receive j
2.3.2 Rear Connections
9 - EXT1 & 2: Video RGB - In, CVBS - In/Out, Audio - In/Out
Figure 2-3 SCART connector
1 - Audio R 0.5 V
RMS
/ 1 kΩ k
2 - Audio R 0.5 V
RMS
/ 10 kΩ j
3 - Audio L 0.5 V
RMS
/ 1 kΩ k
4 - Ground Audio Gnd H
5 - Ground Blue Gnd H
6 - Audio L 0.5 V
RMS
/ 10 kΩ j
7 - Video Blue 0.7 V
PP
/ 75 Ω jk
8 - Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j
9 - Ground Green Gnd H
10 - n.c.
11 - Video Green 0.7 V
PP
/ 75 Ω j
12 - n.c.
13 - Ground Red Gnd H
14 - Ground P50 Gnd H
15 - Video Red 0.7 V
PP
/ 75 Ω j
16 - Status/FBL 0 - 0.4 V: INT
1 - 3 V: EXT / 75 Ω j
17 - Ground Video Gnd H
18 - Ground FBL Gnd H
19 - Video CVBS/Y 1 V
PP
/ 75 Ω k
20 - Video CVBS 1 V
PP
/ 75 Ω j
21 - Shield Gnd H
10 - Cinch: S/PDIF - Out
Bk - Coaxial 0.4 - 0.6V
PP
/ 75 Ω kq
11 - Cinch: Audio - Out
Rd - Audio - R 0.5 V
RMS
/ 10 kΩ kq
Wh - Audio - L 0.5 V
RMS
/ 10 kΩ kq
12 - VGA: Video RGB - In
Figure 2-4 VGA Connector
1 - Video Red 0.7 V
PP
/ 75 Ω j
2 - Video Green 0.7 V
PP
/ 75 Ω j
3 - Video Blue 0.7 V
PP
/ 75 Ω j
4-n.c.
5 - Ground Gnd H
6 - Ground Red Gnd H
7 - Ground Green Gnd H
8 - Ground Blue Gnd H
9-+5V
DC
+5 V j
10 - Ground Sync Gnd H
11 - n.c.
12 - DDC_SDA DDC data j
13 - H-sync 0 - 5 V j
14 - V-sync 0 - 5 V j
15 - DDC_SCL DDC clock j
13 - Mini Jack: Audio - In
Wh - Audio L 0.5 V
RMS
/ 10 kΩ jo
Rd - Audio R 0.5 V
RMS
/ 10 kΩ jo
14 - EXT3: Cinch: Video YPbPr - In, Audio - In
Gn - Video Y 1 V
PP
/ 75 Ω jq
Bu - Video Pb 0.7 V
PP
/ 75 Ω jq
Rd - Video Pr 0.7 V
PP
/ 75 Ω jq
Rd - Audio - R 0.5 V
RMS
/ 10 kΩ jq
Wh - Audio - L 0.5 V
RMS
/ 10 kΩ jq
15 - HDMI 1, 2 & 3: Digital Video, Digital Audio - In
Figure 2-5 HDMI (type A) connector
1 - D2+ Data channel j
2 - Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5 - Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8 - Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink Control channel jk
14 - n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
16 - Aerial - In
- - IEC-type (EU) Coax, 75 Ω D
2.4 Chassis Overview
Refer to chapter Block Diagrams for PWB/CBA locations.
1 2 3 4
10000_022_090121.eps
090121
21
20
1
2
10000_001_090121.eps
090121
1
6
10
11
5
15
10000_002_090121.eps
090127
19
1
18 2
E_06532_017.eps
250505
