Philips TPM5.1E - SSB Smart Choice: MT5363 Peripheral;Usb2.0; B05

Circuit Diagrams and PWB Layouts
EN 81TPM5.1E LA 10.
2011-Sep-2

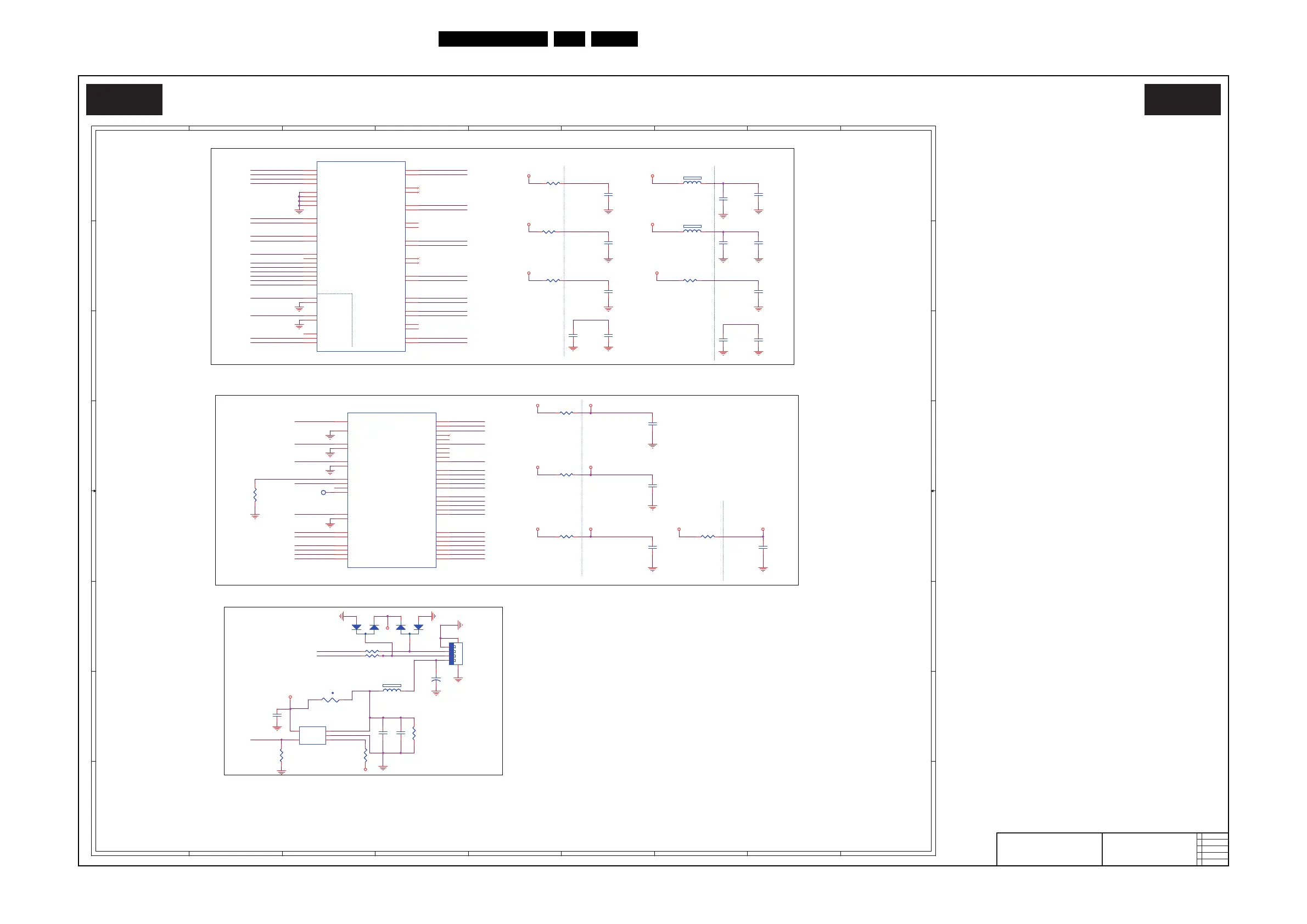

SSB Smart Choice: MT5363 peripheral/USB2.0
18840_510_100408.eps
100428
MT5363 PERIPHERAL/USB2.0
B05 B05
2010-04-02
1
MT5363
PERIPHERAL/USB2.0
715G3735
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
A
A
B
B
C C
D
D
E E
F F
G
G
H
H
USB 2.0
SMD/0402
SMD/0402
SMD/0402
SMD/0402
SMD/0402
SMD/0402
SMD/0402
SMD/0402
SMD/0402
SMD/0402
2040/DMS2040/DMS
SMD/0402
---><---|>
---><---|>
USB_PWR_OCP
Tuner_ByPass_Out
IF_AGCT
RF_AGCT
TUNER_CLK
TUNER_DATA
BP
CVBS0P
TUNER_BYPASS_In
COM1
COM0
AVDD1V25_RGB
GP
AVDD3V3_DEMOD
PR0P
PR1P
COM
SOY1
SOY0
VSYNC
RP
Y0P
Y1P
HSYNC
PB0P
SOG
AVDD3V3_CVBS
PB1P
CVBS1P
CVBS0N
FAT_IN-
FAT_IN+
AVDD3V3_VDAC
YPbPr_L_In
YPbPr_R_In
M_AOSDATA0
VIMD_AADC
AVDD3V3_DIG AVDD3V3_SIF
AVDD3V3_DIG
AVDD3V3_SIF
AVDD3V3_ADAC1
ADAC_VCM
AVDD3V3_AADC
AVDD3V3_REFP_AADC
VIMD_AADC
MPX_P
MPX_N
AVDD3V3_AADC
AVDD3V3_ADAC0
AVDD3V3_REFP_AADC
ADAC_VCM
M_AOBCK
Line_Out_R
Line_Out_L
VGA_L_In
VGA_R_In
PANEL_VCC_ON/OFF
BL_ON/OFF
M_AOLRCK
HP_Out_L
HP_Out_R
AV1_R_In
AV1_L_In
M_SPDIF_Out
SCART1_L_In
SCART1_R_In
USB_PWR_EN
CVBS3P
AVDD3V3_ADAC0
AVDD3V3_ADAC1
USB_DP
USB_DM
SCART1_Out_R
SCART1_Out_L
AMP_MUTE
SPDIF_DVD_IN
TX_RX_ON/OFF
+5V_STB
+5V_SW
DV33
AVDD3V3_CVBS
AV33
AVDD1V25_RGB
AVDD3V3_DEMOD
AV12
AVDD3V3_VDAC
AV33
AV33
AV33 AV33
AV33
AV33
AV33
AV33
R4061
0R05 1/10W
R4061
0R05 1/10W
+
C4063
100uF 10V
+
C4063
100uF 10V
C4066
NC/100N 16V
C4066
NC/100N 16V
U105
NC/STMPS2171STR
U105
NC/STMPS2171STR
OUT
1
GND
2
FAULT
3
EN
4
IN
5
R4062
0R05 1/10W
R4062
0R05 1/10W
C4052
100N 16V
C4052
100N 16V
R4051 0R05OHM1/16WR4051 0R05OHM1/16W
FB4058
120R/500mA
FB4058
120R/500mA
1 2
C4057
100N 16V
C4057
100N 16V
C4068
1uF 25V
C4068
1uF 25V
C4067
1uF 25V
C4067
1uF 25V
Audio I/F
MT5363
U401F
Audio I/F
MT5363
U401F
AVDD33_REF_AADC
W30
AVSS33_REF_AADC
Y29
VMID_AADC
AA30
AVDD33_AADC
Y31
AVDD33_ADAC1
T31
AVSS33_ADAC1
U30
AIN4_R_AADC
AB33
AIN0_L_AADC
AD33
AL2
V35
AVSS33_AADC
Y33
AIN1_R_AADC
AC32
AIN0_R_AADC
AC34
AL3
V37
AIN4_L_AADC
AA32
AIN1_L_AADC
AB31
AVSS33_ADAC0
AE34
AR2
U34
AIN5_R_AADC
Y35
AIN2_R_AADC
AB35
AL1
U32
AR0
AE36
AIN5_L_AADC
AA34
AIN2_L_AADC
AD35
AVDD33_ADAC0
AF33
AR3
U36
AIN6_R_AADC
Y37
AIN3_R_AADC
AB37
AVICM
AF35
AR1
V33
AIN6_L_AADC
AA36
AIN3_L_AADC
AC36
AL0
AF37
AVSS33_DIG
AJ30
AVSS33_SIF
AK29
AVDD33_DIG
AK31
AVDD33_SIF
AL30
AF
AM33
MPXN
AN36
MPXP
AN34
ALIN
L32
AOLRCK
M37
AOSDATA3
K31
ASPDIF
K33
AOBCK
L34
AOSDATA4
N32
AOSDATA1
P35
AOSDATA0
L36
AOMCLK
M35
AOSDATA2
P37
C4065
NC/10U 16V
C4065
NC/10U 16V
TP4050TP4050
1
D4050
BAV99
D4050
BAV99
3
1 2
C4058
100N 16V
C4058
100N 16V
R4053
NC/4.7K1/16W
R4053
NC/4.7K1/16W
C4059
100N 16V
C4059
100N 16V
R4055
NC/10K 1/10W
R4055
NC/10K 1/10W
C4060
100N 16V
C4060
100N 16V
Video I/F
MT5363
U401D
Video I/F
MT5363
U401D
AVSS33_CVBS
AR32
AVDD33_CVBS
AN32
SY1
AR34
SC1
AU34
SY0
AP33
SC0
AT33
CVBS2P
AP35
CVBS3P
AT35
CVBS0N
AR36
CVBS1P
AU36
BYPASS0
AM31
CVBS0P
AT37
TUNER_BYPASS
AP37
AVDD33_DEMOD1
AG34
ADCINN_DEMOD
AH35
ADCINP_DEMOD
AH37
AVSS33_DEMOD1
AG36
AVSS33_VDAC
AR30
AVDD33_VDAC
AN30
FS_VDAC
AM29
VDAC_OUT1
AP31
VDAC_OUT2
AT31
HSYNC
AR22
VSYNC
AU22
SOG
AP23
BP
AT23
COM
AR24
GP
AU24
SOY1
AP25
RP
AT25
AVDD12_RGB
AM25
COM1
AR26
Y1P
AU26
PR1P
AP27
PB1P
AT27
AVSS12_RGB
AN26
Y0P
AR28
SOY0
AU28
PB0P
AP29
COM0
AT29
PR0P
AU30
TUNER_DATA
N34
IF_AGC
M31
RF_AGC
M33
TUNER_CLK
N36
FB4060
220R/2000mA
FB4060
220R/2000mA
1 2
C4053
100N 16V
C4053
100N 16V
R4058
0R05 1/10W
R4058
0R05 1/10W
t
TH4050
PTCR
t
TH4050
PTCR
1
2
R4054
NC/4.7K1/16W
R4054
NC/4.7K1/16W
C4061
100N 16V
C4061
100N 16V
R4050
560R 1/10W 1%
R4050
560R 1/10W 1%
C4069
1uF 25V
C4069
1uF 25V
R4056
0R05 1/10W
R4056
0R05 1/10W
D4051
BAV99
D4051
BAV99
3
1 2
R4057
0R05 1/10W
R4057
0R05 1/10W
C4064
NC/10U 16V
C4064
NC/10U 16V
R4059
0R05 1/10W
R4059
0R05 1/10W
1234
CN103
1234
CN103
1
2
3
4
65
C4050
100N 16V
C4050
100N 16V
C4054
100N 16V
C4054
100N 16V
R4063
0R05 1/10W
R4063
0R05 1/10W
FB4057
120R/500mA
FB4057
120R/500mA
1
2
C4056
100N 16V
C4056
100N 16V
C4051
100N 16V
C4051
100N 16V
C4055
100N 16V
C4055
100N 16V
C4062
1uF 25V
C4062
1uF 25V
R4060
0R05 1/10W
R4060
0R05 1/10W
R4052 0R05OHM1/16WR4052 0R05OHM1/16W
C4050 E6
C4051 E7
C4052 A6
C4053 B6
C4054 C6
C4055 B6
C4056 A7
C4057 B7
C4058 B7
C4059 C7
C4060 D6
C4061 D6
C4062 C7
C4063 F4
C4064 G2
C4065 G3
C4066 G4
C4067 A7
C4068 B7
C4069 C5
CN103 F4
D4050 F4
D4051 F3
FB4057 A7
FB4058 B7
FB4060 F4
R4050 D2
R4051 F3
R4052 F3
R4053 G3
R4054 G2
R4055 G4
R4056 A5
R4057 B5
R4058 B5
R4059 B7
R4060 D5
R4061 D5
R4062 E5
R4063 E7
TH4050 G3
TP4050 D3
U105 G3
U401D D3
