Philips VR730/07 - Page 23

BHC400F01091

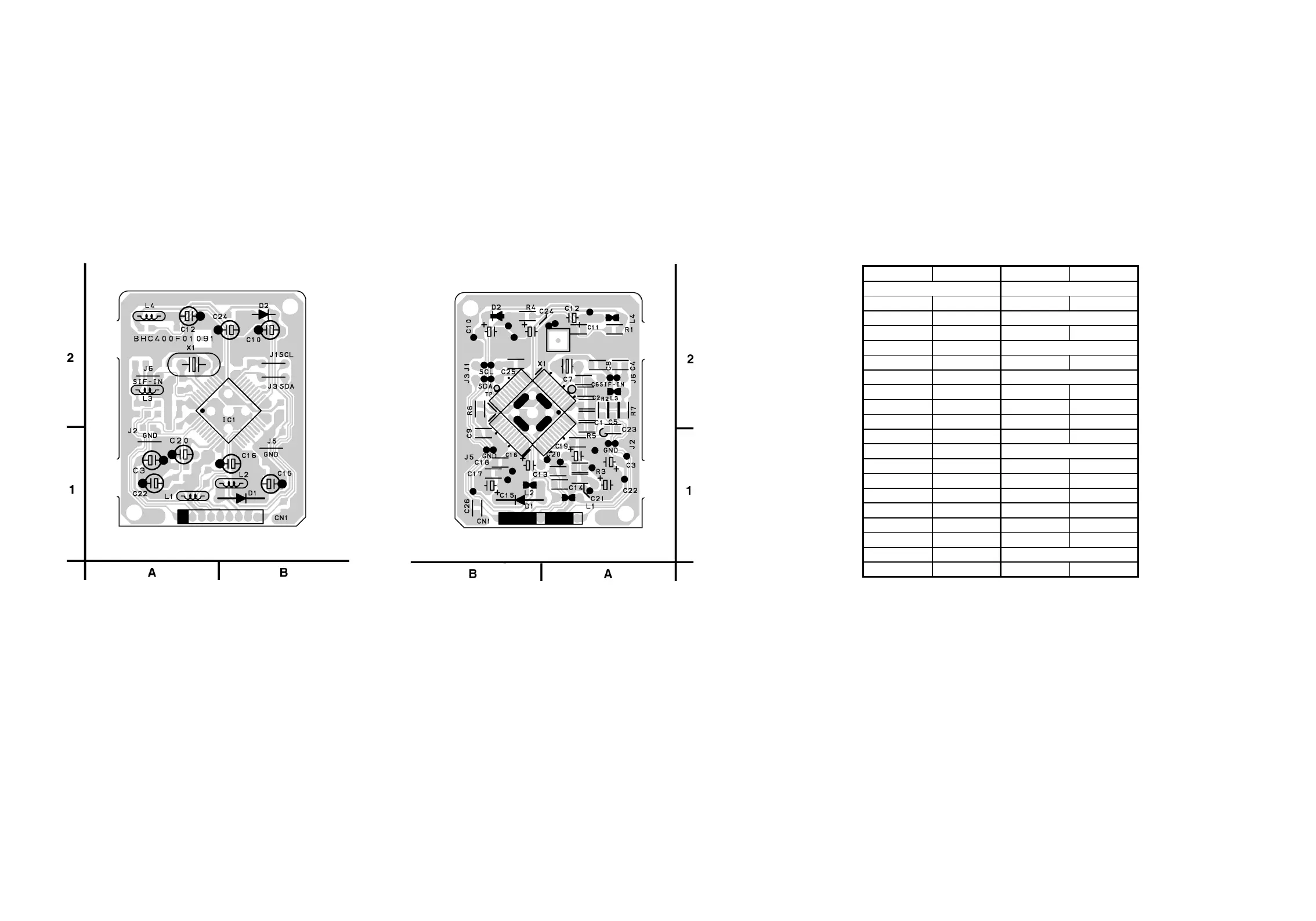

AFV CBA Top View
AFV CBA Bottom View
AFV CBA Parts Location Guide
Ref No. Position Ref No. Position
C1 A-2 CN1 B-1
C4 A-2
C5 A-2 D2 B-2
C6 A-2
C7 A-2 IC1 A-2
C8 A-2
C11 A-2 L1 A-1
C12 A-2 L2 B-1
C13 B-1 L3 A-2
C14 A-1 L4 A-2
C15 B-1
C16 B-1 R1 A-2
C17 B-1 R2 A-2
C19 B-1 R4 B-2
C20 A-1 R5 A-1
C21 A-1 R6 B-2
C22 A-1 R7 A-2
C23 C-1
C24 B-2 X1 B-2
ICS
RESISTORS
CRYSTAL OSCILLATORS
COILS
CAPACITORS CONNECTORS
DIODES
1-10-85
1-10-86
