Philips VR730/07 - Page 22

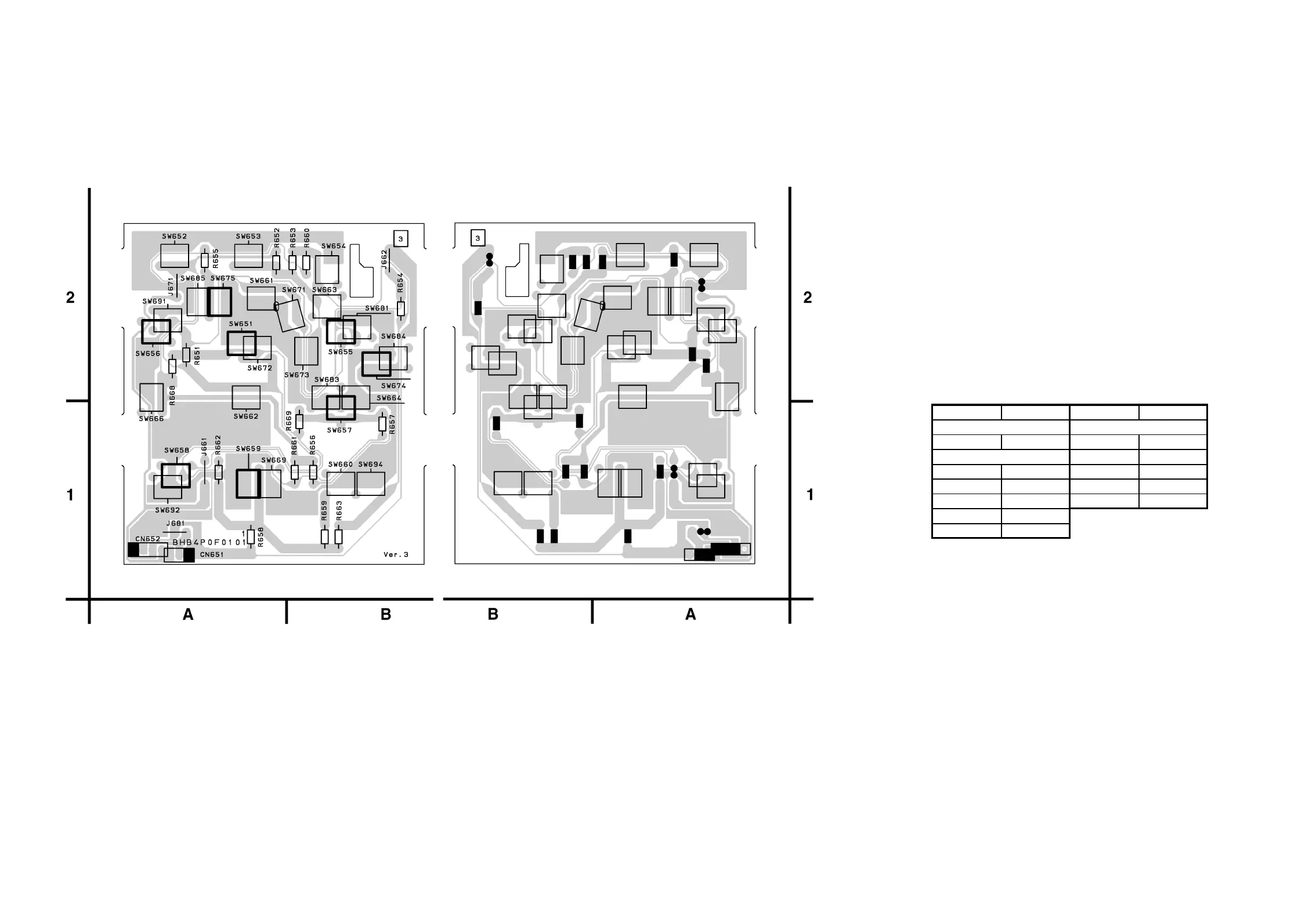

Function CBA Top View
Function CBA Bottom View
1-10-83
1-10-84
BHB4P0F01011
Function CBA Parts Location Guide
Ref No. Position Ref No. Position
CN651 A-1 SW671 A-1
SW672 A-1
R652 A-2 SW673 B-1
R653 A-2 SW674 B-1
R654 A-2 SW675 B-1
R655 A-2
R668 B-2
CONNECTORS SWITCHES
RESISTORS
