2.1.1 Connections

Power

Connect a 24 V DC power source to the power connector.

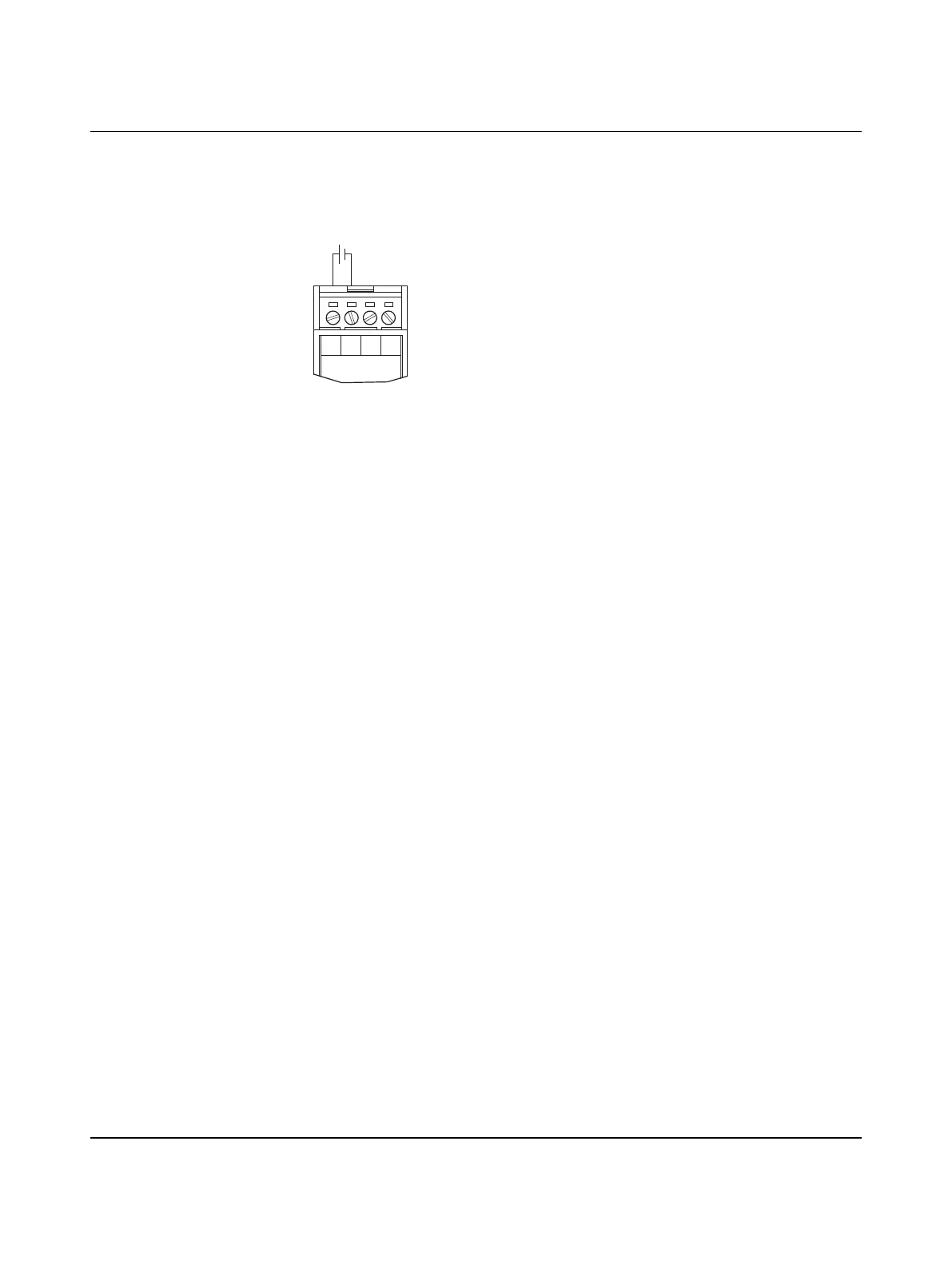

Figure 2-2 Power connection

Ethernet

Connect a CAT5 or better Ethernet cable to the RJ45 port on the GW PL ETH/…BUS and

an Ethernet network (switch). Both crossover (C/O) or 1:1 cables are acceptable, as the

GW PL ETH/…BUS has autocross capability. The cable should not exceed 100 m in length.

24V 0V

+0 V
