35

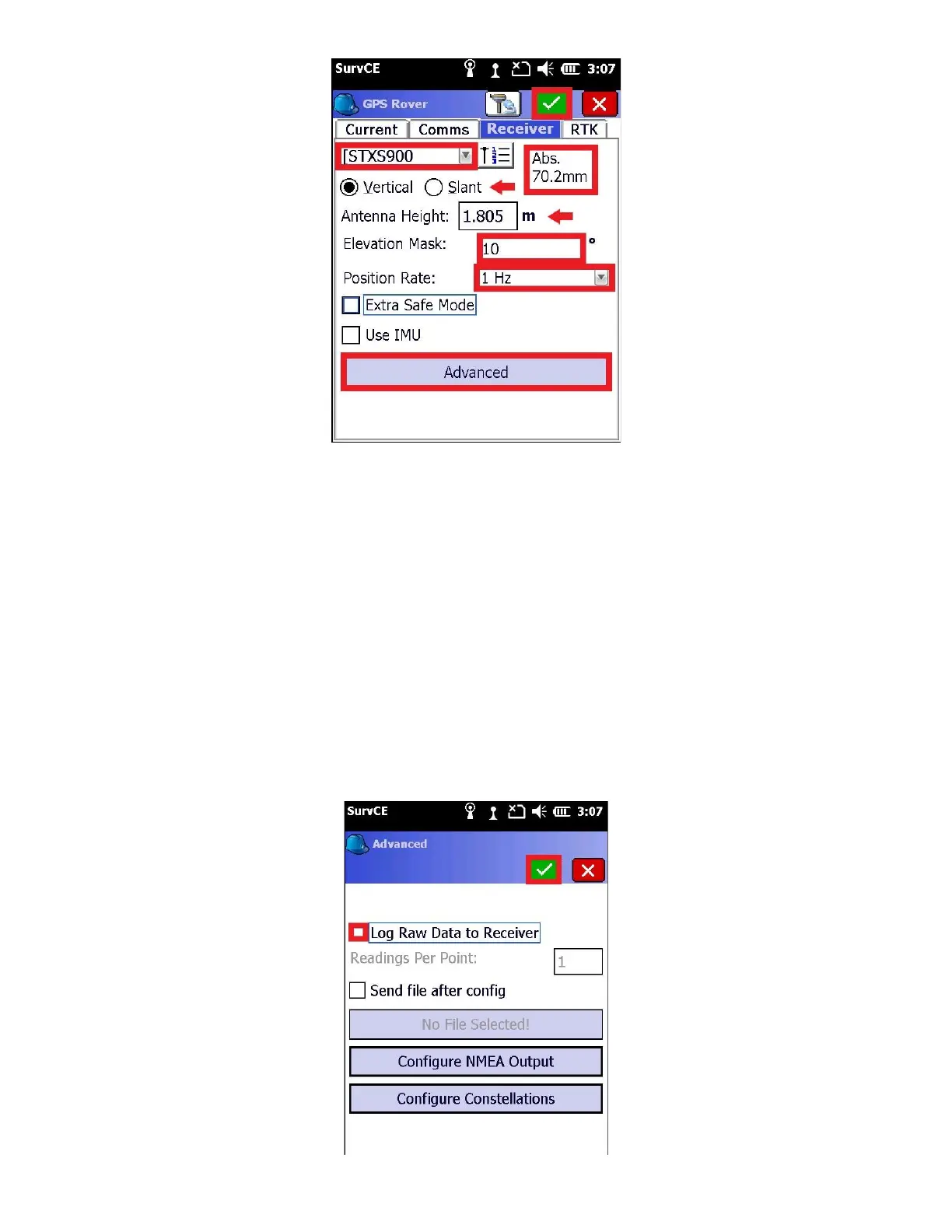

Check to ensure that the correct antenna is selected
● If the base and rover are matched, the antenna type should match. Use Absolute (‘Abs’) offsets unless you
have a good reason to use Relative offsets. If the Rover receiver is mounted on a fixed height pole, select
‘Vertical’ and enter the Antenna Height as the pole height.
● Set the ‘Elevation Mask’ to an appropriate elevation for the conditions at the Rover, typically 5 to 10
degrees.
● Set the Position Rate to 1 Hz
After the above settings have been input correctly , click on the “Advanced” tab
10. Uncheck the box “Log Raw Data to Receiver”
To Next Page
