10 POWER CORD
All
units are shipped with an appropriate plug and cord
for
the required AC voltage. This product is equipped
with
a 3-wire grounding type plug. This is a safety
feature
and should not be defeated. Check the AC
voltage
before connecting the plug.
11 CHASSIS GROUNDING CONNECTING
POIN
T
Please
refer to your local safety code for proper ground-
ing
.
12 OUTPUT CONNECTORS
A pair of versatile binding posts and Speakon connec-
tors
are provided for output connection to each chan-
nel.
Loudspeakers can be easily connected using
banana
plugs, spade lugs, bare wires or Speakon
conn
ector. Spade lugs and bare wires should both be
screwed
down tightly to avoid a short circuit. The
Speakon
connector for channel 1 includes channel 1,
channel
2 and bridged mono pin connecting points. A
pin
out information could be foundbeside the Speakon
conn
ector.

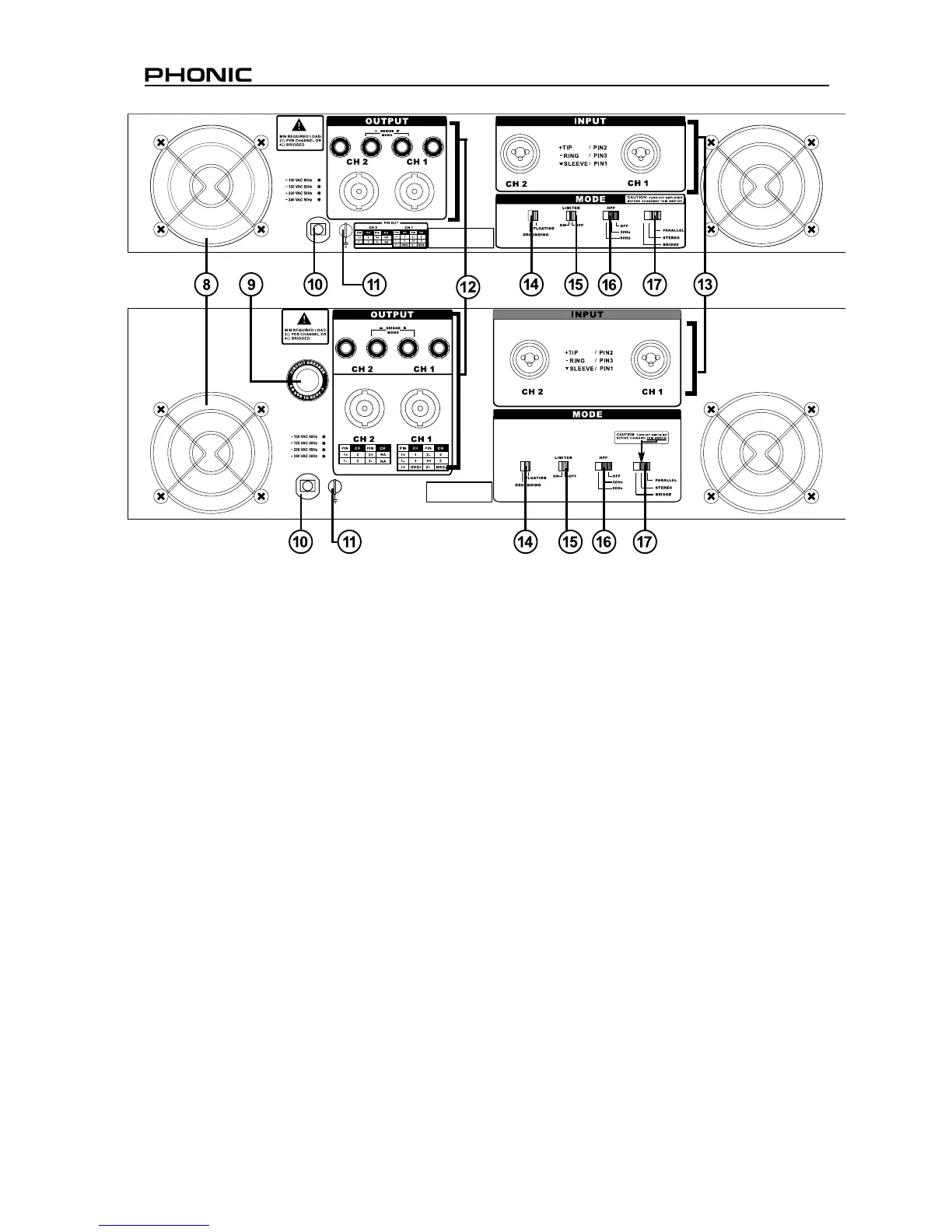

REAR PANEL DESCRIPTION
8 FAN
These
two variable speed fans automatically maintain
safe
internal temperature. Keep the front and rear vents
cl
ear to allow full airflow. Hot air will be drawn out the
back of the amplifier, so it does not stay in the rack,
and
make sure plenty of cool air can enter the rack.
9 RESET BREAKER (XP2000/2100 & XP 3000
/3100
ONLY)
With
rated loads and output levels, the breaker should
only
shut down the amplifier in rare instances of cata-
strophic
failure. The circuit breaker can also shut down
the
amplifier in cases where extremely low-impedance
loads
and high output levels result in a current draw
that
exceeds its rating.
8
XP 600/1000/2000/2100/3000/3100
To Next Page
