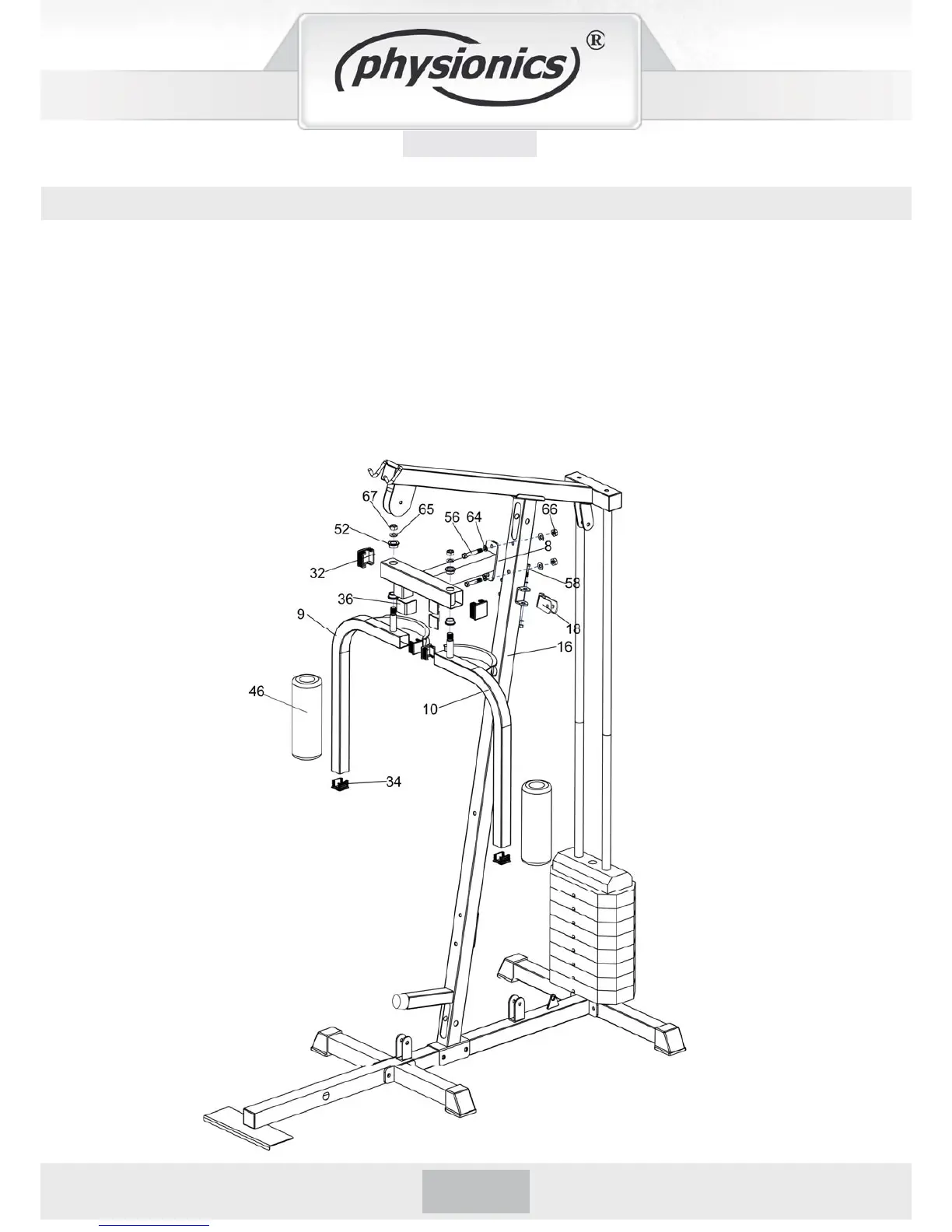

Assembly of the butterfl y arm
1. Attach the connecting part (8) to main frame (up) (16), secured with parts hex bolt (56-2pcs),
washer (64-4pcs) and nylon nut (66-2pcs).
2. Attach butterfl y arm (right)(9)& butterfl y arm (left)(10) to the connecting part (8),secured with
brass color bushing (52-4pcs), washer (65-2pcs) and nylon nut (67-2pcs).
3. Slide butterfl y arm foam pad (49-2pcs) into both sides of the butterfl y arm (right)(9)& butterfl y
arm (left)(10).
4. Attach the Pulley Bracket (18-2pcs) to main frame (up) (16), secured with parts hex bolt (58-2pcs),
washer (64-4pcs) and nylon nut (66-2pcs).
