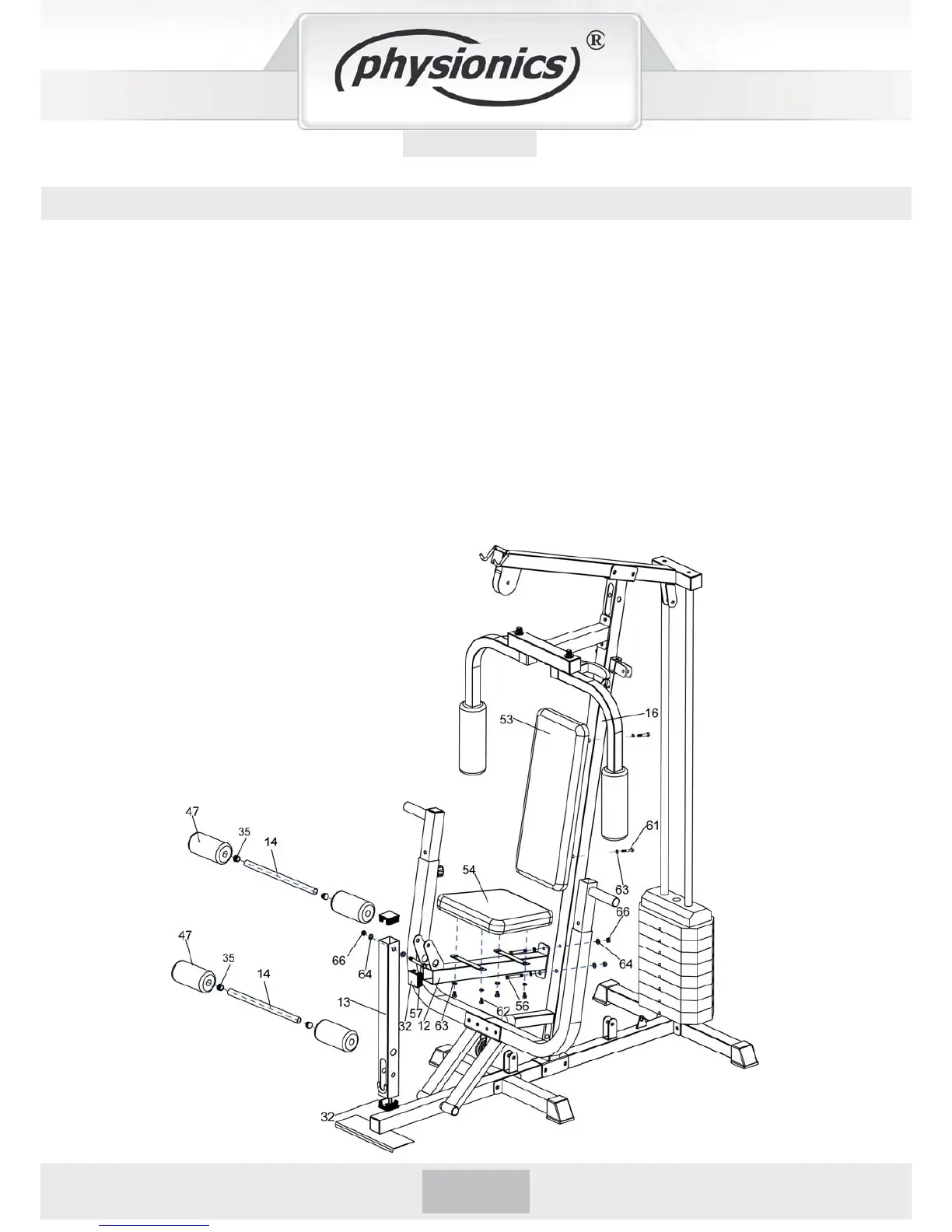

Assembly of the leg curl and backrest
1. Fix the seat beam (12) to the main frame (15), secured with parts hex bolt (56-2pcs),
washer (64-4pcs) and nylon nut (66-2pcs).
2. Attach the leg beam (13) to the seat beam (12), secured with hex bolt (57),washer (64-
2pcs) and nylon nut (66).
3. Put the roller tube (14) into the hole of leg beam (13) then pour a little bit of water onto
the roller tube and then attach leg foam(47-2pcs) on the both sides of the roller tube.
4. Put the roller tube (14) into the hole of seat beam (12) then pour a little bit of water onto
the roller tube and then attach leg foam (47-2pcs) on the both sides of the roller tube.
5. Attach the seat (54) to the seat beam (12), secured with hex bolt (62-4pcs) and washer
(63-4pcs).
6. Attach the backrest(53) to the main frame (16), secured with hex bolt (61-2pcs) and
washer (64-2pcs).
ASSEMBLY INSTRUCTIONS
