Instrument panel key:
A = Reverse gear lever
B = Horn button
C = Turn indicator switch
D = Gear shift knob
E = Clutch lever
F = 12V power socket
G = Instrument panel
H = Throttle grip
I = Windscreen wiper control switch
L = Ignition switch
M = Ignition switch
N = Hand brake lever
O = Brake pedal
06_02
Controls (06_02, 06_03, 06_04, 06_05, 06_06)

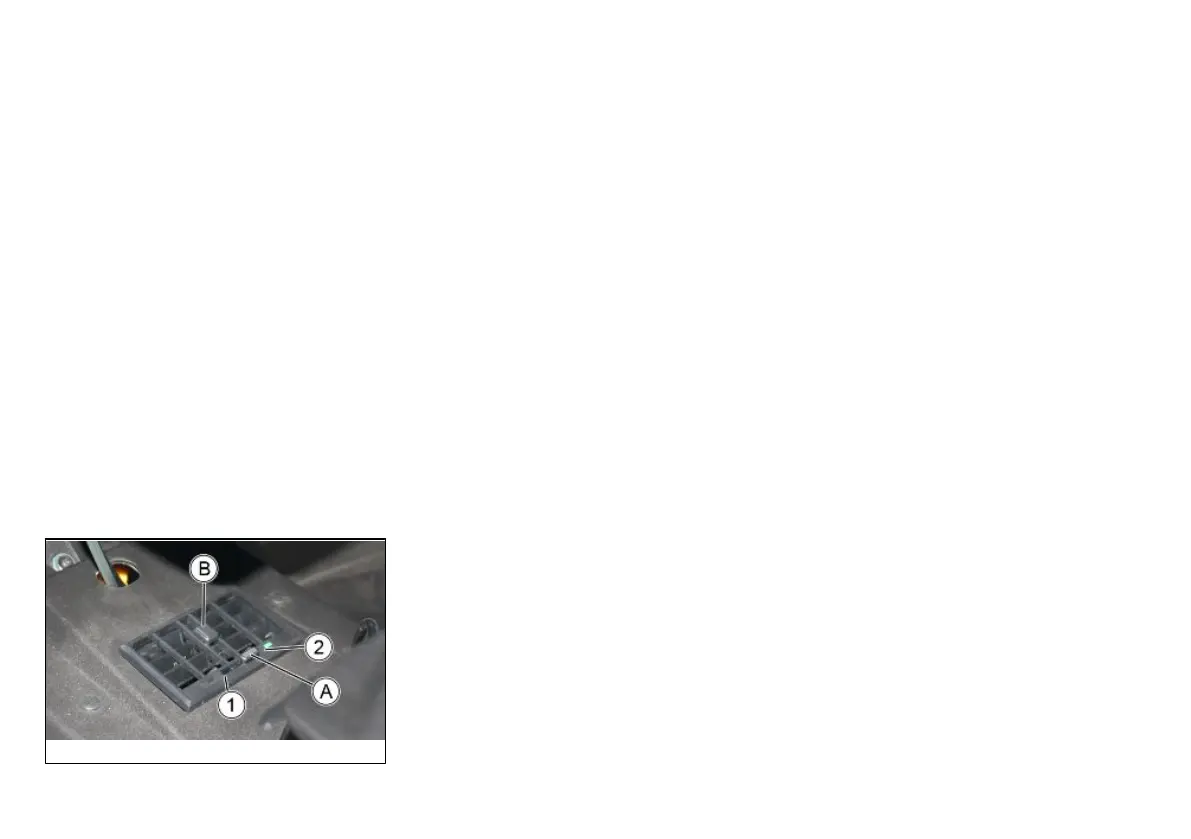

Glass windscreen control/cab ventilation
Cursor «A»:
•
position 1 = Air vents closed (black);
•
position 2 = Air vents open (green).
Cursor «B»: air direction control.
41
5 Instrument panel and controls
