12_23
12_24

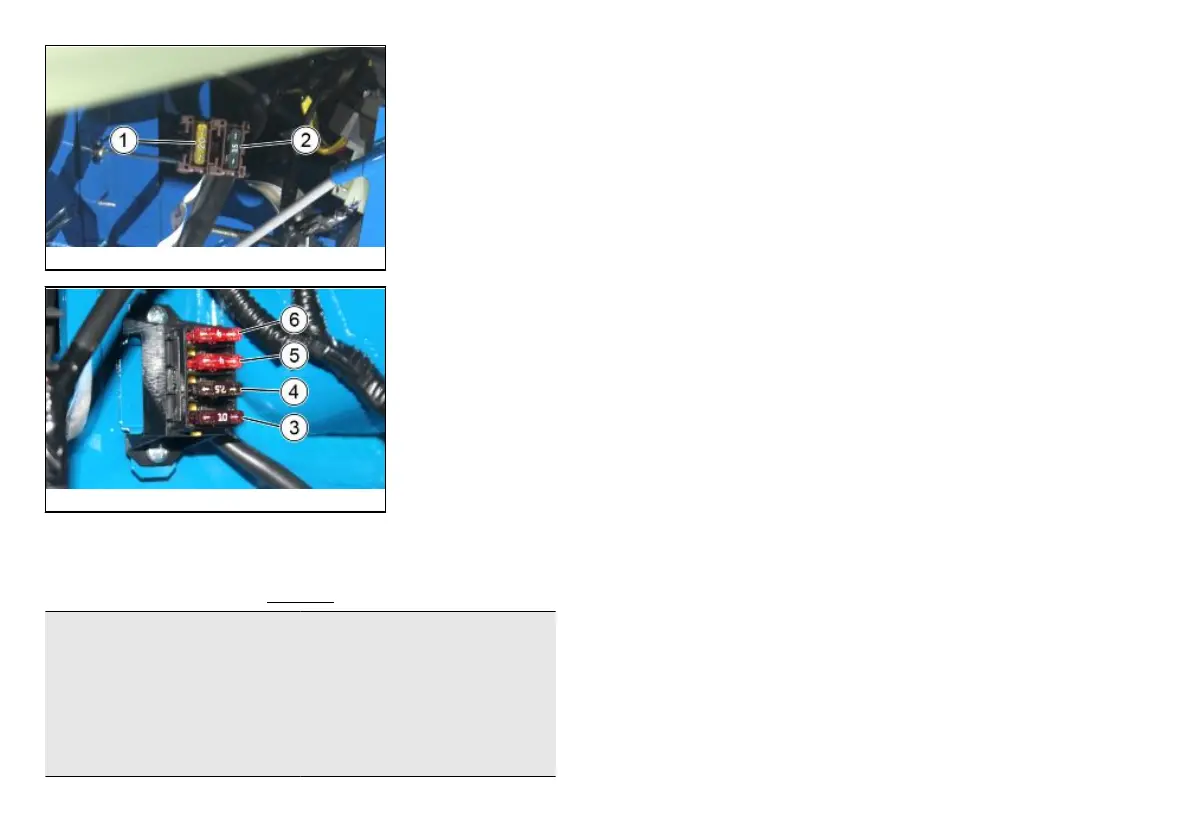

Fuses (12_23, 12_24)
The circuits of the electric system are protected by two main fuses located under the
driver's seat and by four fuses located under the instrument panel, on the left side of
the vehicle.
FUSES
Fuse No. 1 Capacity: 20 A
Power supply input: directly from
the battery.
Protected circuits: voltage
regulator, internal lighting,
cigarette lighter, ignition switch.
83
