Wheel replacement
11_01
11_02

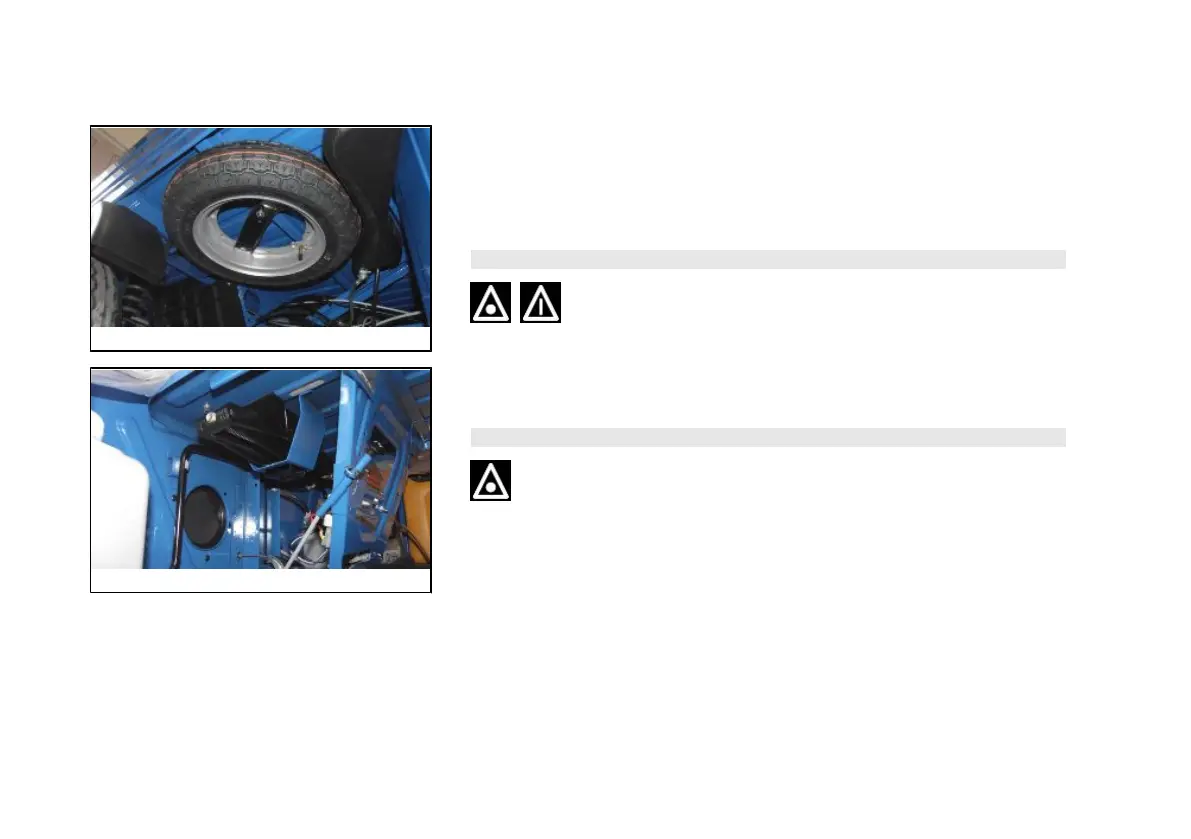

Spare wheel removal (11_01, 11_02)
Spare wheel and jack
The spare wheel is located under the deck on the right side; to release it, loosen the
nut on the support bracket of the same wheel after having removed the cotter pin. The
jack and its rod are placed inside cab under the driver seat.
CAUTION
THE JACK IS INTENDED EXCLUSIVELY FOR REPLACING WHEELS. THE JACK
SHOULD NEVER BE USED TO PERFORM REPAIRS UNDERNEATH THE VEHI-
CLE UNDER ANY CIRCUMSTANCES. THE INCORRECT POSITIONING OF THE
JACK COULD CAUSE THE RAISED VEHICLE TO FALL.
CAUTION
PERIODICALLY CHECK THE TYRE PRESSURE, RESPECTING THE VALUES IN-
DICATED IN THE FOLLOWING SECTION: "MAINTENANCE".
Removing the wheel (11_03, 11_04, 11_05, 11_06, 11_07, 11_08,
11_09, 11_10, 11_11, 11_12, 11_13, 11_14, 11_15, 11_16, 11_17,
11_18, 11_19)
60
