08_03

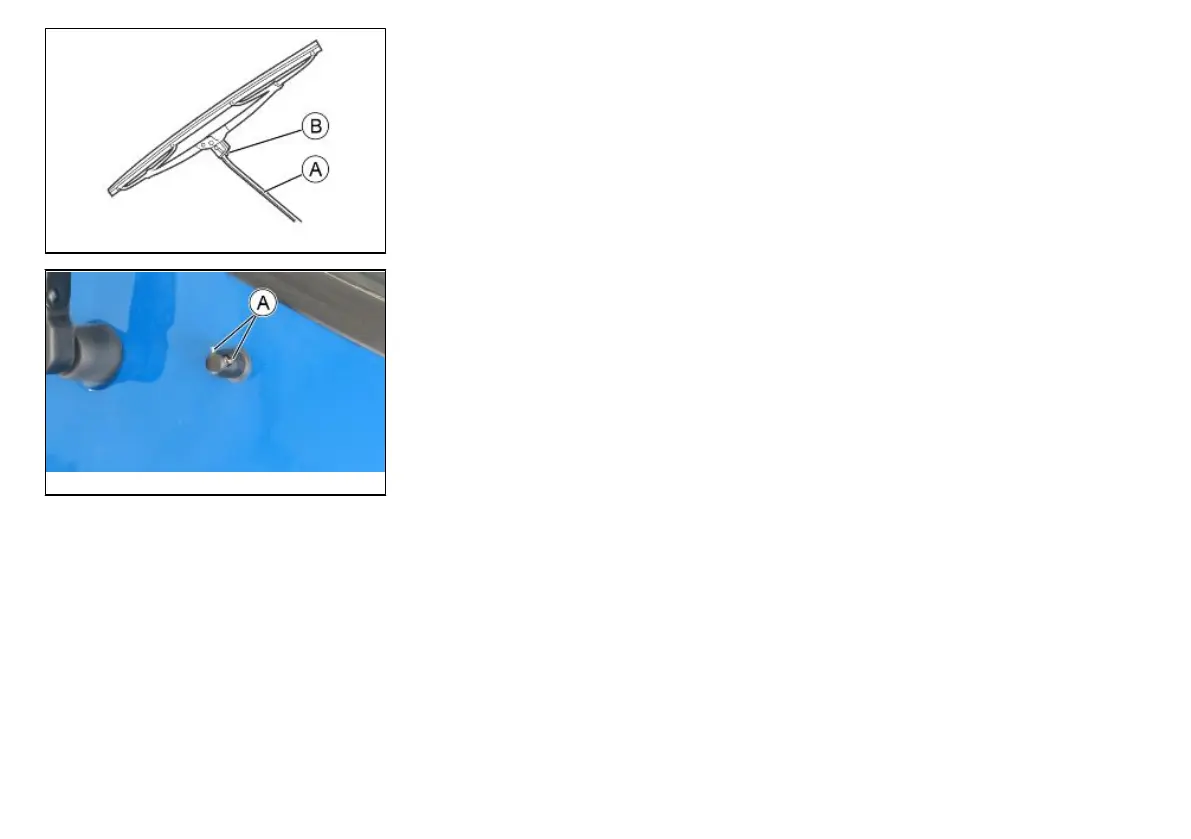

Replace the windscreen wiper blade as follows:
1. Lift the windscreen wiper arm "A" and position the blade so that it forms a
right angle with the arm;
2. Press retainer tab "B" of the latching spring and extract the blade for arm
"A";
3. Fit a new blade. Insert the tab in its seat on the arm. Make sure it is locked.
08_04
Nozzles
•
If there is no jet of fluid, first of all check whether the windscreen washer
reservoir is full.
•
Check whether the holes «A» are clogged. If so, open them with a pin.
•
Direct the windscreen washer nozzles so that the jets are directed towards
the highest position of the blade stroke.
53
7 Mirrors and Window Glasses
