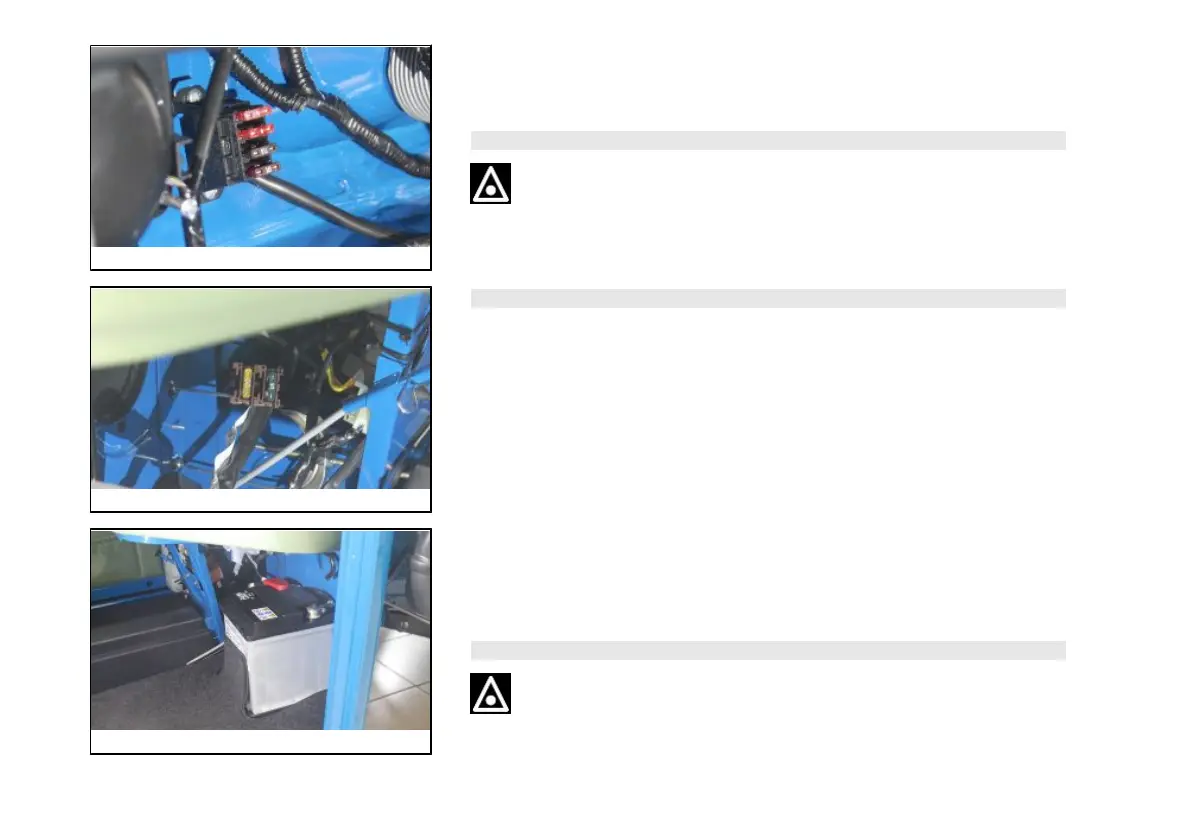

Electrical system (10_01, 10_02, 10_03)
The circuits of the electrical system are protected by fuses placed under the panel on
the vehicle's left side and under the driver's seat.
CAUTION
IN THE EVENT OF ANY ELECTRICAL SYSTEM INTERVENTION, MAKE SURE
THAT THE WIRES OF THE CONTROL UNIT ARE CONNECTED CORRECTLY BY
FOLLOWING THE COLOURS REPORTED ON THE CONTROL UNIT.
N.B.
"CROSS" VEHICLES ARE PREPARED FOR THE INSTALLATION OF A CAR RA-
DIO (SPEAKER PANEL, WIRING OF THE RELATED ANTENNA).
10_03
The electrical system has a battery placed under the seat on the vehicle's right side.
Should the battery be removed from its location in order to be replaced or recharged,
disconnect the negative terminal first and, then, the positive one. Disconnect the elas-
tic belt from the fastening hooks and remove the battery.
CAUTION
NEVER DISCONNECT THE CABLES WHILE THE ENGINE IS RUNNING IN OR-
DER TO AVOID DAMAGING THE ELECTRICAL SYSTEM.
