PIAGGIO MP3 LT 400 i.e. - Front Light Group

Quantity: 2
License plate bulb Type: Incandescent
Power: 12V - 5W
Quantity:2
Front turn indicator bulb Type: Incandescent (BAU 15s)
Power: 12V - 10W
Quantity: 1 RHS + 1 LHS
Front tail light bulb Type: Incandescent (W2.1x9.5d)
Power: 12V - 5W
Quantity: 1
Instrument panel bulb Type: Incandescent
Power: 12V - 2W
Quantity:4

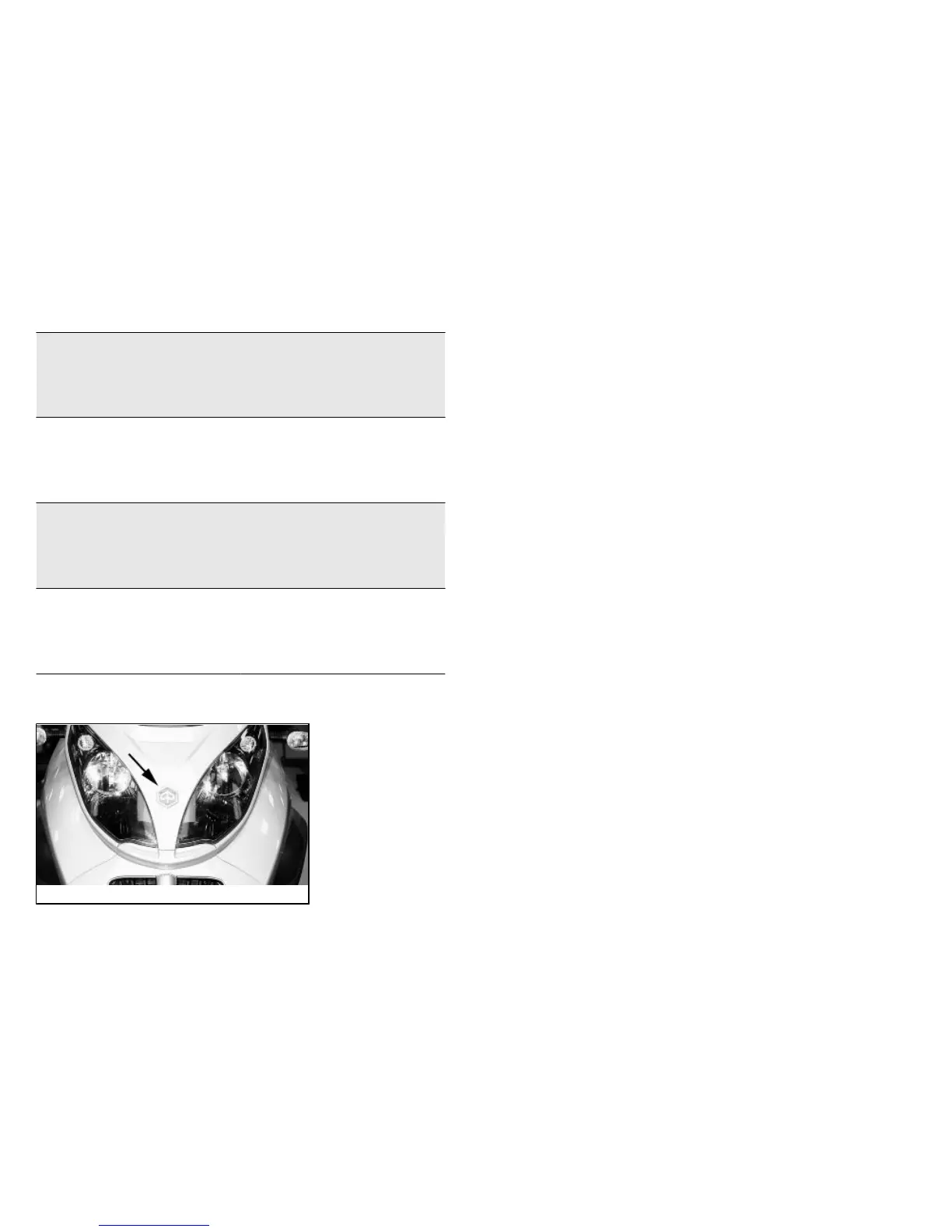

03_28
Front light group (03_28, 03_29, 03_30, 03_31, 03_32, 03_33,
03_34, 03_35, 03_36, 03_37)
To remove the front headlight assembly, proceed as follows:
1. Remove the Piaggio clip-on badge
2. Remove the screw «A» and the headlight assembly central cover
3. Remove the two headlamp upper fixing screws «B»
4. Remove the two grille front fixing screws «C »
5. Remove the two grille surround fastener screws «D »
6. Remove the two screws «E» located under the position light
7. Remove the two screws «F» located inside the front shield
