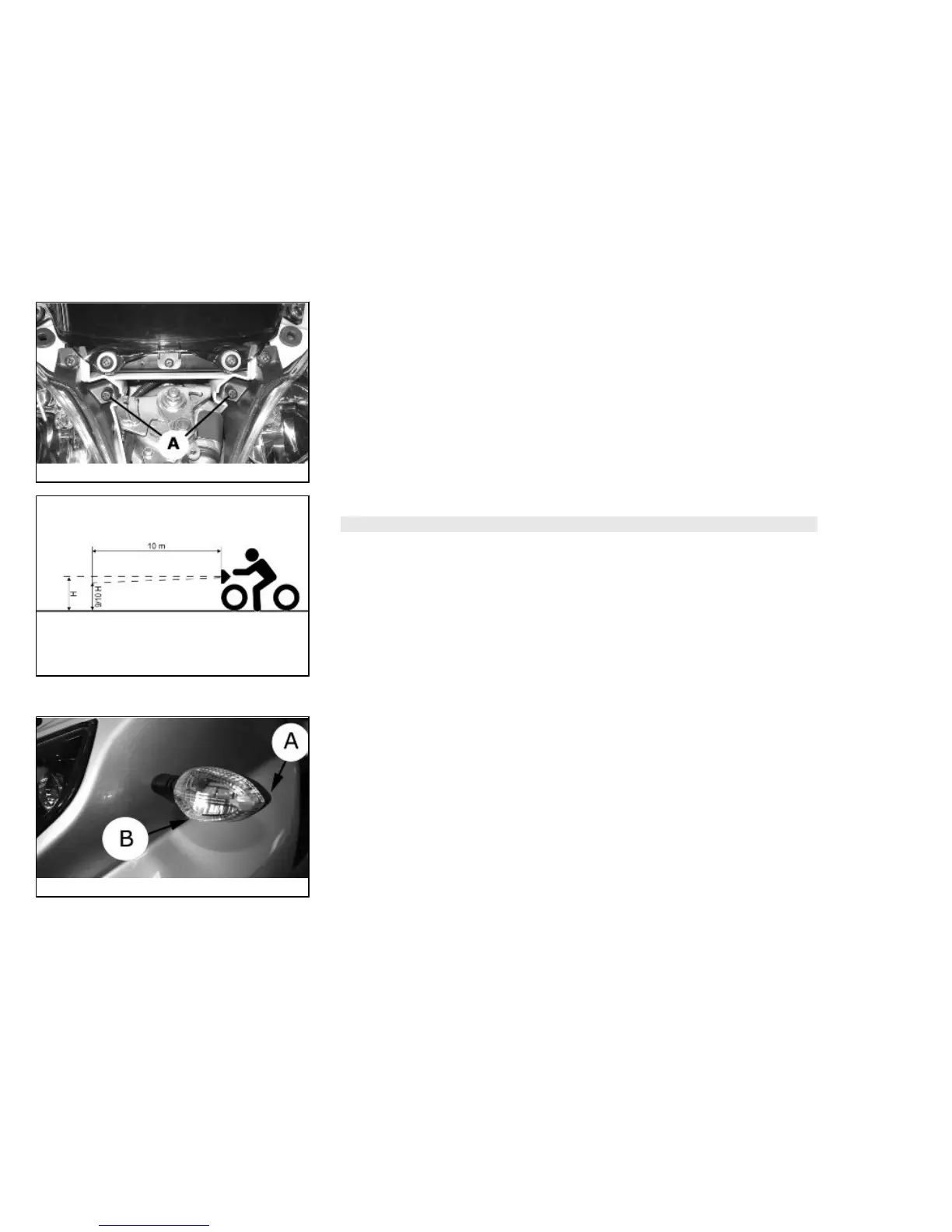

Headlight adjustment (03_38, 03_39)
Proceed as follows:
1. Position the unloaded vehicle, in running order and with the tyres inflated to the
prescribed pressure, on a flat surface 10 m away from a half-lit white screen; ensure
that the longitudinal axis of the vehicle is perpendicular to the screen;
2. Remove the headlight assembly central cover
3. Turn on the headlight and check that the limit of the projected light beam is not over
9/10 or below 7/10 of the distance from the ground to the centre of the vehicle head-
light;
4. Otherwise, adjust the headlight with the screws«A» indicated in the figure
N.B.
THE ABOVE PROCEDURE COMPLIES WITH THE EUROPEAN STANDARDS RE-
GARDING MAXIMUM AND MINIMUM HEIGHT OF LIGHT BEAMS. REFER TO THE
STATUTORY REGULATIONS IN FORCE IN EVERY COUNTRY WHERE THE VE-
HICLE IS USED.
03_40
Front direction indicators (03_40)
To access the bulb, undo the screw «A» and remove the glass «B».
To replace the bulb, hold it and then turn it clockwise.
