Rear optical unit (03_41, 03_42, 03_43, 03_44, 03_45, 03_46,
03_47)

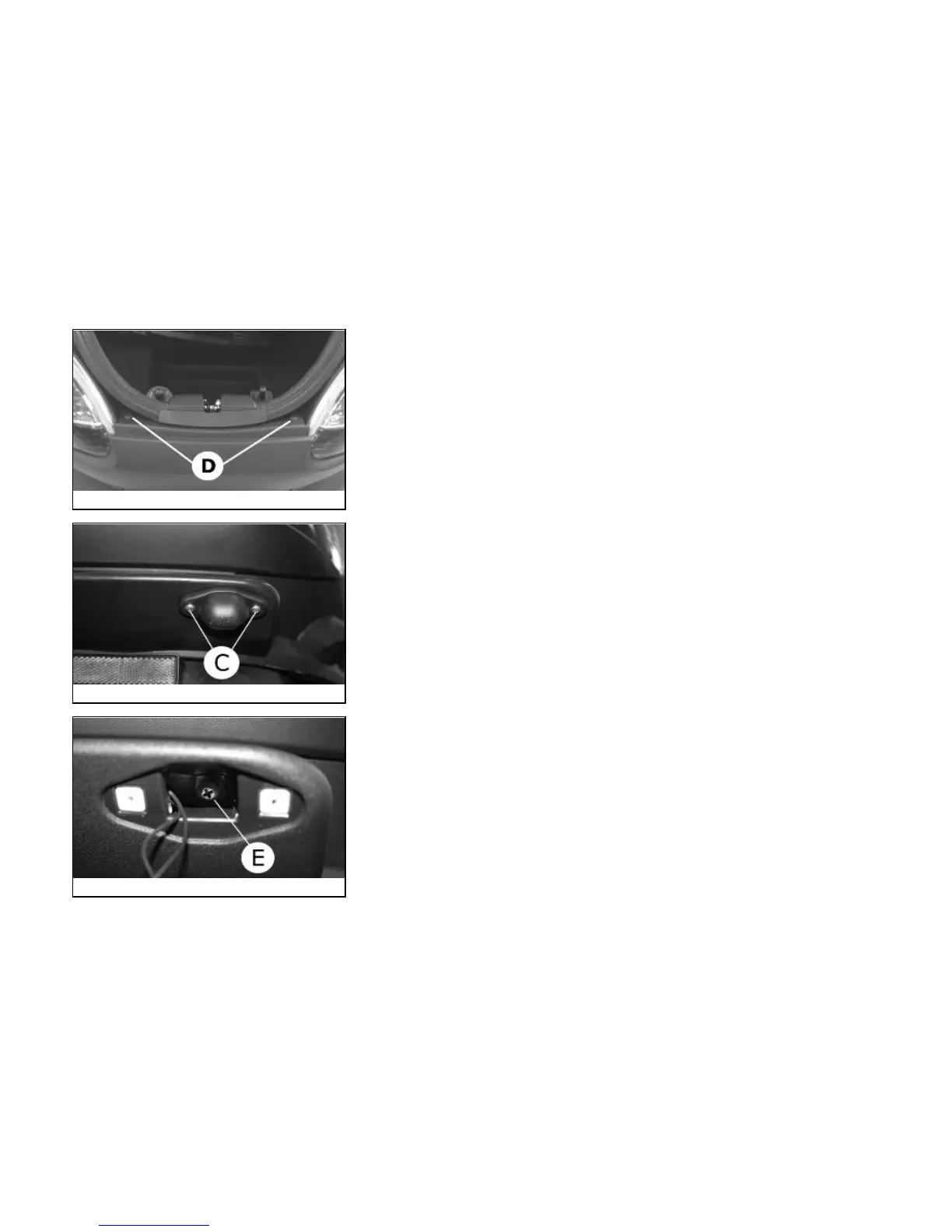

To remove the rear light unit, proceed as follows:
•
open the rear compartment cover and remove the two screws «D»,
•
remove the two license plate light bulb mounts by loosening screws "C"
•
remove the two screws"E" and remove the license plate light mount "F" and
rear cover "G"
•
loosen screw "H" and remove the light unit from its mounting.
Follow this procedure to remove the bulbs:
Remove the snap-on bulbs «B».
Remove the bulbs «A» on the bayonet by turning them 30° clockwise.
