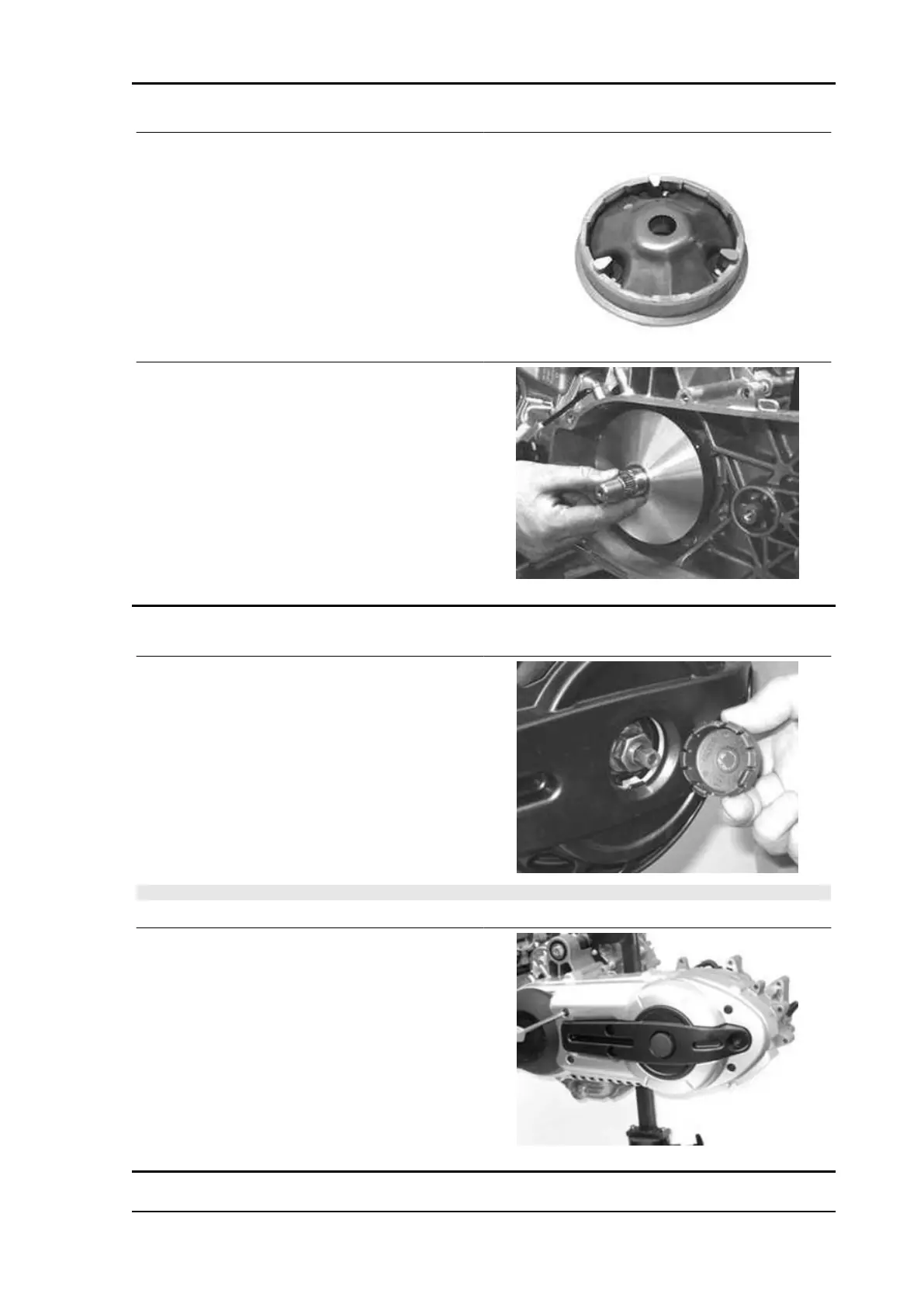

- Assembly the half-pulley with the roller contrast
plate and sliding blocks.
- Insert the half-pulley on the crankshaft.
- Insert the spacer bushing.
Refitting the transmission cover
- Install the driving pulley shaft cover, positioning
the tooth gap on the lower part with the reference
mark on the transmission crankcase.
N.B.
ENSURE THAT THE AIR INTAKE AND EXHAUST OPENINGS ARE COMPLETELY FREE.
- Install the outside plastic transmission cover.
- Tighten the 4 fastening screws to the prescribed
torque.
Locking torques (N*m)
External transmission cover screws 7 ÷ 9
X9 Evolution 500 Engine
ENG - 105
