PIAGGIO X9 Evolution 500 - Removing the Stator

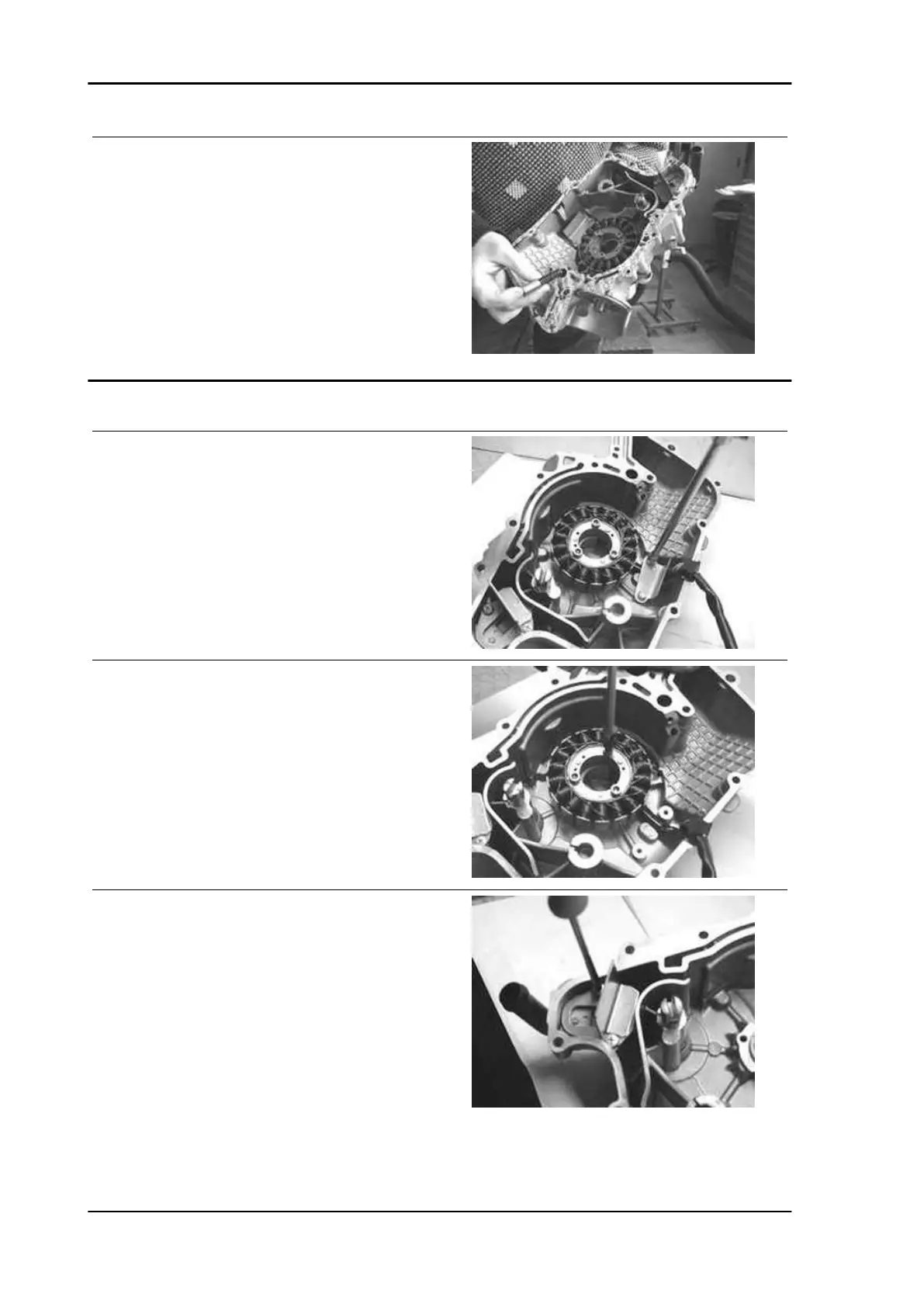

- Remove the by-pass and the relevant spring.
- Remove the oil pump seal.
Removing the stator
- Remove the two retaining screws and the cable
guide bracket.
- Unscrew the 3 fastening screws and remove sta-
tor and its wiring.
- Loosen the two retaining screws and remove the
reed valve support with bulkhead.
Engine X9 Evolution 500
ENG - 116
