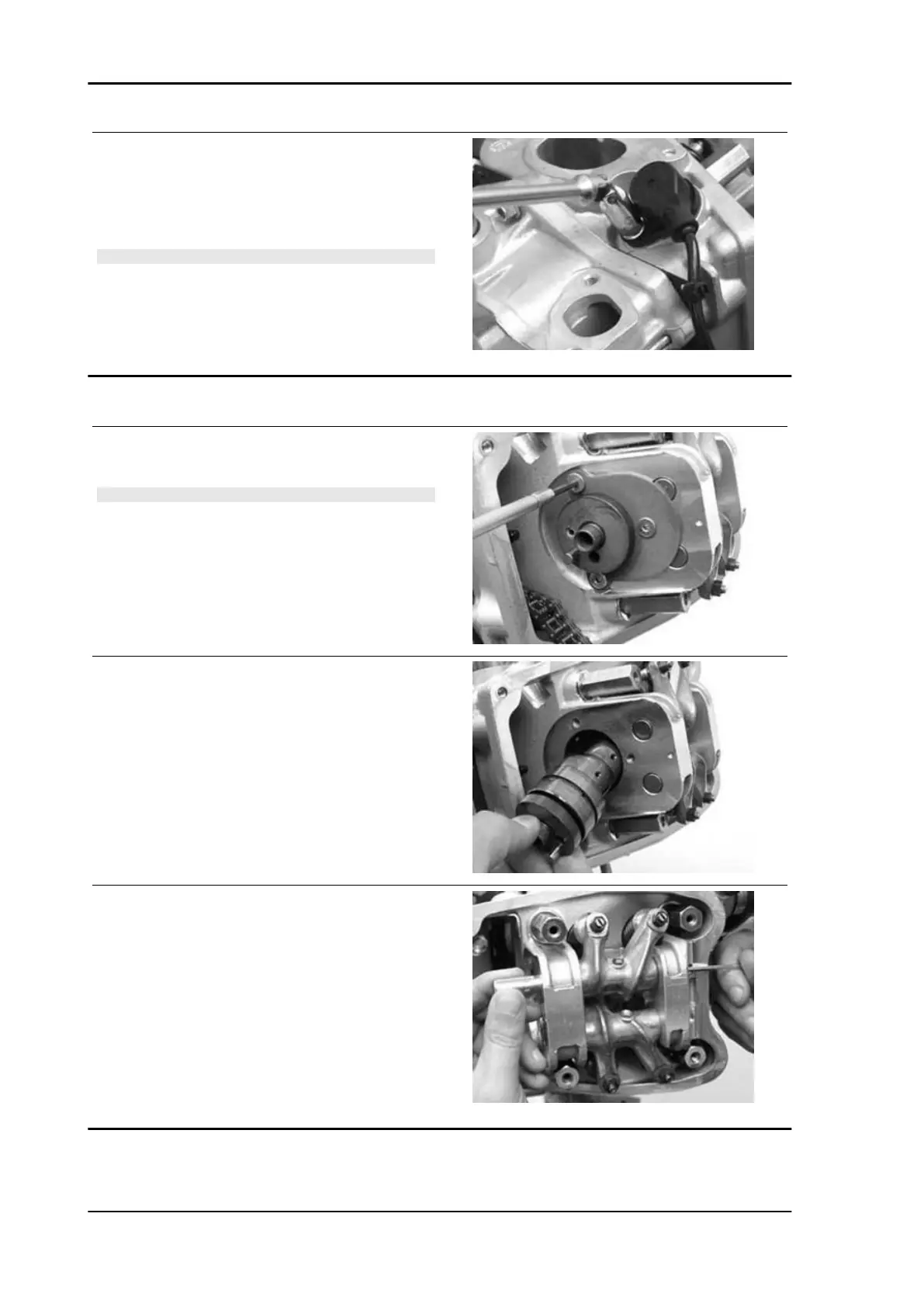

- Remove the engine revolution timing sensor and
relevant O-ring by loosening the fastening screw
and removing the mounting band from the special
hole obtained on the head gasket.
N.B.
TO CHECK THIS COMPONENT, SEE THE INJECTION
CHAPTER.
Removing the cam shaft
- Unscrew the 3 fastening screws and remove
camshaft retaining bracket.
N.B.
REMOVING THE FASTENING SCREWS MAY BE DIFFI-
CULT. BE CAREFUL NOT TO DAMAGE THE INSIDE HEX-
AGON. IF NECESSARY, SEPARATE THE THREADS IN
ADVANCE.
- Remove the cam shaft.
- Remove pins and rocking levers by the transmis-
sion side holes.
Engine X9 Evolution 500
ENG - 142
