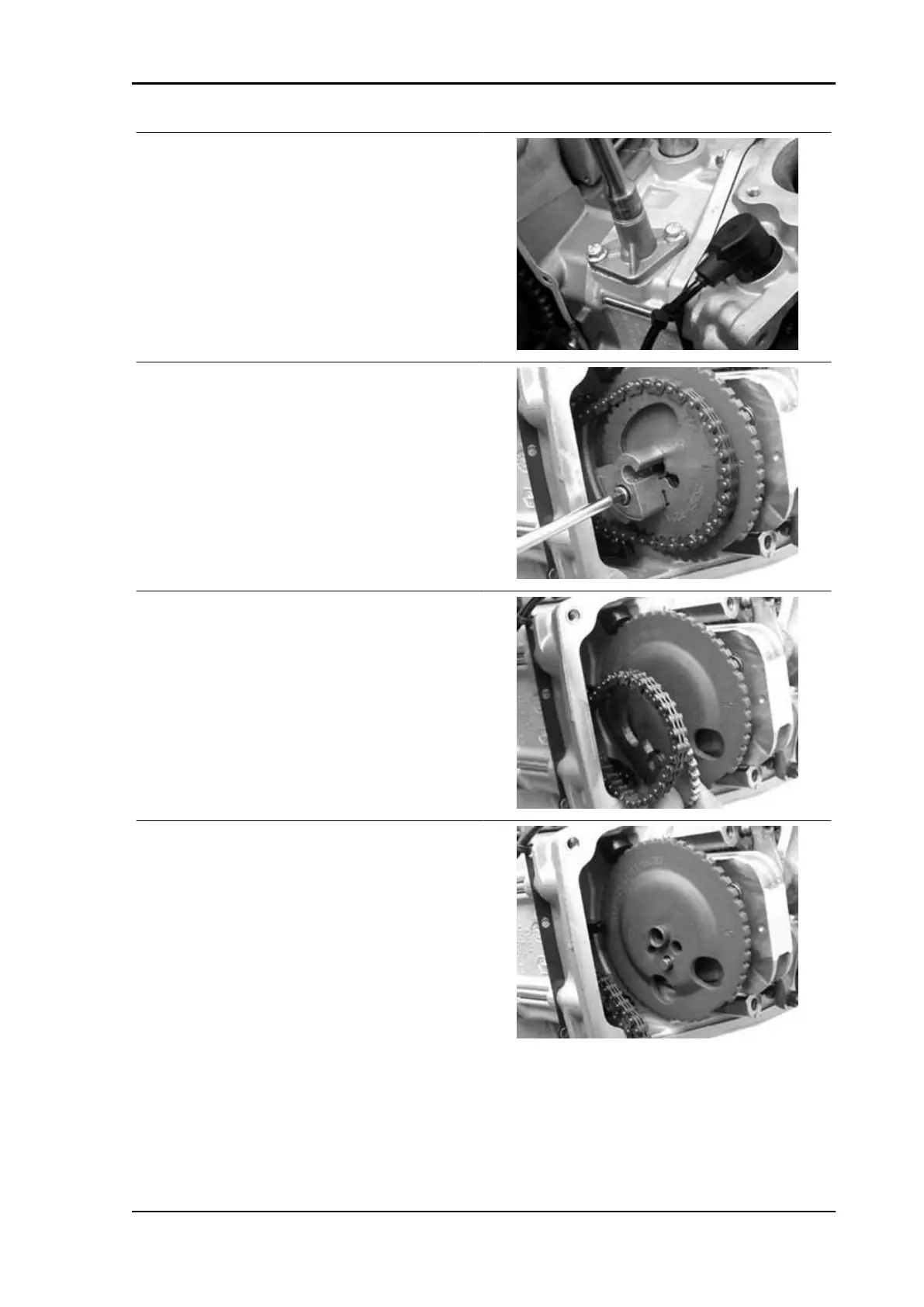

- Loosen the central screw on the tensioner first.
- Unscrew the 2 fastening screws and remove the
tensioner with relevant gasket.
Remove the inside hexagon screw and the coun-
terweight as shown in the figure.
- Remove the timing belt rim from the camshaft.
- Remove the timing belt rim.
- Remove the tone wheel.
X9 Evolution 500 Engine
ENG - 141
