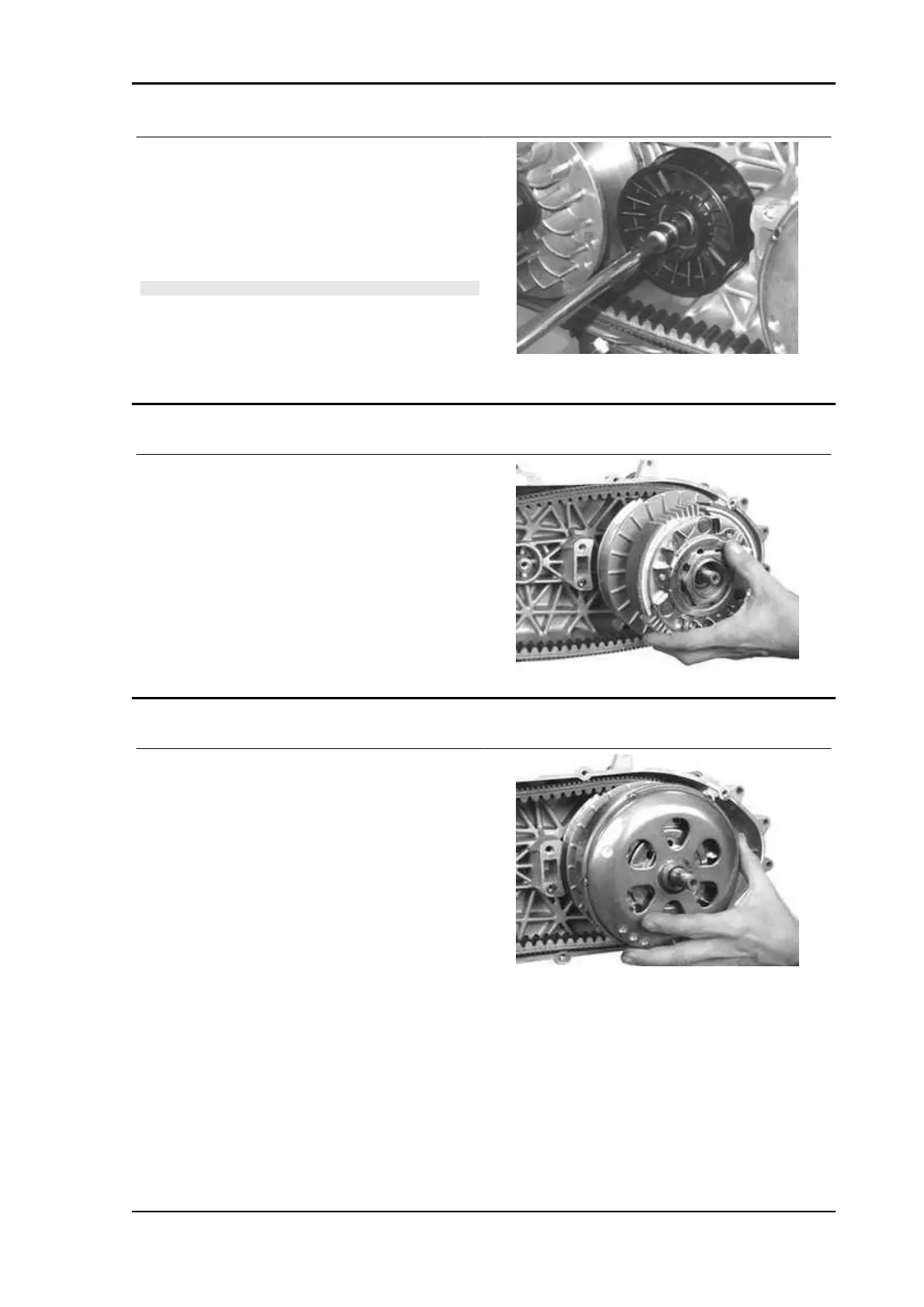

Installation of belt anti-vibration roller
- Install the anti-flapping roller with the lip facing
the engine crankcase.
- Tighten the central screw to the prescribed tor-
que.
N.B.
TURN THE DRIVEN AND/OR DRIVING PULLEY UNTIL A
CORRECT TENSIONING OF THE BELT IS OBTAINED.
Locking torques (N*m)
Anti-vibration roller screw 16.7 ÷ 19.6
Removing the driven pulley
- Remove the driven pulley assembly with the belt.
Inspecting the clutch drum
- Remove the clutch bell.
X9 Evolution 500 Engine
ENG - 93
