PIAGGIO X9 Evolution 500 - Page 92

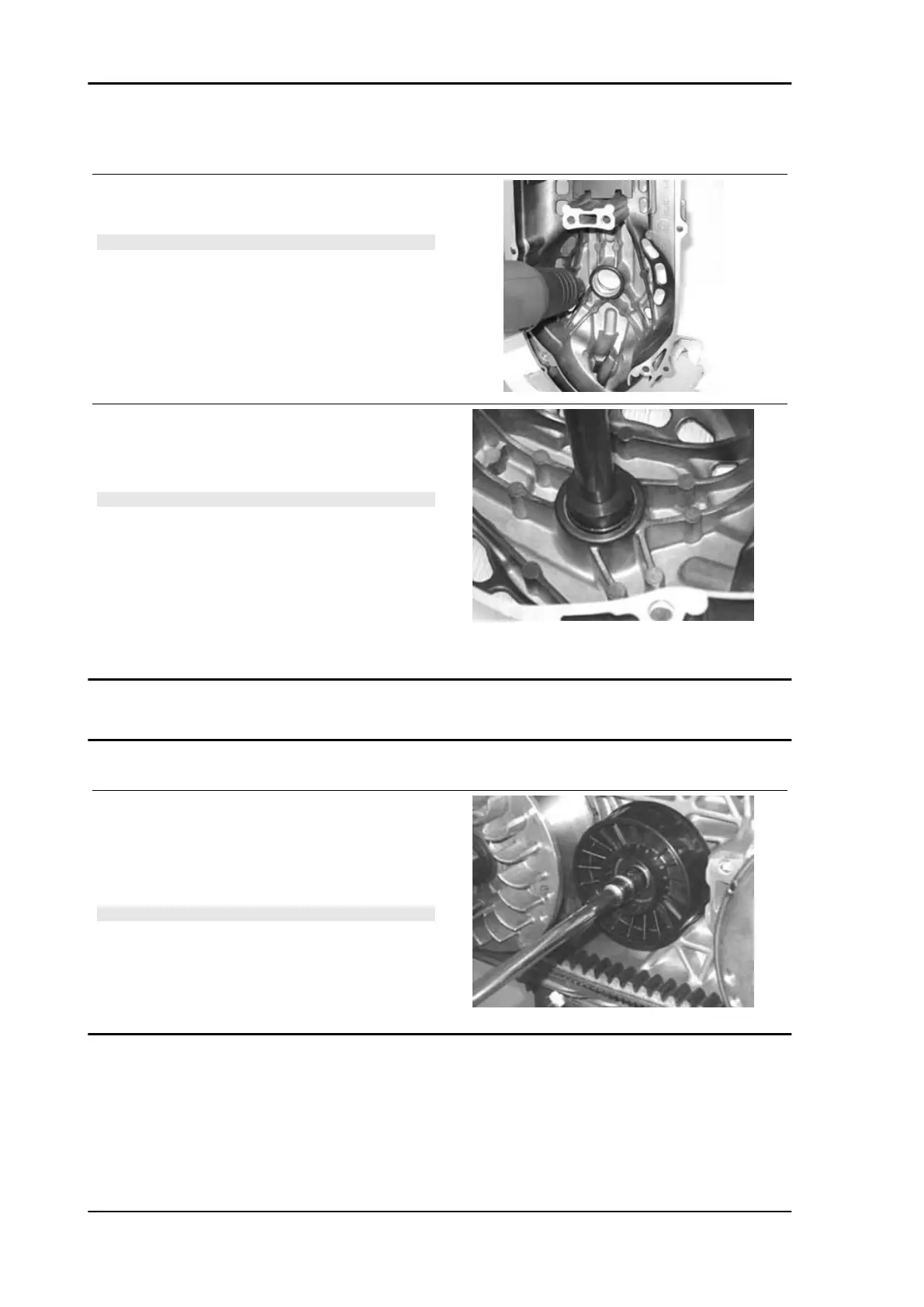

Refitting the driven pulley shaft bearing
- Heat the transmission cover interior using the
heat gun.
N.B.
BE CAREFUL NOT TO OVERHEAT THE COVER AS THIS
WOULD DAMAGE THE OUTSIDE PAINTED SURFACE.
Specific tooling
020151Y Air heater
- Place the bearing onto the special tool with a little
grease to prevent it from coming out.
- Install the new bearing using the special tool.
N.B.
PROPERLY SUPPORT THE OUTSIDE COVER TO PRE-
VENT DAMAGING THE PAINTED SURFACE.
Specific tooling
020376Y Adaptor handle
020358Y 37x40-mm adaptor
020439Y 17 mm guide
Baffle roller
Plastic roller
- Check that the roller does not show signs of wear
and that it turns freely.
- Loosen the retaining bolt using a 13 mm spanner.
- Remove the complete roller with bearing.
N.B.
IF THE ROLLER DOES NOT ROTATE FREELY, REPLACE
THE COMPLETE ROLLER.
Engine X9 Evolution 500
ENG - 92
