This section describes the operations to be carried
out on the engine and the tools to be used.
Automatic transmission
Transmission cover

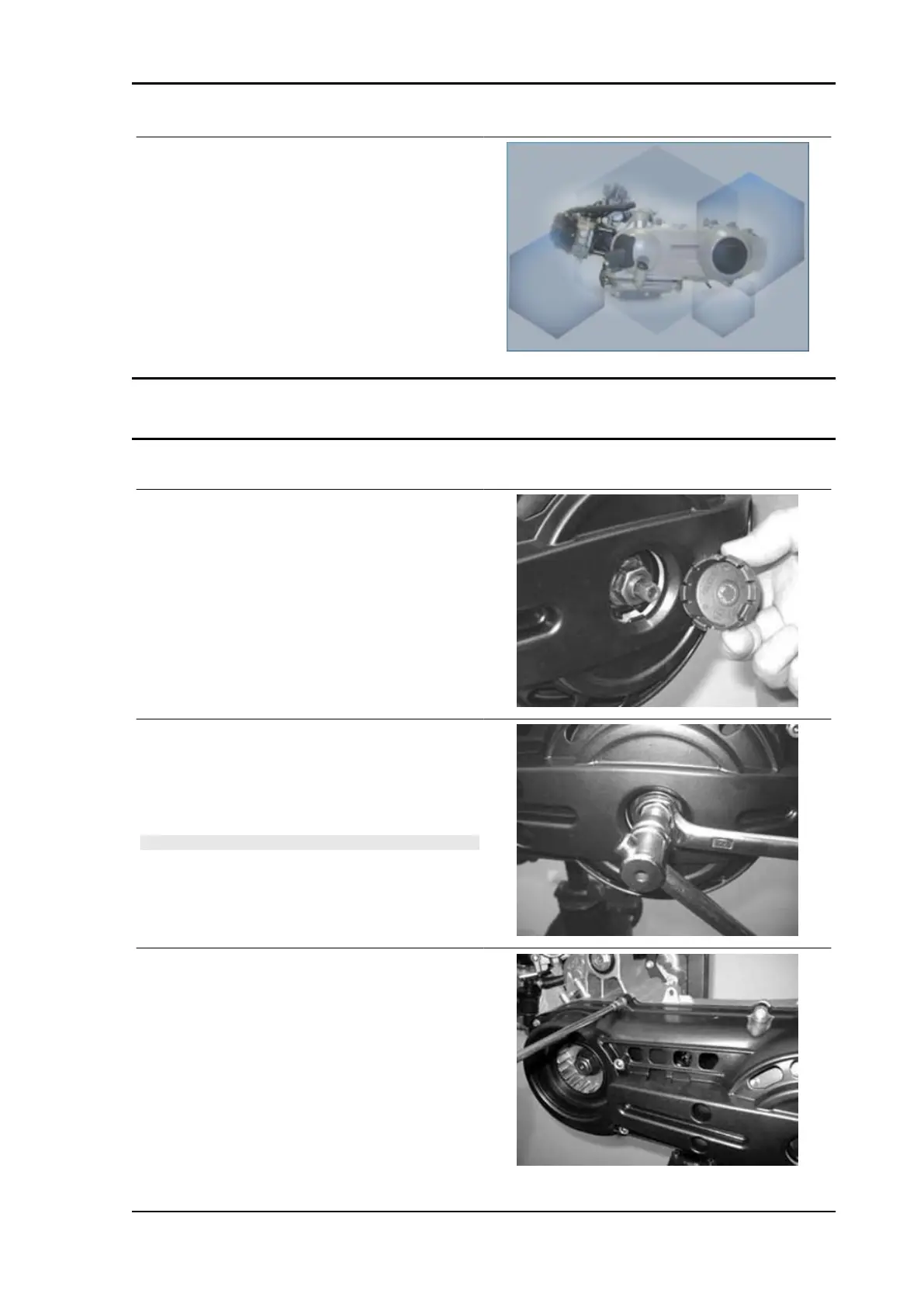

- Using a screwdriver, remove the driven pulley
axle cover near the bottom of the cap.
- Loosen the driven pulley shaft fastening nut using
a misaligned wrench and prevent the pulley shaft
rotation using a machine hexagon bush.
- Remove the nut and the two washers.
N.B.
DUE TO THE HIGH TIGHTENING TORQUE, USING DIFFER-
ENT WRENCHES - SUCH AS A CONVENTIONAL POLYG-
ONAL BUSH - MAY DAMAGE THE HEXAGON OBTAINED
ON THE SHAFT OR BREAK THE BUSH ITSELF.
- Remove the six M6 screws.
X9 Evolution 500 Engine
ENG - 89
